Tractor · 2010Unverified

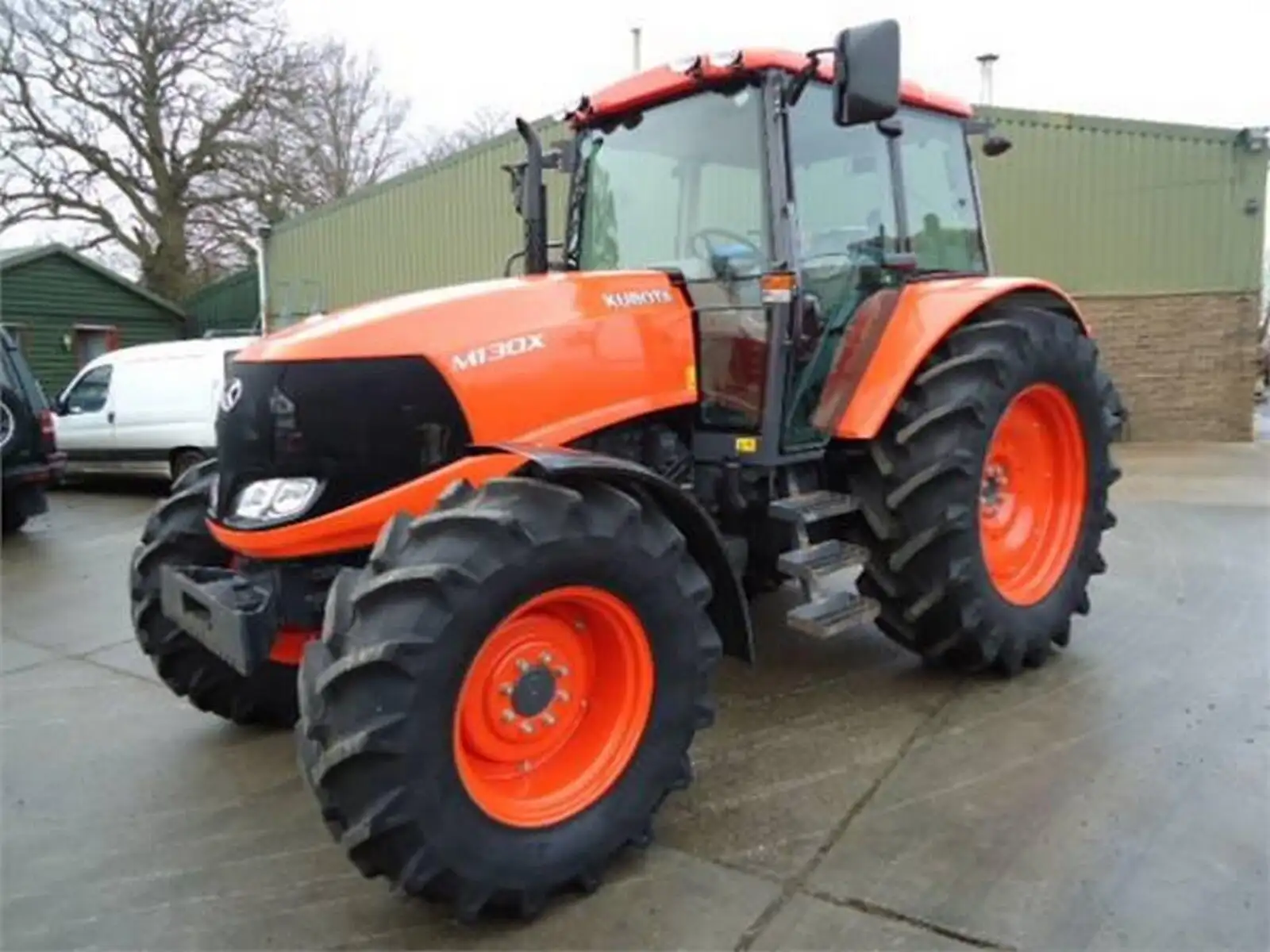

Kubota M130X

Name: Kubota M130X
Brand: Kubota

Kubota M130X — Utility tractor · 130 hp. Reference specifications; pending source verification.

The Kubota M130X is a tractor with a power rating of 130 hp, categorising it among the more powerful machines in its class. Manufactured in 2010, it features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight of the tractor is 4389 kg, and it is designed for use on areas of around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

130 hp

Max power

130 hp

Weight

4389 kg

Catalogue coverage

Variants represented

Richest spec table

86 rows

Recorded power

130 hp

Recorded weight

4389 kg

Transmissions

16-speed 8-speed power shift

Production years

2010-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Differential lockhydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Kubota 6.1L 4-cyl dieselReference

Fuel tank190.0 LReference

Engine (net)96.9 kWReference

Kubota V6108Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke118 x 140 mmReference

Power (net)96.9 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdry elementReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.65x5.51 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed 8-speed power shiftReference

24-speed creeperReference

Type8-speed power shiftReference

Gears16 forward and reverseReference

Clutchhydraulic wet discReference

Eight power shift gears in two ranges.Reference

TypecreeperReference

Gears24 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionspower shift - 16F and 16R | creeper - 24F and 24RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)84.3 kWReference

Valves2 to 4Reference

Pump flow76.8 lpmReference

Rear TypeIIReference

Controlposition and lower-link draft controlReference

Rear lift (at ends)5800 kgReference

Rear lift (at 24"/610mm)4900 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase268 cmReference

Weight4389 kgReference

Length439 cmReference

Width217 cmReference

Height275 cmReference

Ground clearance51 cmReference

Front tread166 to 177 cmReference

Rear tread166 to 175 cmReference

4389 kgReference

Max front axle3580 kgReference

Max rear axle6280 kgReference

Kubota M130X attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps80Reference

Battery volts12Reference

Capacities

Max capacity9200 kgReference

Capacity373.7 ciReference

General

Make & ModelKubotaReference

SCV controlJoystickReference

Power

Max Power130 hpReference

PTO

PTO Power113 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Remote Valves2 to 4 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity5,800.1 kgReference

Rear Hitch Sensing Typeposition and lower-link draft controlReference

Dimensions & weight

Overall Height275.1 cmReference

Overall Length439.9 cmReference

Overall Width217.4 cmReference

Overall weight4,389.9 kgReference

Wheels & tyres

Rear wheel tread range65.4 to 69.1 inchesReference

Front Wheel tread range65.4 to 69.7 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
