Tractor · 2009Unverified

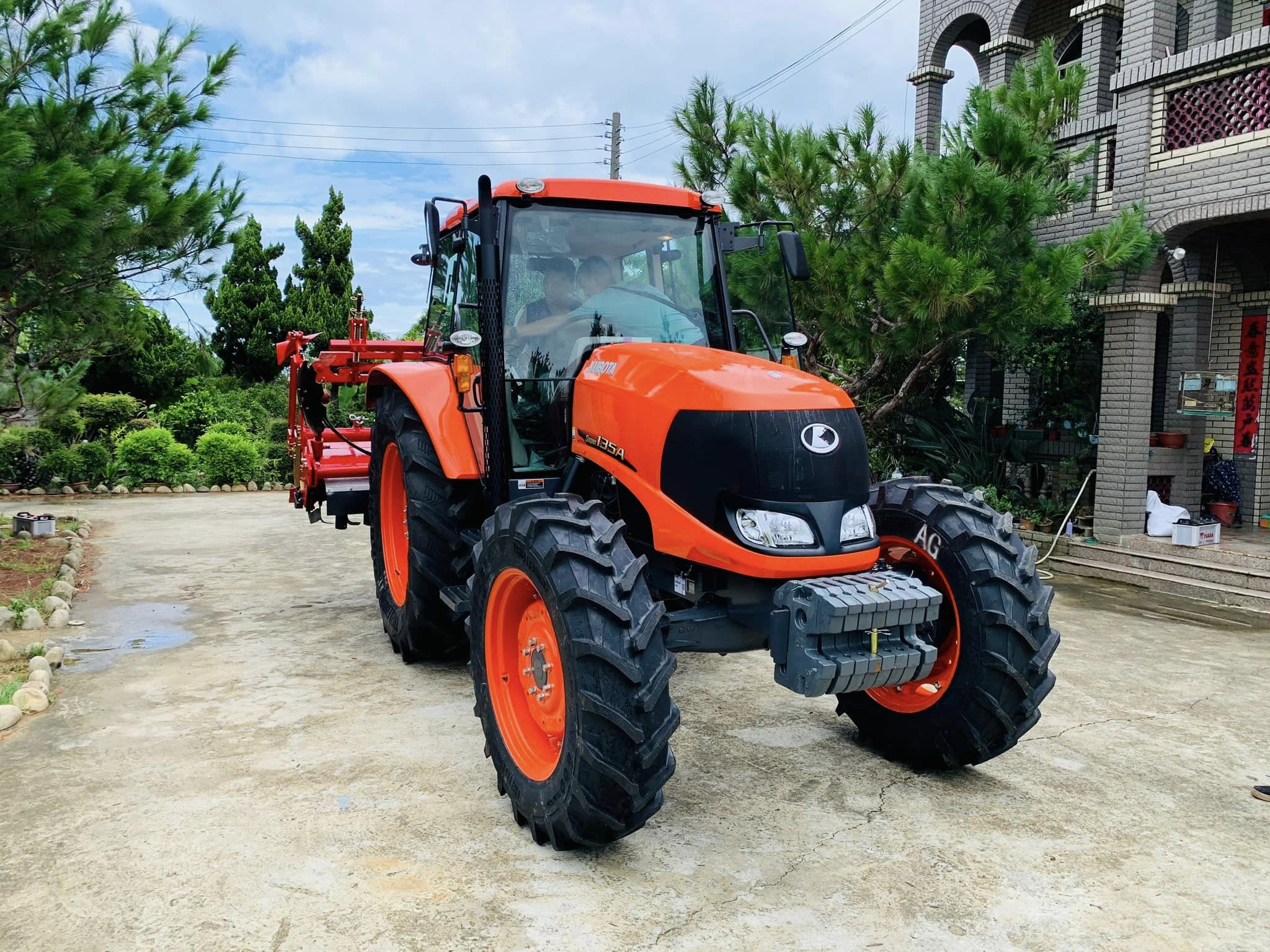

Kubota M135A

Name: Kubota M135A
Brand: Kubota

Kubota M135A — Grandom A Series · 133 hp. Reference specifications; pending source verification.

The Kubota M135A is a tractor with a rated output of 133 hp, categorising it among the higher-powered machines in its class. It was produced from 2009 to 2013. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive via a powershift transmission. Its listed weight is 4419 kg, and it is suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

133 hp

Max power

133.2 hp

Weight

4419 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

133 hp

Recorded weight

4419 kg

Transmissions

16-speed power shift

Production years

2009-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Kubota 6.1L 4-cyl dieselReference

Fuel tank190.0 LReference

Engine99.3 kWReference

Kubota V6108-TIReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke118 x 140 mmReference

Power99.3 kWReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.65x5.51 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed power shiftReference

Typepower shiftReference

Gears16 forward and reverseReference

Eight power-shift gears in two ranges with shuttle.Reference

Transmission TypePowershiftReference

forward and reverse optionsPower Shift : 16 F and 16 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIIReference

Controlposition and electronic draft controlReference

Rear lift5800 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1994Reference

Engine RPM1000@2050Reference

Dimensions

Wheelbase268 cmReference

Weight4419 kgReference

Front tire420/70R24Reference

Rear tire520/70R38Reference

Standard tires (ag)Front: 420/70R24. Rear: 520/70R38Reference

Length438 cmReference

Width225 cmReference

Height273 cmReference

Ground clearance46 cmReference

Front tread175/184 cmReference

Rear tread172 to 205 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelKubotaReference

Capacities

Capacity373.7 ciReference

Power

Max Power133.2 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@2,050 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typePowerReference

Hydraulics

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity5,800.1 kgReference

Rear Hitch Sensing Typeposition and electronic draft controlReference

Dimensions & weight

Overall Height273.1 cmReference

Overall Length438.9 cmReference

Overall Width225 cmReference

Overall weight4,419.8 kgReference

Wheels & tyres

Rear Wheel Type520/70R38Reference

Rear wheel tread range68.1 to 81.1 inchesReference

Front Wheel Type420/70R24.Reference

Front Wheel tread range68.9/72.8 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with air-conditioning.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
