Tractor · 2014Unverified

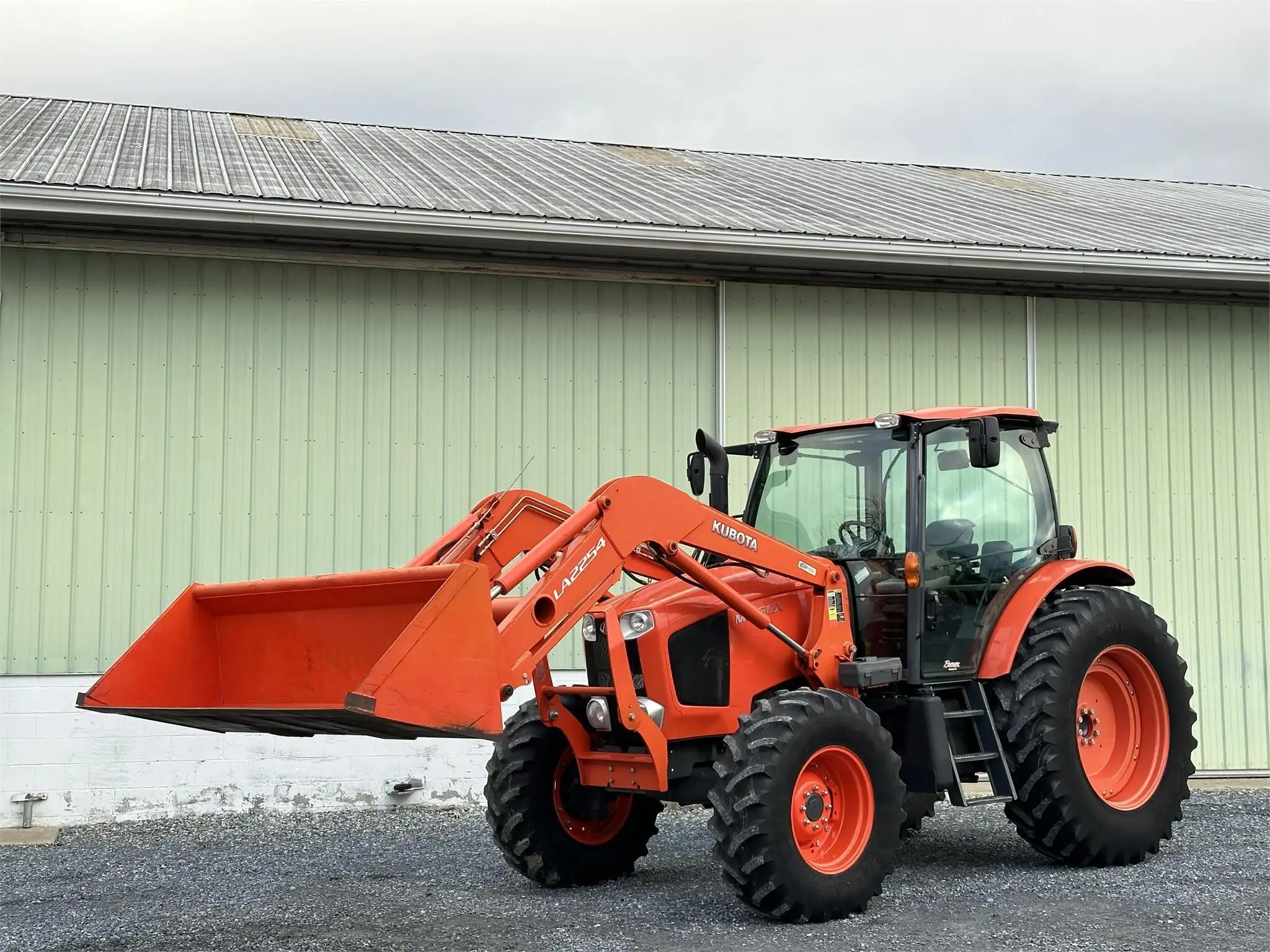

Kubota M135G
Kubota M135G — Globe Series · 133 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
133 hp
Weight
4465 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 6.1L 4-cyl dieselReference
Fuel tank190.0 LReference
Engine99.3 kWReference
Kubota V6108-CR-TIE4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke118 x 140 mmReference
Power99.3 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shiftReference
32-speed creeperReference
Typepower shiftReference
Gears24 forward and reverseReference
Clutchhydraulic wet discReference
Eight power-shift gears in three ranges with shuttle.Reference
TypecreeperReference
Gears32 forward and reverseReference
Optional creeper adds an additional 8-speed range to the standard transmission.Reference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1994Reference
Engine RPM1000@2050Reference
Dimensions
Wheelbase268 cmReference
Weight4465 kgReference
Front tire420/70R24Reference
Rear tire520/70R38Reference
Standard tires (ag)Front: 420/70R24. Rear: 520/70R38Reference
Length436 cmReference
Width225 cmReference
Height287 cmReference
Ground clearance47 cmReference
Front tread175/184 cmReference
Rear tread172 to 205 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
