Tractor · 2012Unverified

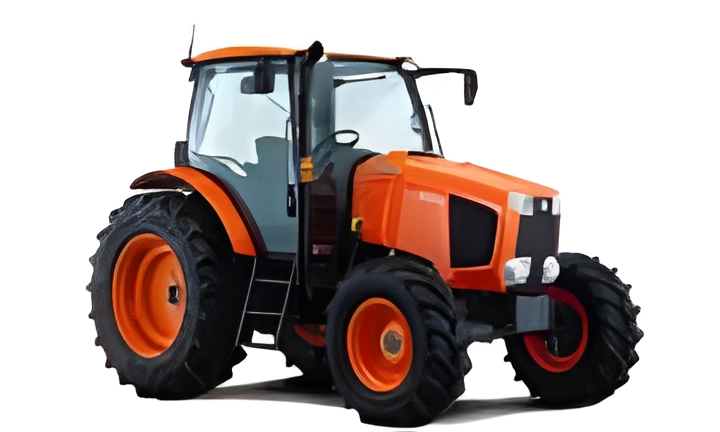

Kubota M135GX

Name: Kubota M135GX
Brand: Kubota

Kubota M135GX — Grand X Series · 118 hp. Reference specifications; pending source verification.

The Kubota M135GX tractor has an approximate engine power output of 118 hp, placing it in a mid-range category for its class. It was manufactured from 2012. The M135GX is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine and a four-wheel drive system with a hydrostatic transmission. Its operating weight is 4705 kg, and it is suitable for use on areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

118 hp

Max power

135 hp

Weight

4705 kg

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

118 hp

Recorded weight

4705 kg

Transmissions

24-speed eight-speed power shift

Production years

2012-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Row-Crop tractorReference

Original price was $81,752 in 2014Reference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Grand X Cab standard with air-conditioning.Reference

Engine

Kubota 6.1L 4-cyl dieselReference

Fuel tank190.0 LReference

Engine100.7 kWReference

Kubota V6108-TI-CRSReference

turbocharged and intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke118 x 140 mmReference

EmissionsInterim Tier IVReference

Emission controlexhaust gas recirculation and diesel particulate filter (DPF) (EGR)Reference

Power100.7 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.65x5.51 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speed eight-speed power shiftReference

32-speedReference

TransmissionIntelli-ShiftReference

Typeeight-speed power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight power shift gears in three ranges. Power shuttle.Reference

TransmissionIntelli-Shift CreeperReference

Gears32 forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)88.0 kWReference

Valves2 to 4Reference

Pump flow70.8 lpmReference

Steering flow60.6 lpmReference

Rear TypeIIReference

Controlelectronic lower-link draft controlReference

Rear lift (at 24"/610mm)3099 kgReference

Rear lift (at 24"/610mm)4285 kgReference

Rear Armstelescopic lower link endsReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase268 cmReference

Weight4705 kgReference

Front tire14.9R24Reference

Rear tire18.4R38Reference

Ag front14.9R24Reference

Ag rear18.4R38Reference

Length436 cmReference

Width217 cmReference

Height287 cmReference

Ground clearance56 cmReference

Front axle4WDReference

Front axleSuspended 4WDReference

Front tread177 to 187 cmReference

Rear tread159 to 209 cmReference

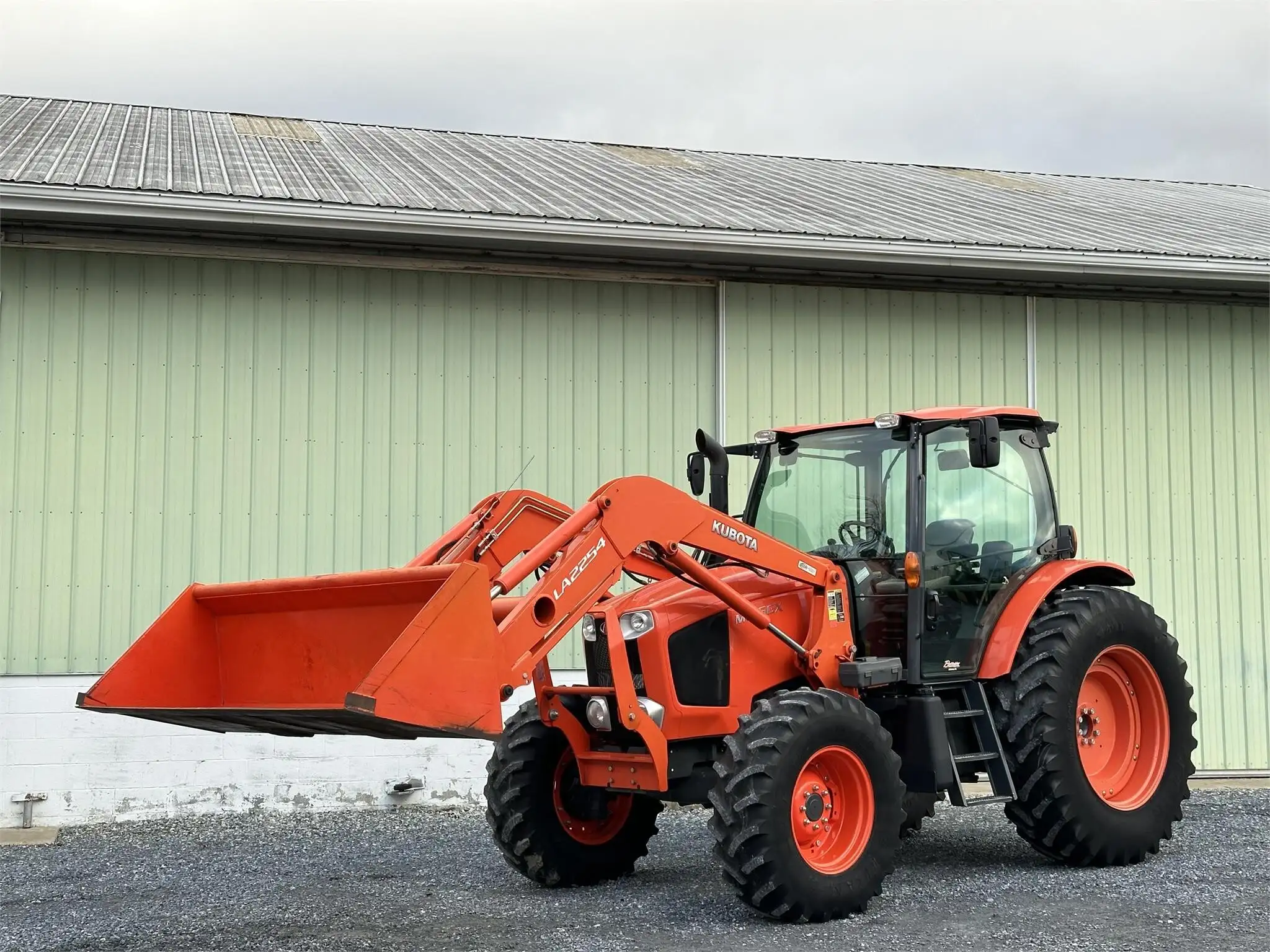

Kubota M135GX attachments

front-end loaderReference

M135GX Serial Number Location

Right side of tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps80Reference

Battery CCA1090Reference

Battery volts12Reference

Battery AH160Reference

Battery size160 AHReference

Total cold cranking amps1,090 CCAReference

General

Make & ModelKubotaReference

SCV controlJoystickReference

Front Axle Type4WD | Suspended 4WDReference

Capacities

Capacity374 ciReference

Hydraulics

Capacity Valves16 ValvesReference

Remote Valves2 to 4 ValvesReference

Steering & Implements flow16 gpm (18.7 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeelectronic lower-link draft controlReference

Power

Max Power135 hpReference

PTO

PTO Power118 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Overall Height287.5 cmReference

Overall Length436.1 cmReference

Overall Width217.9 cmReference

Overall weight4,705.1 kgReference

Wheels & tyres

Rear Wheel Typeag: 18.4R38Reference

Rear wheel tread range62.6 to 82.3 inchesReference

Front Wheel Typeag:14.9R24Reference

Front Wheel tread range69.9 to 73.8 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialGrand X Cab standard with air-conditioningReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
