Tractor · 2009Unverified

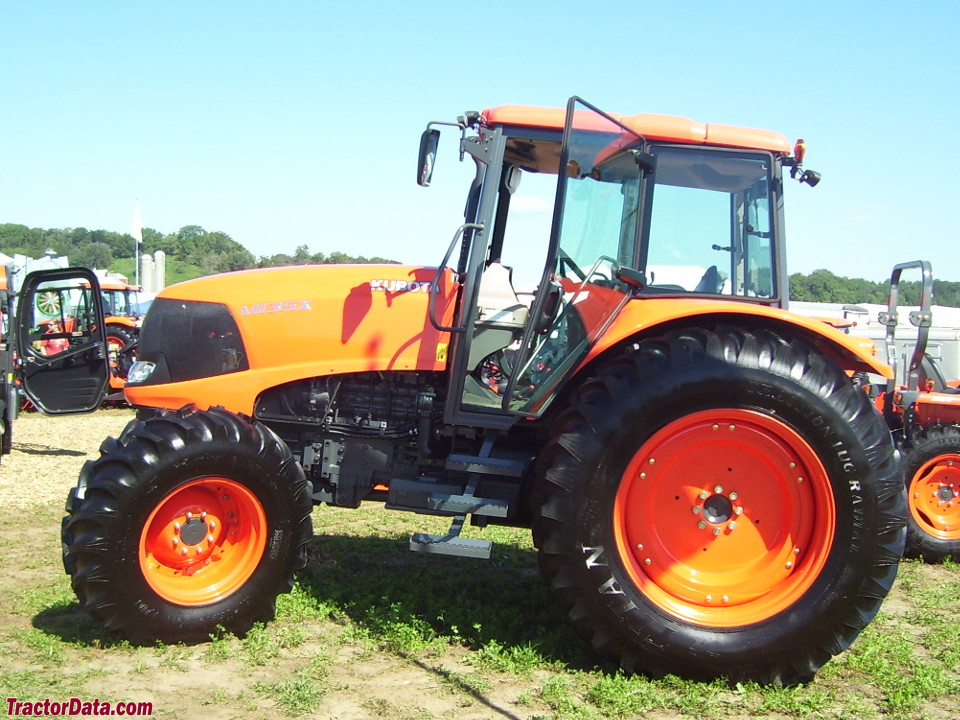

Kubota M135X
Kubota M135X — Row-Crop tractor · 135 hp. Reference specifications; pending source verification.
The Kubota M135X is a tractor model rated at approximately 135 hp, positioning it at the more powerful end of its class. Produced between 2009 and 2014, the model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. It has a listed operating weight of 4599 kg, suitable for operations covering 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Max power
91.9 kW
Weight
4599 kg
Catalogue coverage
Variants represented
2
Richest spec table
122 rows
Recorded power
135 hp
Recorded weight
4599 kg
Transmissions
16-speed partial powershift
Production years
2009-2014
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Row-Crop tractorReference
Original price$69,644 (2011)Reference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional radio/CD-player.Reference
Variants
M135XDTCstandard front axleReference
M135XDTSCfront-axle suspensionReference
Engine
Kubota 6.1L 4-cyl dieselReference
Engine (net)100.7 kWReference
Drawbar (tested)77.5 kWReference
Kubota V6108-TI-CRSReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke118 x 140 mmReference
Power (net)100.7 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity14.6 LReference
Coolant capacity15.0 LReference
Max power91.9 kWReference
Power at rated engine speed91.0 kWReference
Max power77.5 kWReference
Fuel TypedieselReference
No of Cylinders4 cylinderReference
Rated engine speed2,200 RPMReference
Bore and stroke4.65x5.51 inchesReference
Cooling systemliquid-cooledReference
Transmission
16-speed partial powershiftReference
24-speedReference
TransmissionIntelli-ShiftReference
Typepartial powershiftReference
Gears16 forward and reverseReference
Clutchelectro-hydraulic wet discsReference
Oil capacity59.8 LReference
Eight-speed power shift two-range mechanical shift operated via clutch button.Reference
TransmissionIntell-Shift CreeperReference
Gears24 forward and reverseReference
Transmission TypeSemi-PowershiftReference
forward and reverse optionsIntelli-Shift 16F and 16R | Intell-Shift Creeper 24F and 24RReference
Wheel Drive4WDReference
PTO & Hydraulics
PTO (claimed)88.0 kWReference
PTO (tested)91.9 kWReference
Hydraulic system59.8 LReference
Typeopen centerReference
Capacity59.8 LReference
Valves2 to 4Reference
Pump flow77.2 lpmReference
Total flow135.1 lpmReference
Steering flow57.9 lpmReference
Rear TypeIIReference
Rear lift (at ends)2634 kgReference
Rear lift (at 24"/610mm)2360 kgReference
Rear lift (at 24"/610mm)4285 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2210Reference
Power at rated PTO speed90.0 kWReference
Capacities
Fuel190.0 LReference
Front axle16.6 LReference
Fuel tank190 LReference
Crankcase oil volume15.4 qtsReference
Dimensions
Wheelbase268 cmReference
Weight4599 kgReference
Front tire14.9R24Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R24. Rear: 18.4R38Reference
Optional tires (ag)Front: 420/70R24. Rear:Reference
Optional tires (ag)Front: 520/80R38. Rear:Reference
Optional tires (ag)Front: 13.6-24. Rear: 16.9-38Reference
Length436 cmReference
Width226 cmReference
Height272 cmReference
Ballasted weight6534 kgReference
Ground clearance61 cmReference
Front tread177 to 186 cmReference
Rear tread159 to 209 cmReference

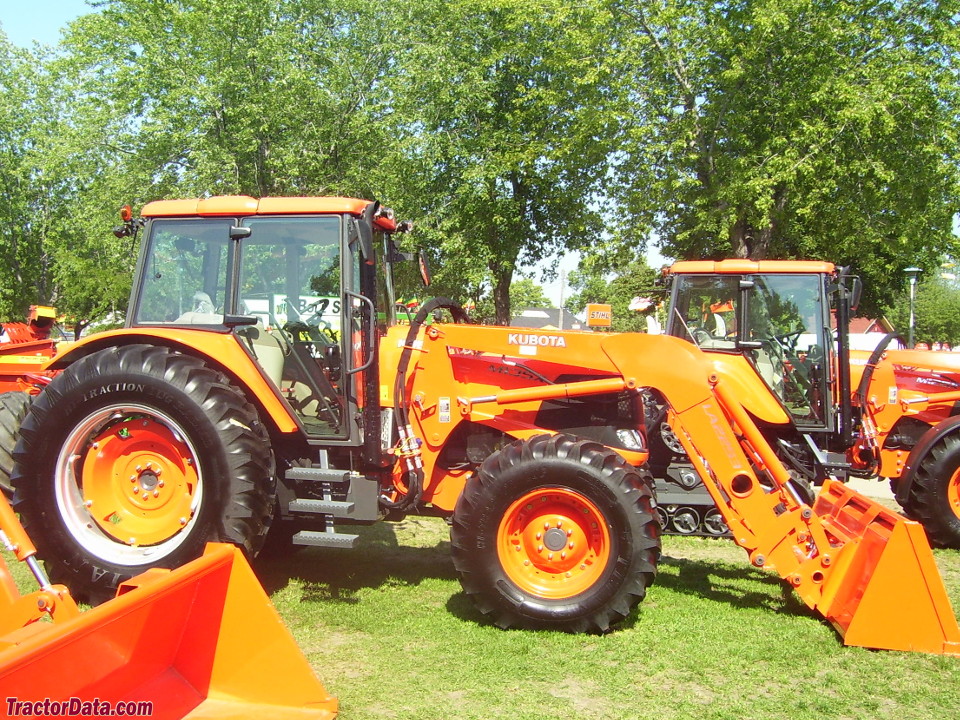

Kubota M135X attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery CCA1090Reference
Battery volts12Reference
Total cold cranking amps1,090 CCAReference
Attachment overview
Kubota LA2253 Height Position loaderReference
Kubota LA2253 Power Position loaderReference
Test results
Diesel 16-speed 4WDOctober 27 - November 4, 2010Link: OCED Tractor Test 1985 fileReference
PTO performanceReference
Fuel use28.8 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Fuel use29.1 l/hourReference
Max pull6396 kgReference
General
Make & ModelKubotaReference
PTO
PTO Power118 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM1,000 RPMReference
Engine Speed on Rear PTO speed1,000@2,210 RPMReference
Steering & brakes
Brakeshydraulic wet discReference
Steering typehydrostatic powerReference
Hydraulics
Pump Rated Output (total)35.7 gpmReference
Hydraulics Typeopen centerReference
Remote Valves2 to 4 ValvesReference
Steering & Implements flow15.3 gpm (20.4 gpm)Reference
Rear Hitch category (SAE designation)Category IIReference
Rear Hitch maximum lift capacity2,634.9 kgReference
Dimensions & weight
Overall Height272.5 cmReference
Overall Length436.1 cmReference
Overall Width226.1 cmReference
Overall weight4,599.9 kgReference
Wheels & tyres
Rear Wheel Type18.4R38Reference
Rear wheel tread range62.6 to 82.3 inchesReference
Front Wheel Type14.9R24Reference
Front Wheel tread range69.7 to 73.6 inchesReference
Operator station
Cab AvailabilityAvailableReference
Cab Air conditioning, temperature differentialCab standard with heat and air-conditioning.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
