Tractor · 2019Unverified
Kubota M4-071
Kubota M4-071 — M4 Series · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
5952 to 6008 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Original price$48,866 (2018 standard )Reference
Original price$51,852 (2019 deluxe )Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
M4-071standardReference
M4-071DdeluxeReference
M4N-071narrow profileReference
Engine
Kubota 3.3L 4-cyl dieselReference
Engine (gross)54.6 kWReference
Kubota V3307-CR-TE4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke94 x 119 mmReference
Rated Power (gross)54.6 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.0 LReference
Coolant capacity10.0 LReference
Transmission
12-speed power shuttleReference
18-speed creeperReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Six synchronized gears in two ranges with left-hand hydraulic shuttle. Push-button clutch for gear shifts.Reference
TypecreeperReference
Gears18 forward and reverseReference
Optional creeper adds an additional range to the standard shuttle transmission.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
Hydraulic system40.1 LReference
Typeopen centerReference
Capacity40.1 LReference
Valves2 to 3Reference
Pump flow63.2 lpmReference
Steering flow23.8 lpmReference
Rear TypeII/IReference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/540E (1.375)Reference
Capacities
Fuel90.1 LReference
Dimensions
Wheelbase213 cmReference
Weight5952 to 6008 poundsReference
Front tire320/85R20Reference
Rear tire420/85R30Reference
Standard tires (ag)Front: 320/85R20. Rear: 420/85R30Reference
Lawn/turf front9.50-24Reference
Lawn/turf rear18.4-26Reference
Industrial front14-17.5Reference
Industrial rear16.9-24Reference
Length360 cmReference
Width192 cmReference
Height (cab)256 cmReference
Standard Weight2699 kgReference
Deluxe Weight2725 kgReference
Clearance (front axle)45 cmReference
Front tread148 cmReference
Rear tread142/174 cmReference
Kubota M4-071 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Battery CCA900Reference
Battery volts12Reference
Attachment overview

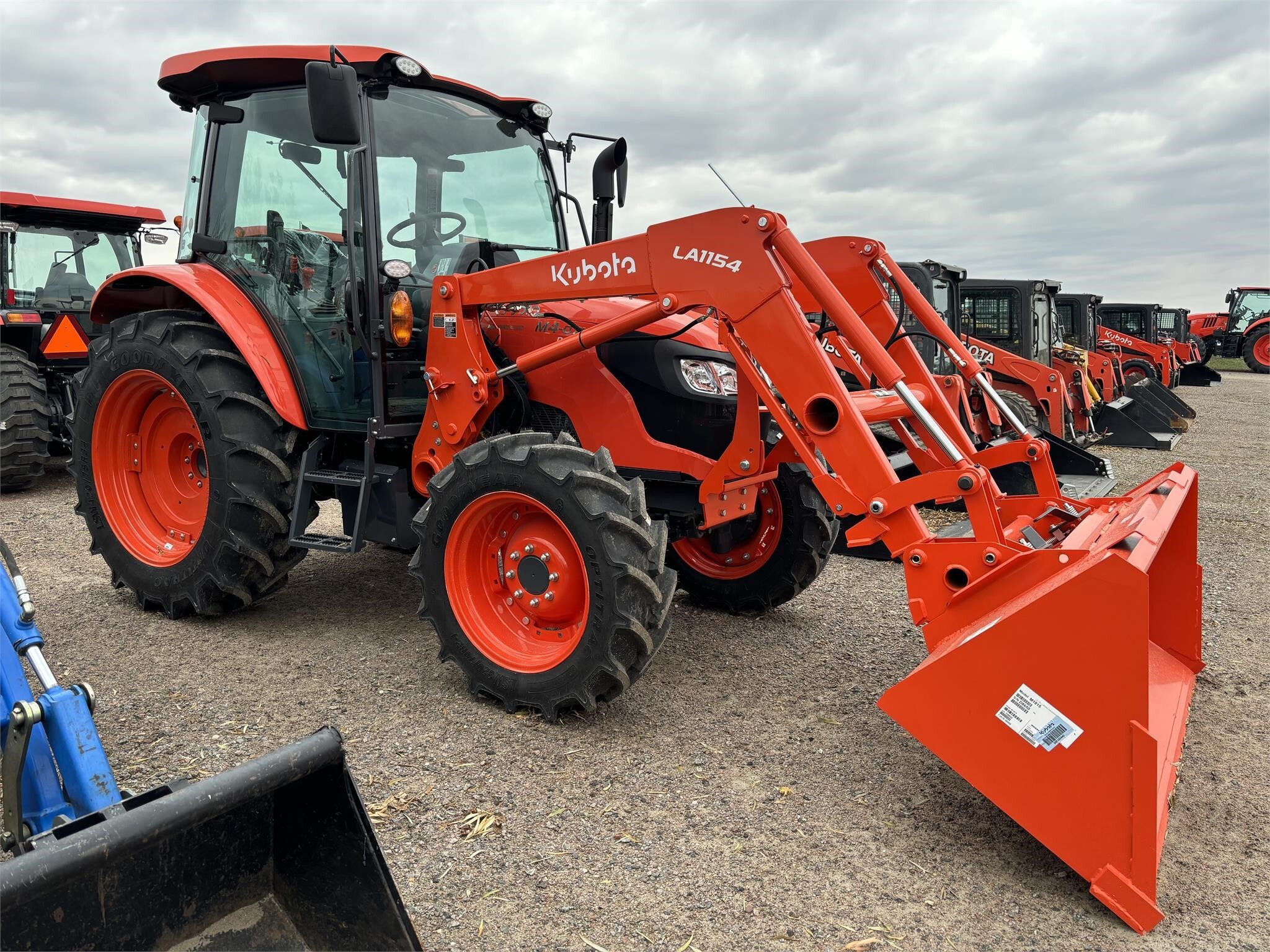

Kubota LA1154A loaderReference
Speeds
With 420/85R30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
