Tractor · 1977Unverified

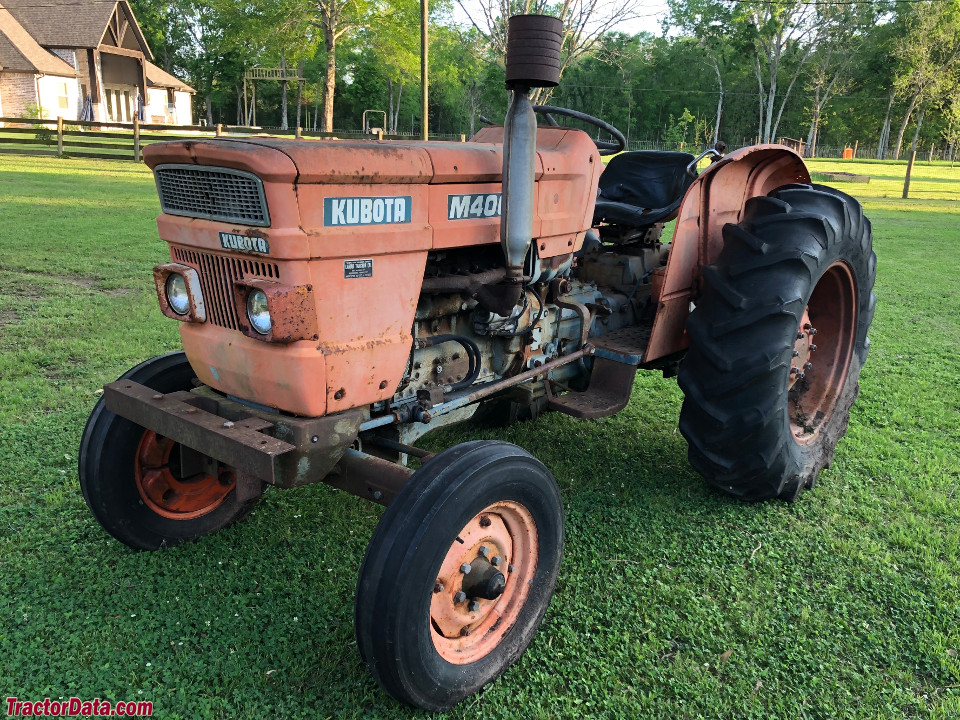

Kubota M4000
Kubota M4000 — Utility tractor · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
1871 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Kubota 2.2L 6-cyl dieselReference
Fuel tank54.1 LReference
Engine35.4 kWReference
Kubota S2200-AReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke76 x 82 mmReference
Power35.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronizedReference
TypesynchronizedReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)30.5 kWReference
Typeopen centerReference
Pressure171.7 barReference
Valves1Reference
Pump flow27.6 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase198 cmReference
Weight1871 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length333 cmReference
Width166 cmReference
Height (exhaust)220 cmReference
Shipping weight1871 kgReference
Ground clearance42 cmReference
Front tread128 to 198 cmReference
Rear tread130 to 189 cmReference
M4000 Serial Numbers
Location:Serial number on the left side of the tractor's clutch housing.Reference
197610061Reference
197710361Reference
197811071Reference
197910124Reference
198010164Reference
198111204Reference
198211244Reference
198311284Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
