Tractor · 2018Unverified

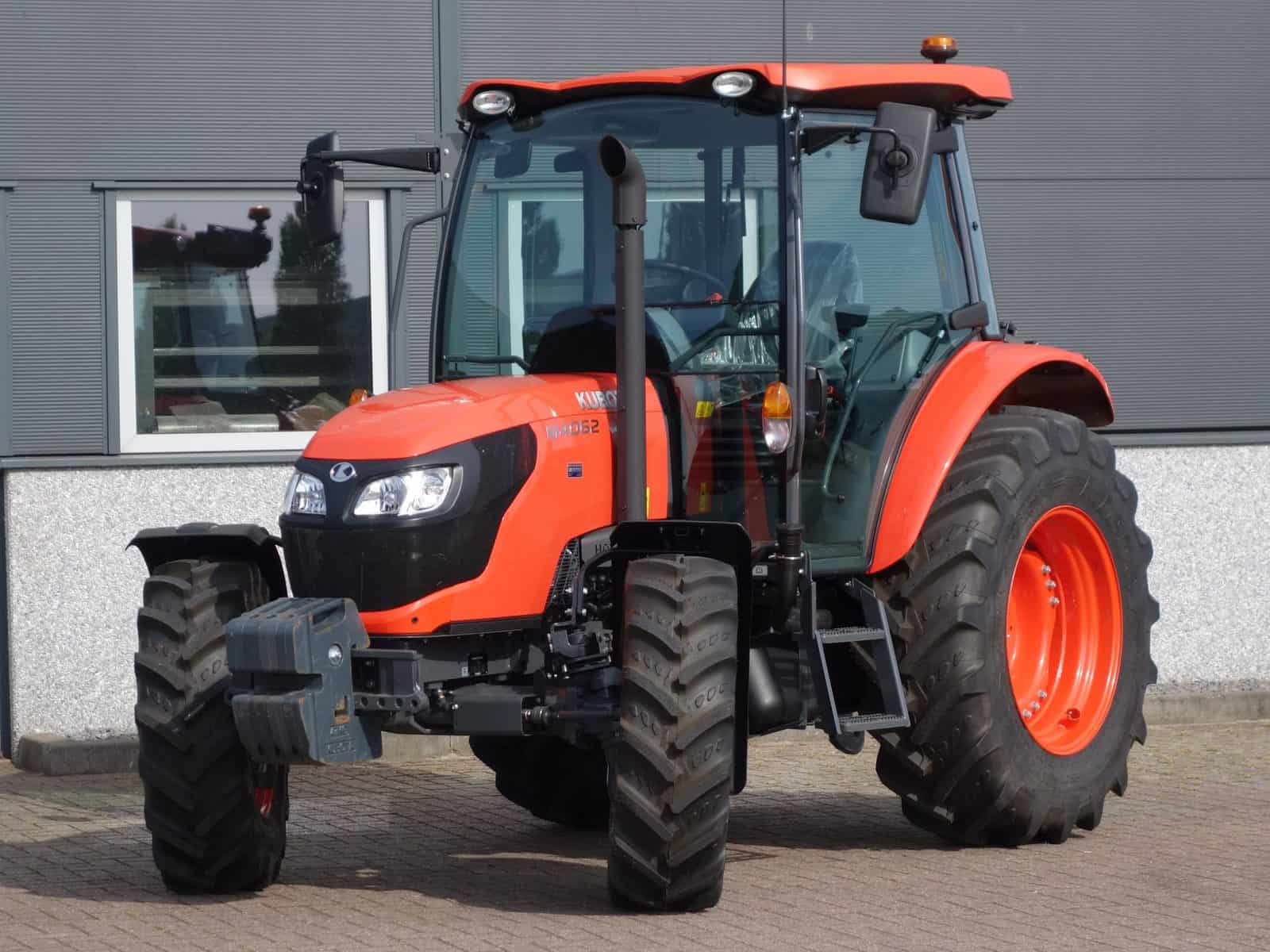

Kubota M4062

Name: Kubota M4062
Brand: Kubota

Kubota M4062 — M4002 Series · 66 hp. Reference specifications; pending source verification.

The Kubota M4062 is a tractor model rated at 66 hp, positioning it in the middle of its class in terms of power output. It was manufactured from 2018 to 2020. The tractor features a 4-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and an 18-speed gearbox. Its listed weight ranges from 5666 to 6702 pounds, and it is designed for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

66 hp

Max power

66 hp

Weight

5666 to 6702 pounds

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

66 hp

Recorded weight

2570 kg

Transmissions

18-speed

Production years

2018-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Engine

Kubota 3.3L 4-cyl dieselReference

ROPS Fuel tank70.0 LReference

Cab Fuel tank90.1 LReference

Engine (gross)49.2 kWReference

Kubota V3307Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke94 x 119 mmReference

EmissionsStage IVReference

Rated Power (gross)49.2 kWReference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,400 rpmReference

Emissions complianceStage IVReference

Bore and stroke3.70x4.70 inchesReference

Cooling systemliquid-cooledReference

Transmission

18-speedReference

Gears18 forward and reverseReference

Clutchwet discReference

forward and reverse options18 F & 18 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Valves2 or 3Reference

Pump flow62.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)2500 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase213 cmReference

Weight5666 to 6702 poundsReference

Front tire320/85R20Reference

Rear tire420/85R30Reference

Standard tires (ag)Front: 320/85R20. Rear: 420/85R30Reference

Length370 cmReference

ROPS Width184 cmReference

Cab Width195 cmReference

Height (cab)258 cmReference

ROPS Weight2570 kgReference

Cab Weight3040 kgReference

ROPS Front tread145 to 153 cmReference

Cab Front tread136 to 141 cmReference

ROPS Rear tread143 to 172 cmReference

Cab Rear tread152 to 174 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

Capacity203.3 ciReference

Fuel tank90.1 LReference

Power

Max Power66 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540/1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Remote Valves2 or 3 valvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity2,500.2 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab258.1 cmReference

Overall Length370.1 cmReference

Overall Width195.1 cmReference

Overall weight2,570.1 kgReference

Wheels & tyres

Rear Wheel Type420/85R30Reference

Rear wheel tread range60.2 to 68.7 inchesReference

Front Wheel Type320/85R20Reference

Front Wheel tread range57.1 to 60.4 inchesReference

General

Rollover protective structureTwo-post folding ROPSReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab optional.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
