Tractor · 2021Unverified

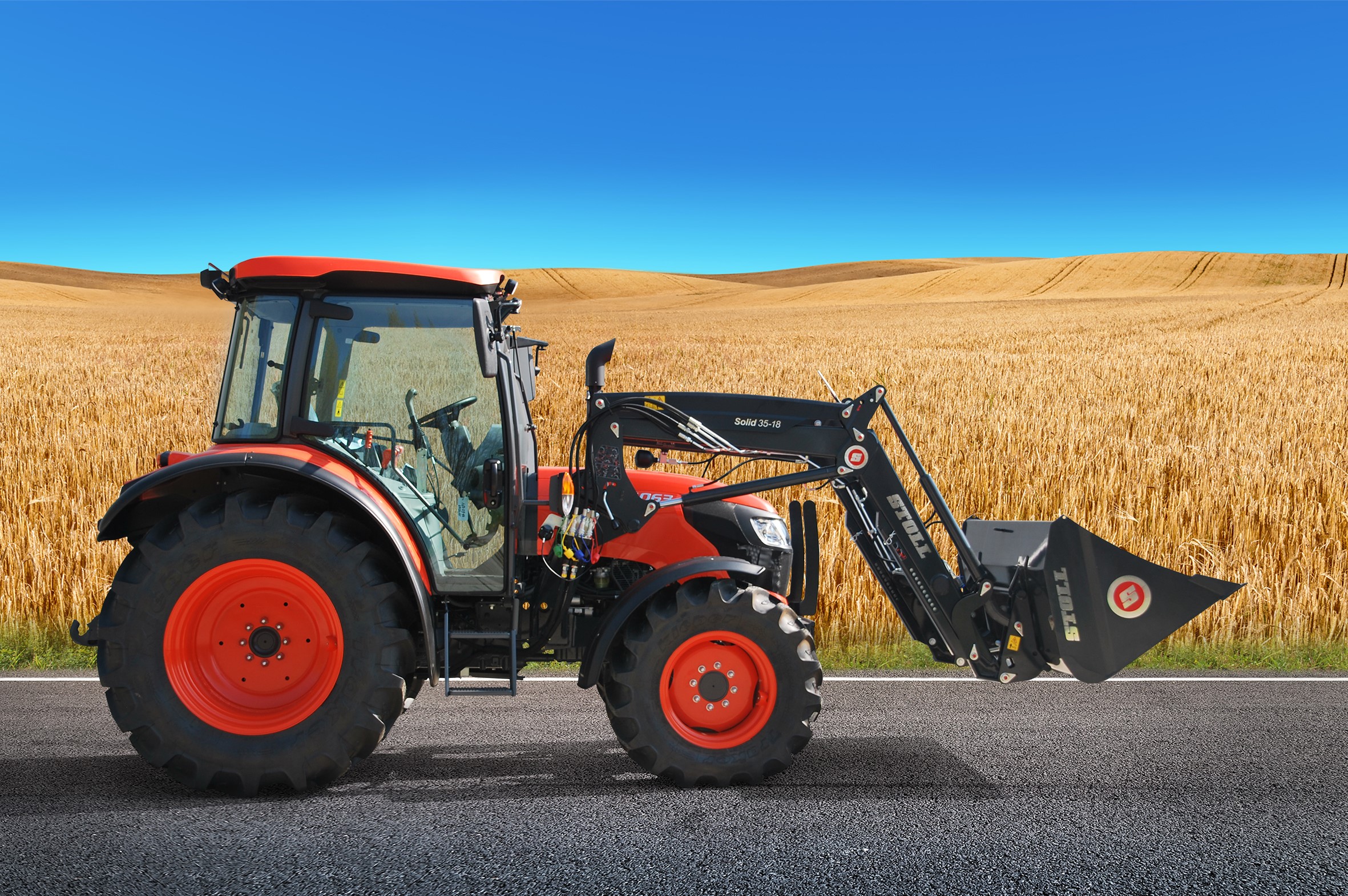

Kubota M4063

Name: Kubota M4063
Brand: Kubota

Kubota M4063 — M4003 Series · 66 hp. Reference specifications; pending source verification.

The Kubota M4063 is a tractor with a rated power of 66 hp, a mid-range figure for its class. It was manufactured in 2021. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine and a 4-wheel drive system, paired with an 18-speed gearbox. Its operating weight is listed as 5666 to 6702 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

66 hp

Weight

5666 to 6702 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

66 hp

Recorded weight

2570 kg

Transmissions

18-speed power shuttle

Production years

2021-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab available with air-conditioning.Reference

Engine

Kubota 3.3L 4-cyl dieselReference

ROPS Fuel tank70.0 LReference

Cab Fuel tank90.1 LReference

Engine (net)49.2 kWReference

Kubota V3307Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke94 x 119 mmReference

EmissionsStage 5Reference

Rated Power (net)49.2 kWReference

Rated RPM2400Reference

Transmission

18-speed power shuttleReference

Typepower shuttleReference

Gears18 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Six synchronized gears in three ranges with power shuttle.Reference

PTO & Hydraulics

Valves2 or 3Reference

Pump flow62.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2500 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase213 cmReference

Weight5666 to 6702 poundsReference

Front tire320/85R20Reference

Rear tire420/85R30Reference

Standard tires (ag)Front: 320/85R20. Rear: 420/85R30Reference

Length370 cmReference

Width195 cmReference

Height (Folded ROPS)209 cmReference

Height (cab)258 cmReference

ROPS Weight2570 kgReference

Cab Weight3040 kgReference

Ground clearance42 cmReference

ROPS Front tread145 to 153 cmReference

Cab Front tread136 to 141 cmReference

ROPS Rear tread143 to 172 cmReference

Cab Rear tread152 to 174 cmReference

Kubota M4063 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
