Tractor · 1985Unverified

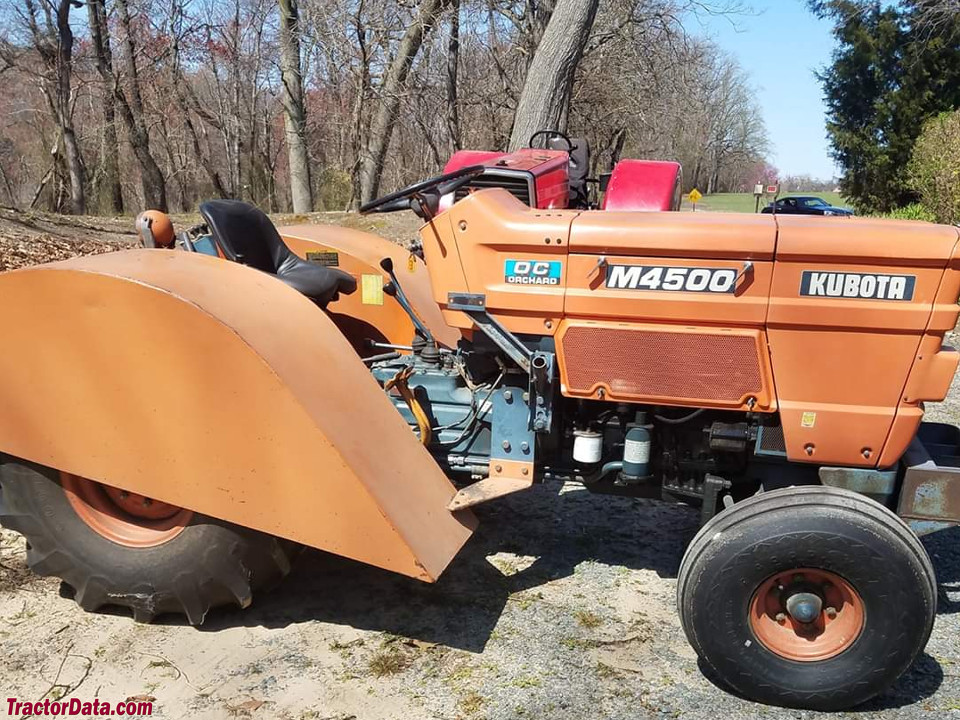

Kubota M4500-OC
Kubota M4500-OC — Orchard/Vineyard tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Orchard/Vineyard tractorReference
Built in JapanReference
Two-wheel driveReference
Steeringpower assistReference
Differential mechanical wet disc brakesReference
Open operator stationReference
Variants
M4500utility tractorReference
Engine
Kubota 2.6L 6-cyl dieselReference
Fuel tank54.1 LReference
Engine (gross)41.4 kWReference
Kubota S2600-AReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke82 x 82 mmReference
Power (gross)41.4 kWReference
Air cleanersingle paper elementReference
Compression21:1Reference
Rated RPM2600Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)37.1 kWReference
Typeopen centerReference
Valves1Reference
Total flow27.6 lpmReference
Rear TypeIReference
Rear lift (at ends)1496 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Dimensions
Front tire9.00-10Reference
Rear tire18.4-16.1Reference
Standard tires (ag)Front: 9.00-10. Rear: 18.4-16.1Reference
Length336 cmReference
Width178 cmReference
Height (exhaust)142 cmReference
Clearance (front axle)23 cmReference
Kubota M4500-OC attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
