Tractor · 2004Unverified

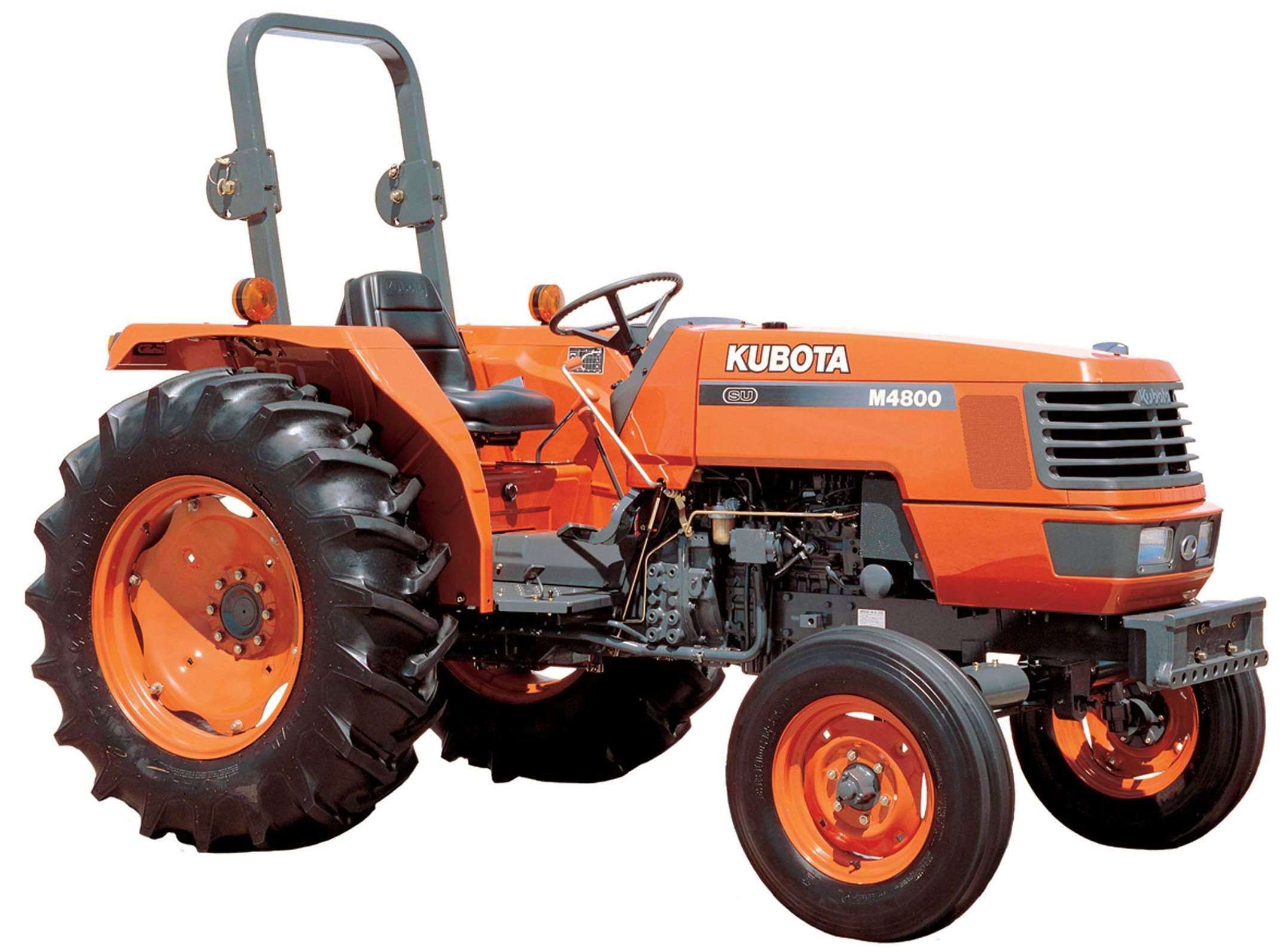

Kubota M4800SU

Name: Kubota M4800SU
Brand: Kubota

Kubota M4800SU — Compact Utility tractor · 43 hp. Reference specifications; pending source verification.

The Kubota M4800SU is a tractor with a rated output of 43 hp, classifying it as a compact model. The M4800SU was manufactured between 2004 and 2010. It features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and an 8-speed gearbox. The tractor's weight is listed as 3747 to 3858 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

43 hp

Weight

3747 to 3858 pounds

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

43 hp

Recorded weight

1699 kg

Transmissions

8-speed partially synchronized

Production years

2004-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two-wheel driveReference

Final drivesinboard planetaryReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPSReference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank54.9 LReference

Engine37.3 kWReference

Kubota V2403Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power37.3 kWReference

Air cleanerdry dual elementReference

Rated RPM2700Reference

Starter volts12Reference

Oil capacity7.2 LReference

Coolant capacity7.0 LReference

Transmission

8-speed partially synchronizedReference

Typepartially synchronizedReference

Gears8 forward and 4 reverseReference

Clutch275mm dry discReference

PTO & Hydraulics

PTO (claimed)32.1 kWReference

Typeopen centerReference

Valves2Reference

Pump flow41.6 lpmReference

Total flow64.7 lpmReference

Rear TypeII/IReference

Rear lift (at ends)1905 kgReference

Rear lift (at 24"/610mm)1501 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase199 cmReference

Weight3747 to 3858 poundsReference

Front tire6.50-16Reference

2WD Rear tire14.9-28Reference

2WD Standard tires (ag)Front: 6.50-16. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 8.3-24. Rear: 14.9-28Reference

Lawn/turf front9.00-10Reference

Lawn/turf rear21.5L-16.1Reference

2WD Length349 cmReference

4WD Length340 cmReference

Width170 cmReference

Height (ROPS)235 cmReference

@WD Weight1699 kgReference

4WD Weight1749 kgReference

Ground clearance45 cmReference

2WD Front tread141 to 151 cmReference

4WD Front tread133 to 143 cmReference

Rear tread131 to 171 cmReference

Kubota M4800SU attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA582Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
