Tractor · 2001Unverified

Kubota M4900

Name: Kubota M4900
Brand: Kubota

Kubota M4900 — M Series · 54 hp. Reference specifications; pending source verification.

The Kubota M4900 is a tractor model with a rated output of 54 hp, positioning it at the lighter end of its class. It was manufactured between 2001 and 2008. The model is equipped with a 5-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a hydrostatic transmission. Its operating weight ranges from 3748 to 4497 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

54 hp

Weight

3748 to 4497 pounds

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

54 hp

Transmissions

8-speed

Production years

2001-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 2.7L 5-cyl dieselReference

ROPS Fuel tank65.1 LReference

Cab Fuel tank95.0 LReference

Engine (gross)40.3 kWReference

Engine (net)36.9 kWReference

Kubota F2803Reference

dieselReference

5-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke87 x 92 mmReference

Power (net)36.9 kWReference

Power (gross)40.3 kWReference

Air cleanerdual dry elementsReference

Rated RPM2600Reference

Starter volts12Reference

Oil capacity8.0 LReference

Coolant capacity6.2 LReference

Transmission

8-speedReference

8-speed synchronized shuttleReference

12-speedReference

Gears8 forward and 4 reverseReference

Oil capacity40.1 LReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Four synchronized gears in two range with synchronized shuttle.Reference

TransmissioncreeperReference

Gears12 forward and reverseReference

PTO & Hydraulics

PTO (claimed)33.6 kWReference

Typeopen centerReference

Valves1 to 3Reference

Total flow64.7 lpmReference

Rear TypeII/IReference

Controlposition control and top-link draft sensingReference

Rear lift (at ends)1905 kgReference

Rear lift (at 24"/610mm)1501 kgReference

Rear PTOliveReference

Rear PTO Type540Reference

Dimensions

ROPS Wheelbase199 cmReference

Cab Wheelbase207 cmReference

Weight3748 to 4497 poundsReference

Front tire8.3-24Reference

Rear tire14.9-28Reference

Ag front8.3-24 (2WD)Reference

Ag front8.3-24 (4WD)Reference

Ag rear14.9-28Reference

Lawn/turf front9.00-10 (2WD)Reference

Lawn/turf front29x12.5-15 (4WD)Reference

Lawn/turf rear21.5L-16.1R3Reference

Industrial front12.5/80-18 R4Reference

Industrial rear16.9-24 R4Reference

2WD ROPS Length349 cmReference

4WD ROPS Length340 cmReference

2WD Cab Length357 cmReference

4WD Cab Length347 cmReference

Width170 cmReference

Height (ROPS)234 cmReference

Height (cab)248 cmReference

Clearance (front axle)42 cmReference

2WD Front tread141 to 182 cmReference

4WD Front tread132 to 143 cmReference

Rear tread131 to 171 cmReference

2WD ROPS Shipping1700 kgReference

4WD ROPS Shipping1799 kgReference

2WD Cab Shipping1940 kgReference

4WD Cab Shipping2039 kgReference

Kubota M4900 attachments

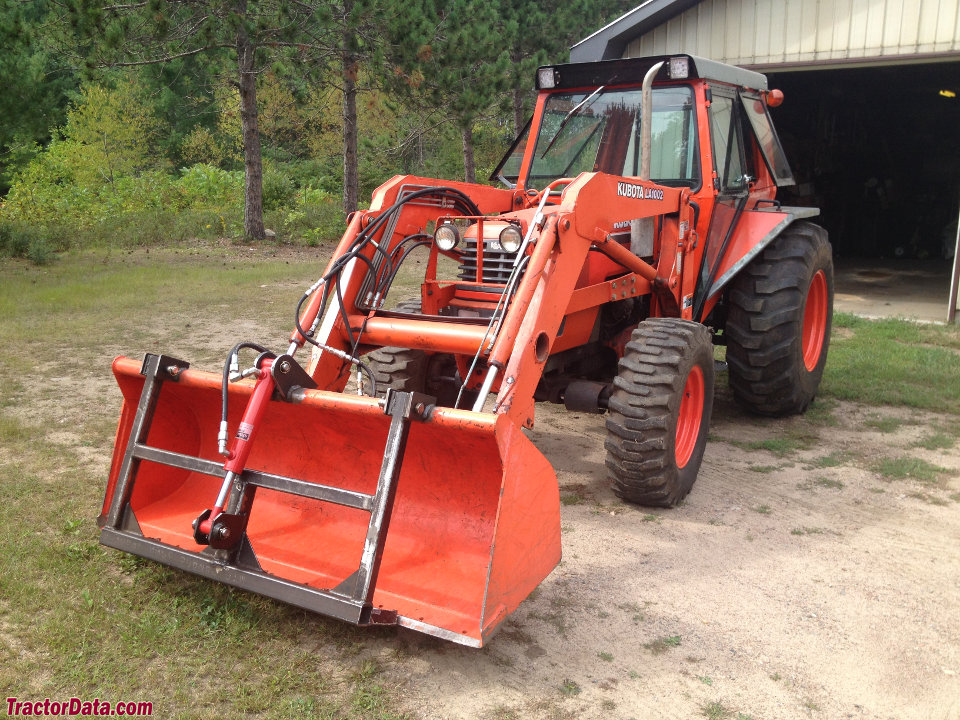

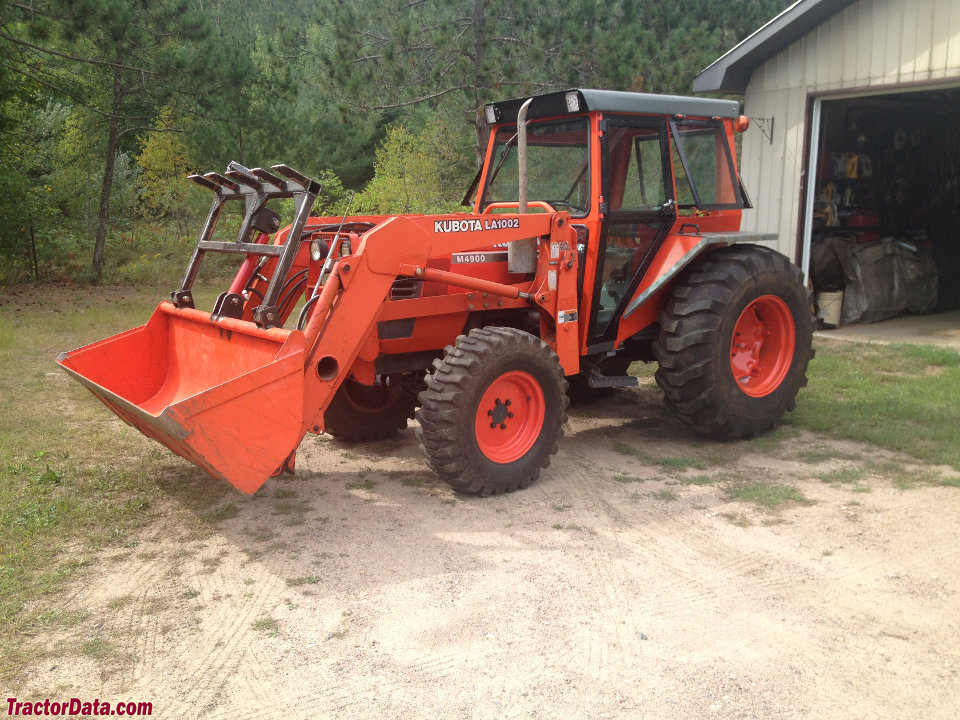

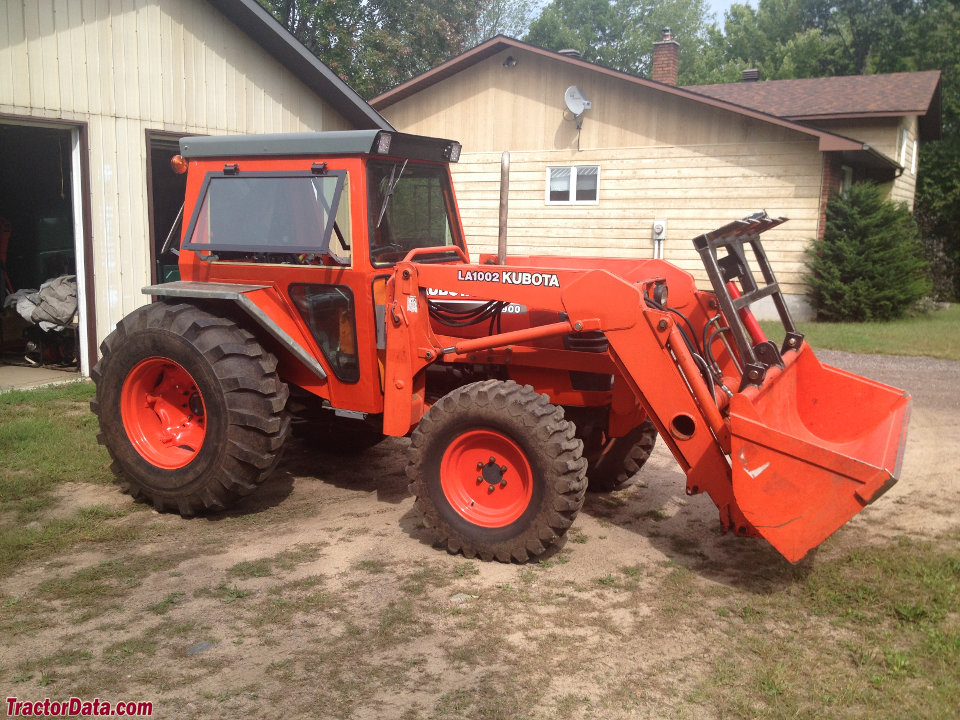

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps60Reference

Battery CCA700Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
