Tractor · 2018Unverified

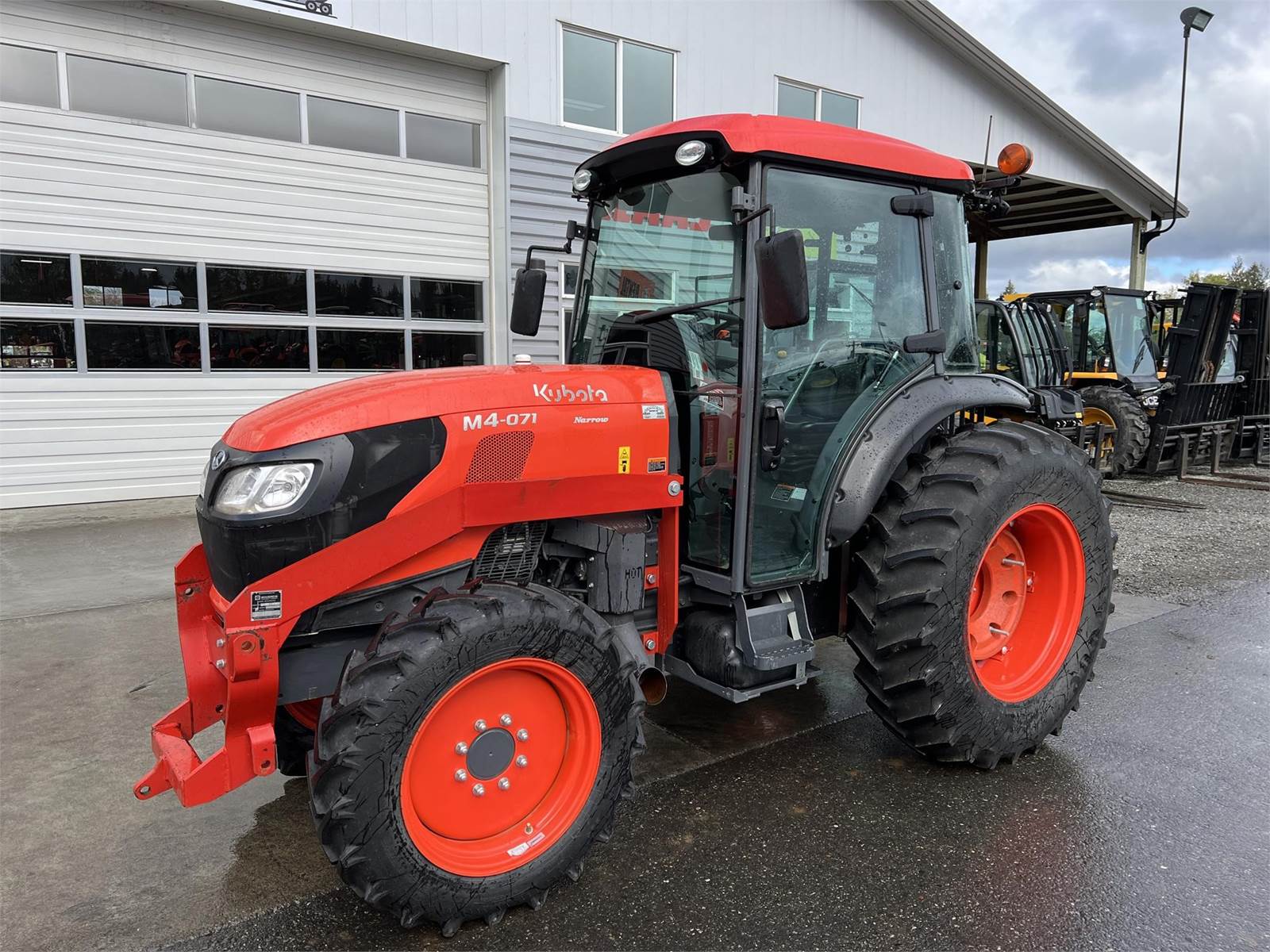

Kubota M4N-071
Kubota M4N-071 — M4 Series · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
5049 to 5291 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Orchard/Vineyard tractorReference
Original price$56,814 (2023 ROPS )Reference
Original price$70,967 (2023 Cab )Reference
Four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount folding ROPS. Cab available with air-conditioning.Reference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank76.1 LReference
Exhaust fluid (DEF)12.1 LReference
Engine (gross)54.1 kWReference
Kubota V3800-CRReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
EmissionsTier IVReference
Emission controlDPF, DOC and SCRReference
Rated Power (gross)54.1 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
18-speed creeperReference
TypeshuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears18 forward and reverseReference
PTO & Hydraulics
PTO (claimed)45.5 kWReference
Typeopen centerReference
Valves2 to 5Reference
Pump flow63.2 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift (at ends)2300 kgReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E (1.375)Reference
Engine RPM540@2385Reference
Engine RPM540E@1735Reference
Dimensions
Wheelbase213 cmReference
Weight5049 to 5291 poundsReference
Front tire8-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-24Reference
Length378 cmReference
Width131 cmReference
Height (hood)138 cmReference
Height (cab)229 cmReference
ROPS Weight2290 kgReference
Cab Weight2399 kgReference
Ground clearance28 cmReference
Clearance (front axle)31 cmReference
Front tread104 cmReference
Rear tread94 to 138 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps100Reference
Charging amps130Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
