Tractor · 2015Unverified

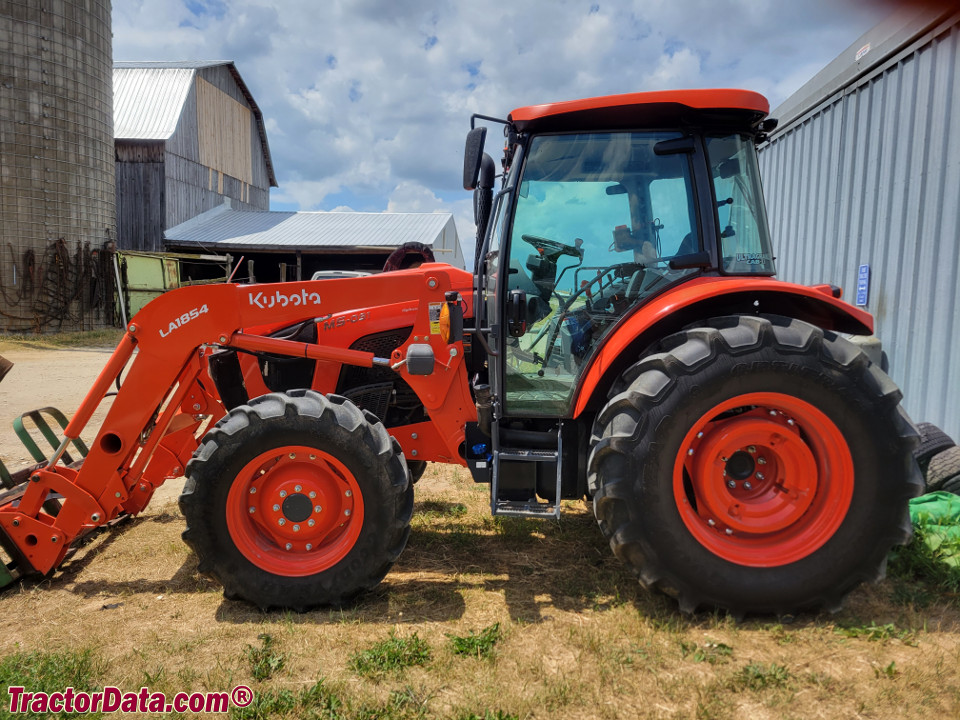

Kubota M5-091
Kubota M5-091 — M5 Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
5622 to 6900 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference

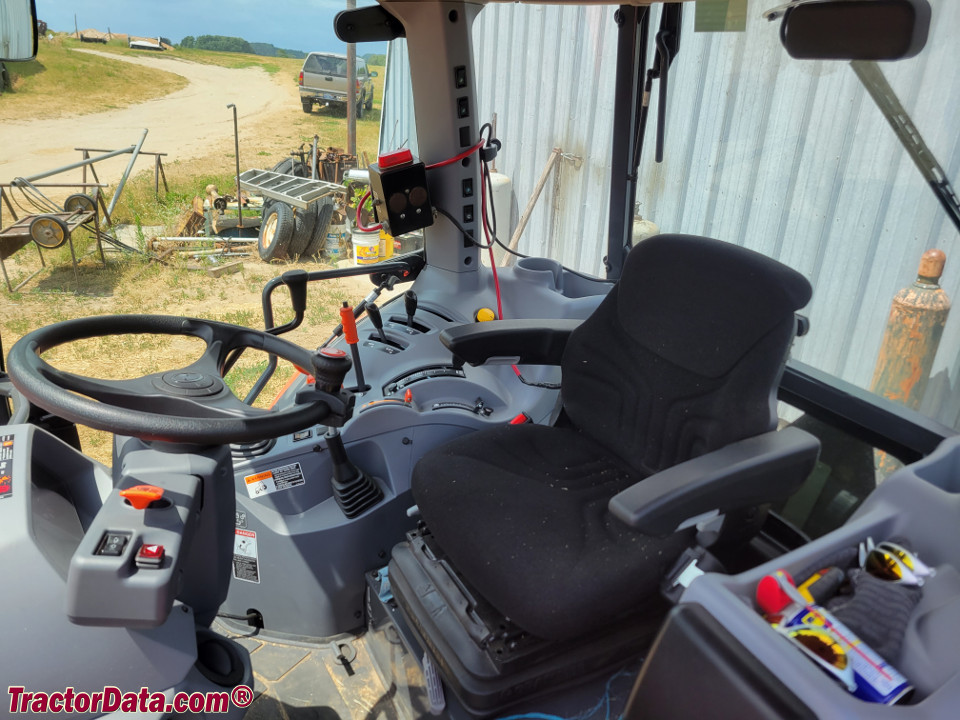

Two-post foldable ROPS. Ultra Grand Cab II available with air-conditioning.Reference
Variants
M5N-091narrow profileReference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank104.8 LReference
Exhaust fluid (DEF)12.1 LReference
Engine (gross)69.0 kWReference
Engine (net)63.8 kWReference
Kubota V3800CR-TIEF4Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
EmissionsTier IVReference
Emission controldiesel particulate filter, diesel oxidation catalyst, and selective catalytic reductionReference
Power (net)63.8 kWReference
Rated Power (gross)69.0 kWReference
Fuel systemcommon rail direct injectionReference
ROPS Rated RPM2400Reference
Cab Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
Clutchwet discReference
Four synchronized gears in two ranges with electro-hydraulic shuttle shift.Reference
Gears12 forward and reverseReference
Six synchronized gears in two ranges with electro-hydraulic shuttle shift.Reference
PTO & Hydraulics
PTO (claimed)56.7 kWReference
Valves1 to 3Reference
ROPS Pump flow60.2 lpmReference
Cab Pump flow64.3 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)2350 kgReference
Rear lift (at 24"/610mm)3299 kgReference
Rear Armstelescopic lower link ends and stabilizersReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Dimensions
2WD Wheelbase228 cmReference
4WD Wheelbase225 cmReference
Weight5622 to 6900 poundsReference
Front tire7.5-18Reference
2WD Rear tire18.4-28Reference
2WD Standard tires (ag)Front: 7.5-18. Rear: 18.4-28Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 18.4-28Reference
2WD Length397 cmReference
4WD Length395 cmReference
2WD Width196 cmReference
4WD Width198 cmReference
Height (ROPS)250 cmReference
Height (cab)254 cmReference
2WD Clearance (front axle)52 cmReference
4WD Clearance (front axle)47 cmReference
2WD Front tread144 to 203 cmReference
4WD Front tread151 to 162 cmReference
Rear tread151 to 192 cmReference
2WD ROPS2550 kgReference
4WD ROPS2740 kgReference
2WD Cab2940 kgReference
4WD Cab3129 kgReference

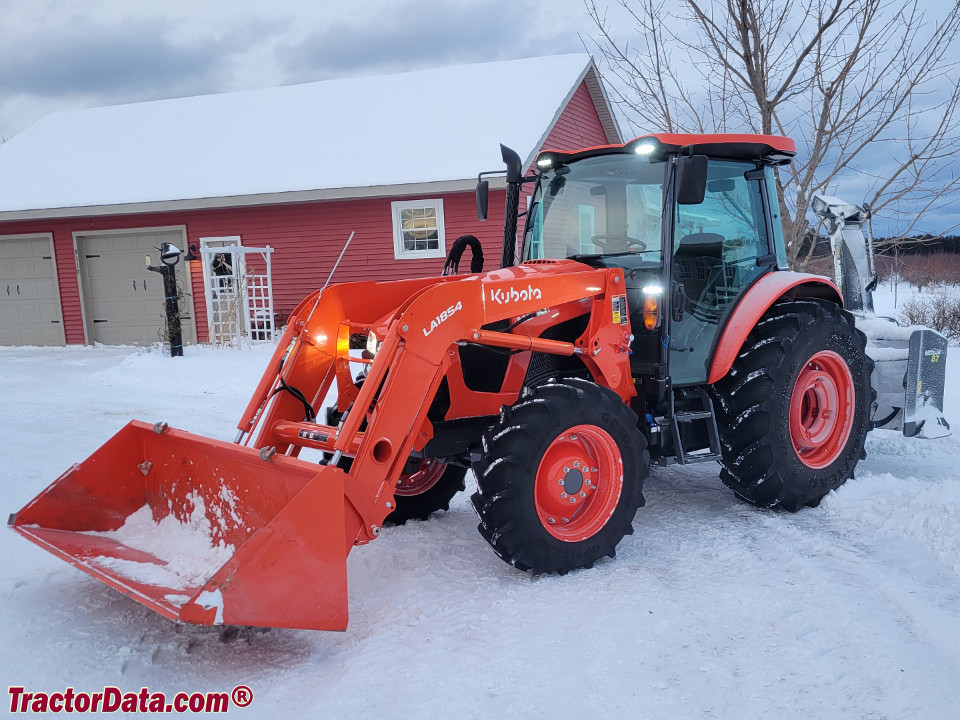

Kubota M5-091 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps60Reference
Cab Charging amps80Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
