Tractor · 2015Unverified

Kubota M5-111

Name: Kubota M5-111
Brand: Kubota

Kubota M5-111 — M5 Series · 106 hp. Reference specifications; pending source verification.

The Kubota M5-111 is a tractor with a rated power output of 106 hp, a mid-range figure for its class. This model was manufactured in 2015. It features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The tractor's operating weight ranges from 5754 to 7685 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

106 hp

Max power

73.0 kW

Weight

5754 to 7685 pounds

Catalogue coverage

Variants represented

Richest spec table

145 rows

Recorded power

106 hp

Transmissions

8-speed partially synchronized

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Ultra Grand Cab II available with air-conditioning.Reference

Variants

M5N-111narrow profileReference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank104.8 LReference

Exhaust fluid (DEF)12.1 LReference

Engine (gross)78.7 kWReference

Engine (net)74.6 kWReference

Kubota V3800CR-TIEF4Reference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooled inlineReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

EmissionsTier IVReference

Emission controldiesel particulate filter, diesel oxidation catalyst, and selective catalytic reductionReference

Power (net)74.6 kWReference

Power (gross)78.7 kWReference

Rated Power (gross)78.7 kWReference

Fuel systemcommon rail direct injectionReference

Pre-heatingintake heaterReference

Compression17.0:1Reference

ROPS Rated RPM2400Reference

Cab Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity10.7 LReference

Coolant capacity10.4 LReference

Max power73.0 kWReference

Power at rated engine speed72.4 kWReference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,600 rpmReference

AspirationTurbochargedReference

Cooling systemIntercoolerReference

Transmission

8-speed partially synchronizedReference

12-speed partially synchronizedReference

24-speed two-speed power shiftReference

Typepartially synchronizedReference

Gears8 forward and reverseReference

Clutchwet discReference

Oil capacity60.0 LReference

Four synchronized gears in two ranges with electro-hydraulic shuttle shift.Reference

Gears12 forward and reverseReference

Six synchronized gears in two ranges with electro-hydraulic shuttle shift.Reference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Six synchronized gears in two ranges with electro-hydraulic shuttle shift. Two-speed power shift.Reference

Transmission TypePower ShuttleReference

forward and reverse options24 x 24Reference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)66.4 kWReference

PTO (tested)73.0 kWReference

Typeopen centerReference

Valves1 to 3Reference

ROPS Pump flow60.2 lpmReference

Cab Pump flow64.3 lpmReference

ROPS Steering flow20.4 lpmReference

Cab Steering flow23.1 lpmReference

Rear TypeIIReference

Controlposition control and top-link draft sensingReference

Rear lift (at 24"/610mm)2350 kgReference

Rear lift (at 24"/610mm)3299 kgReference

Rear Armstelescopic lower link ends and stabilizersReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540Reference

Rear PTO Type540/540EReference

Engine RPM540@2035Reference

Engine RPM540E@1519Reference

Power at rated PTO speed66.1 kWReference

Dimensions

2WD Wheelbase228 cmReference

4WD Wheelbase225 cmReference

Weight5754 to 7685 poundsReference

Front tire7.5-18Reference

2WD Rear tire18.4-28Reference

2WD Standard tires (ag)Front: 7.5-18. Rear: 18.4-28Reference

4WD Standard tires (ag)Front: 11.2-24. Rear: 18.4-28Reference

2WD Length397 cmReference

4WD Length393 cmReference

2WD Width198 cmReference

4WD Width200 cmReference

2WD Clearance (front axle)52 cmReference

4WD Clearance (front axle)50 cmReference

2WD Front tread144 to 203 cmReference

4WD Front tread151 to 162 cmReference

Rear tread151 to 192 cmReference

2WD ROPS2610 kgReference

4WD ROPS2800 kgReference

2WD Cab3000 kgReference

4WD Cab3190 kgReference

4WD Cab Operating3485 kgReference

Max Drawbar1496 kgReference

2WD Max front axle2199 kgReference

4WD Max front axle2599 kgReference

Max rear axle3701 kgReference

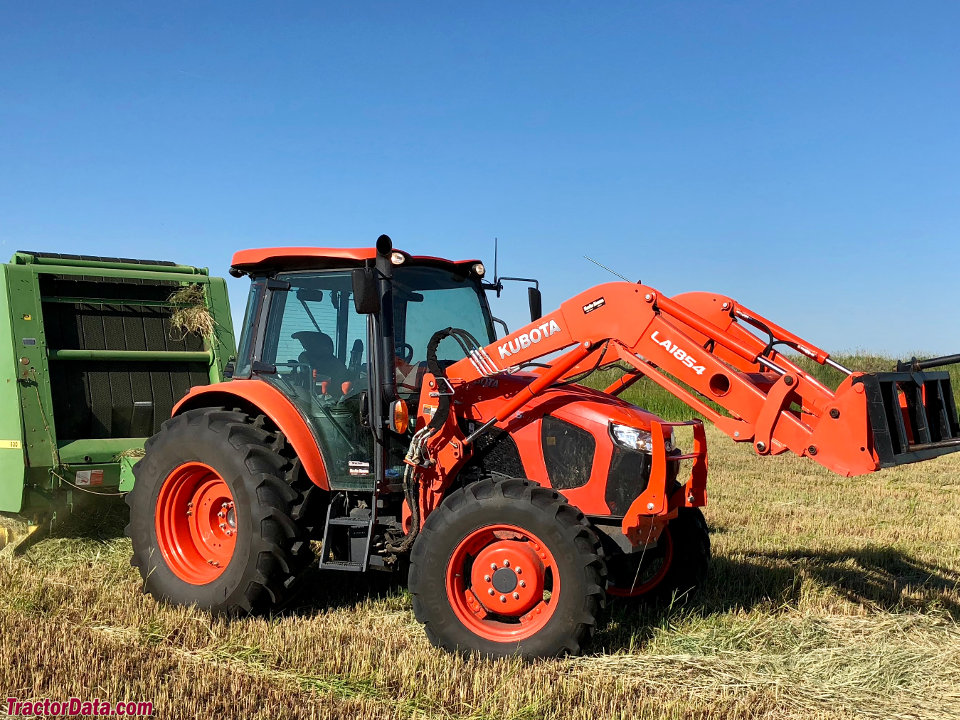

Kubota M5-111 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps60Reference

Cab Charging amps80Reference

Cab Charging amps100Reference

Battery CCA900Reference

Battery volts12Reference

Alternator size80 AReference

Kubota M5-111 Height

ROPS251 cmReference

Cab254 cmReference

Exhaust230 cmReference

Test results

Diesel 24-speed 4WDJune 6, 2016 - June 13, 2013Link: Nebraska Tractor Test 2152 fileReference

PTO performanceReference

Fuel use22.7 l/hourReference

Fuel use23.1 l/hourReference

Fuel use335.7 l/hourReference

Speeds

With 18.4-30 rear tires.Reference

General

Make & ModelKUBOTA @ V3,800CR-TIEF4Reference

Capacities

Capacity3,769 ccReference

Power

Rated Power105.6 hpReference

PTO

PTO Power89 hpReference

Rear PTO RPM540 rpmReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typeHydrostatic power steeringReference

Hydraulics

Pump Rated Output (total)64.3 l/minReference

Hydraulics TypeTelescopic lower link ends, Telescoping StabilizersReference

Remote Valves3Reference

Rear Hitch category (SAE designation)Cat IIReference

Rear Hitch Sensing Typedraft (top link sensing)Reference

Dimensions & weight

Wheelbase2,285 mmReference

Overall Height2,545 mmReference

Height Over Cab2,570 mmReference

Height Over ROPS2,535 mmReference

Overall Length3,975 mmReference

Overall Width2,010 mmReference

Front axle clearance520 mmReference

Turning radius4.2 mReference

Overall weight3,190.1 kgReference

Wheels & tyres

Rear Wheel TypeR1Reference

Front Wheel TypeR1/F2Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
