Tractor · 1986Unverified

Kubota M5030

Name: Kubota M5030
Brand: Kubota

Kubota M5030 — M30 Series · 50 hp. Reference specifications; pending source verification.

The Kubota M5030 is a compact tractor model, featuring a rated output of 50 hp. It was manufactured between 1986 and 1996. The tractor is equipped with a 6-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a 16-speed gearbox. Its listed weight ranges from 4188 to 4982 pounds, and it is suitable for use on plots of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Max power

30.8 kW

Weight

4188 to 4982 pounds

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

50 hp

Recorded weight

1899 kg

Transmissions

16-speed partially synchronized

Production years

1986-1996

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

The Kubota M5030 was available in both utility and low-profile chassis.Reference

Two- or four-wheel driveReference

Differential lockstandardReference

Power steeringReference

Differential mechanical wet disc brakesReference

Two-post ROPS.Reference

Variants

M5030F2WDReference

M5030DT4WDReference

Engine

Kubota 2.8L 6-cyl dieselReference

Engine40.3 kWReference

Drawbar (claimed)31.3 kWReference

Drawbar (tested)30.8 kWReference

Kubota S2802Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement2.8 LReference

Bore/Stroke85 x 82 mmReference

Power40.3 kWReference

Air cleanerdual dry elementReference

Rated RPM2600Reference

Starter volts12Reference

Oil capacity14.8 LReference

Coolant capacity8.2 LReference

Power at rated engine speed37.1 kWReference

Max power30.8 kWReference

Transmission

16-speed partially synchronizedReference

Typepartially synchronizedReference

Gears16 forward and 4 reverseReference

Clutchdry plateReference

2WD Oil capacity48.0 LReference

4WD Oil capacity56.5 LReference

PTO & Hydraulics

PTO (claimed)36.5 kWReference

PTO (tested)37.1 kWReference

2WD Hydraulic system48.1 LReference

4WD Hydraulic system56.4 LReference

Typeopen centerReference

2WD Capacity48.1 LReference

4WD Capacity56.4 LReference

Pressure181.3 barReference

Valves1Reference

Total flow41.6 lpmReference

Rear TypeII/IReference

Rear lift (at ends)1799 kgReference

Rear lift (at 24"/610mm)1500 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Power at rated PTO speed36.5 kWReference

Capacities

Fuel64.0 LReference

Dimensions

2WD Wheelbase199 cmReference

4WD Wheelbase200 cmReference

Weight4188 to 4982 poundsReference

Front tire6.00-16Reference

2WD Rear tire14.9-28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 9.5-22. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 6.50-15. Rear: 14.9-24 (2WD Low Profile)Reference

4WD Standard tires (ag)Front: 9.5-16. Rear: 13.6-24 (4WD Low Profile)Reference

2WD Optional tires (ag)Front: 6.50-16. Rear: 16.9-28Reference

4WD Optional tires (ag)Front: 9.5-22. Rear: 16.9-28Reference

4WD Optional tires (ag)Front: 9.00-10. Rear: 18.4-16 (2WD Low Profile)Reference

2WD Length342 cmReference

4WD Length350 cmReference

Width190 cmReference

Width186 cmReference

2WD Weight1899 kgReference

4WD Weight2259 kgReference

2WD Ground clearance48 cmReference

4WD Ground clearance43 cmReference

4WD Ground clearance38 cmReference

4WD Ground clearance36 cmReference

2WD Front tread139 to 199 cmReference

4WD Front tread133 to 151 cmReference

Rear tread152 to 192 cmReference

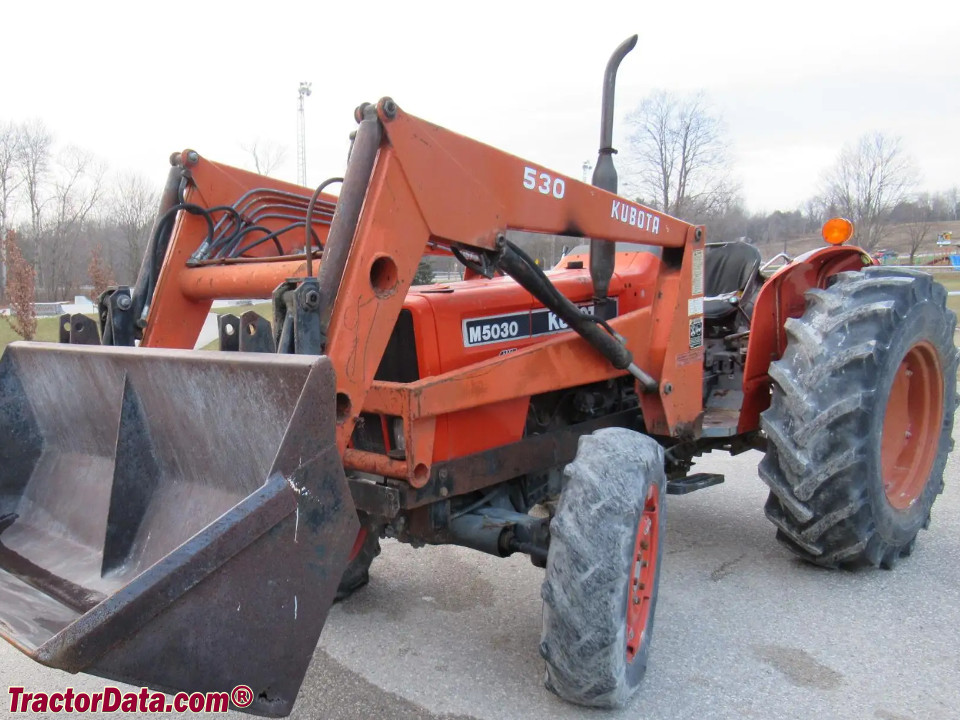

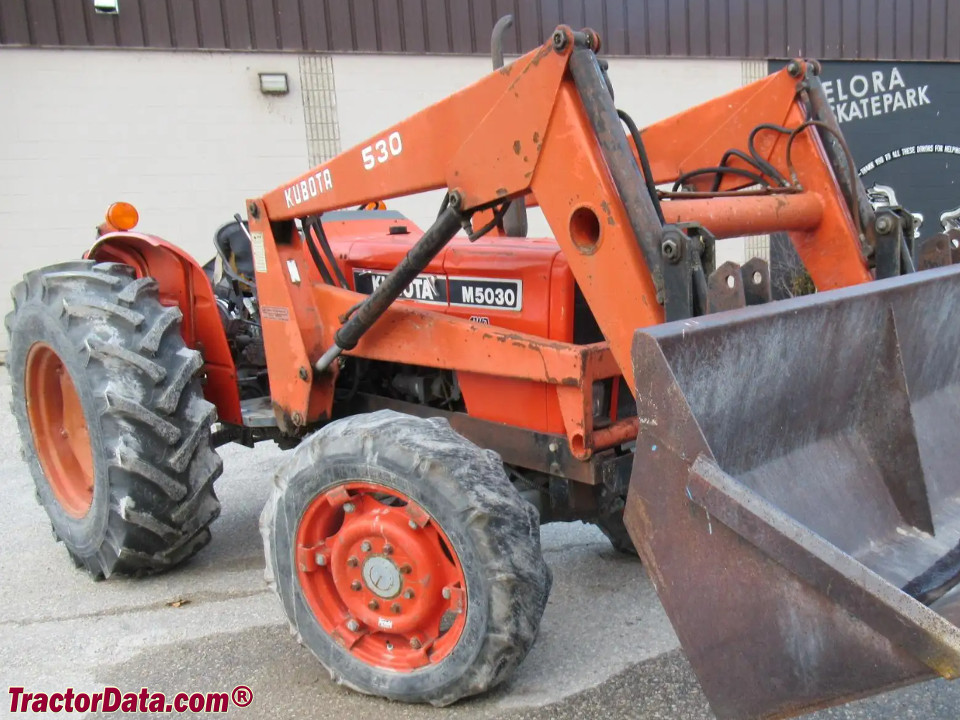

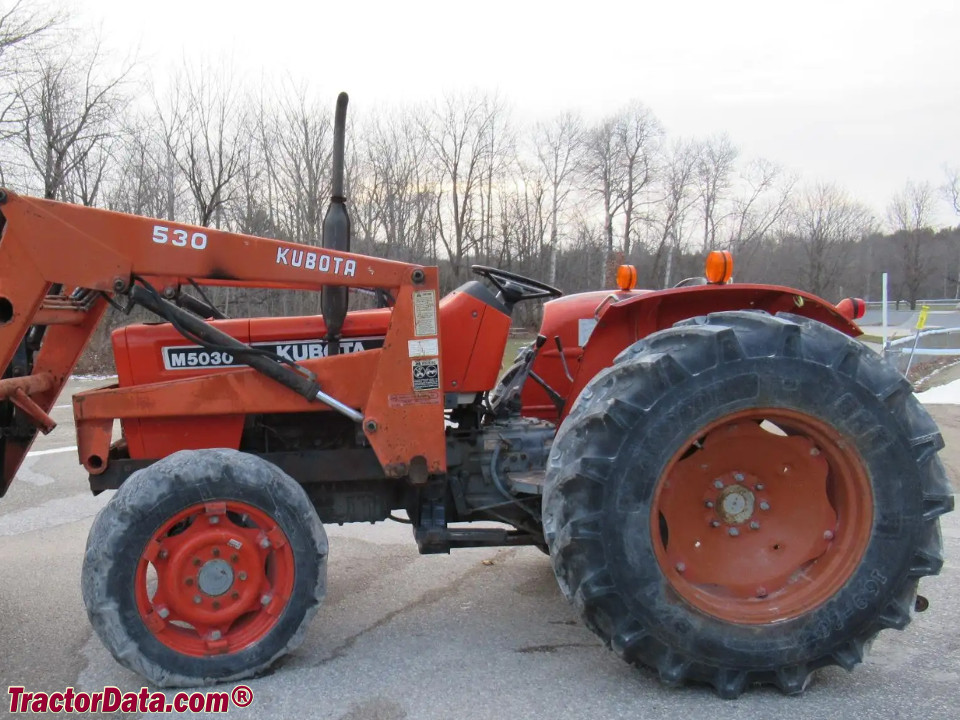

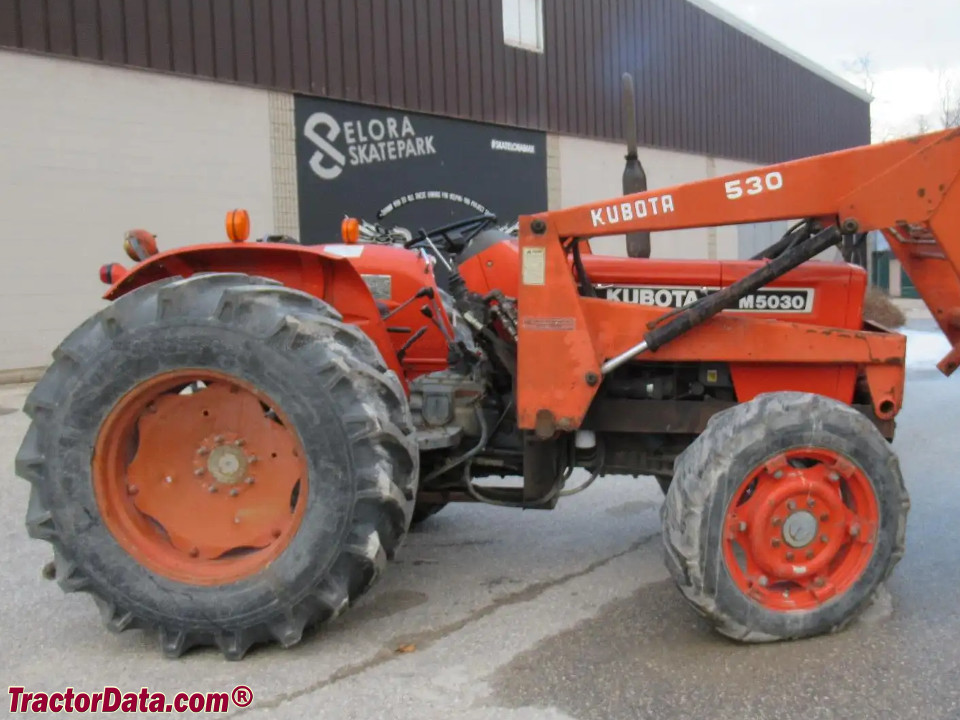

Kubota M5030 attachments

front-end loaderReference

M5030 Serial Number Location

Serial number plate on the left side of the transmission housing.Reference

Attachment overview

Kubota M1000 loaderReference

Kubota M1870A loaderReference

Kubota M5030 Height

Hood142 cmReference

Hood134 cmReference

Exhaust227 cmReference

Test results

Diesel 16-speed 4WDMay 12 - 22, 1986Link: Nebraska Tractor Test 1595 fileReference

PTO performanceReference

Fuel use11.4 l/hourReference

Fuel use10.6 l/hourReference

Drawbar performanceReference

Max pull2723 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
