Tractor · 2007Unverified

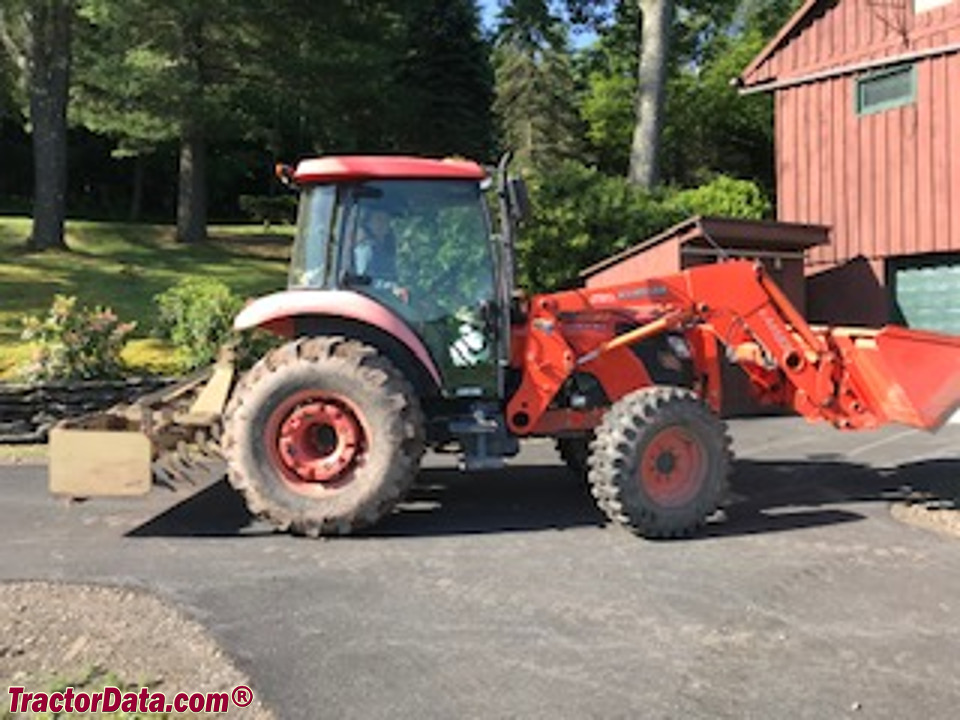

Kubota M5040
Kubota M5040 — Utility tractor · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
3748 to 4553 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioningReference
Engine
Kubota 3.0L 4-cyl dieselReference
ROPS Fuel tank70.0 LReference
Cab Fuel tank110.1 LReference
Engine (net)37.7 kWReference
Kubota V3007-DIReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.0 LReference
Bore/Stroke94 x 109 mmReference
EmissionsTier IIReference
Power (net)37.7 kWReference
Air cleanerdual element dryReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
8-speed power shuttleReference
12-speed creeperReference
TransmissionSynchro-ShuttleReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutch275mm dry discsReference
Four gears in high and low ranges.Reference
TransmissionHydraulic ShuttleReference
Typepower shuttleReference
Clutch125mm wet discsReference
Hydraulic shuttle only available on cab models.Reference
TypecreeperReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Typeopen centerReference
Pressure191.0 barReference
Valves1 to 2Reference
Pump flow41.6 lpmReference
Steering flow23.1 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Dimensions
4WD ROPS Wheelbase204 cmReference
2WD ROPS Wheelbase208 cmReference
4WD Cab Wheelbase211 cmReference
2WD Cab Wheelbase214 cmReference
Weight3748 to 4553 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-28Reference
Weight895 kgReference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 16.9-28Reference
2WD Length356 cmReference
4WD Length344 cmReference
Width185 cmReference
Height (ROPS)242 cmReference
Height (cab)249 cmReference
Ground clearance41 cmReference
2WD ROPS1700 kgReference
4WD ROPS1799 kgReference
4WD Cab1965 kgReference
4WD Cab2065 kgReference
Kubota M5040 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Battery CCA900Reference
Battery volts12Reference
Attachment overview
Kubota LA1153 Height Position loaderReference
Kubota LA1153 Power Position loaderReference
BackhoeReference
Kubota M4011 Backhoe
Backhoe typeKubota M4011 BackhoeReference
Transport height275 cmReference
Digging depth338 cmReference
Reach from pivot439 cmReference
Loading height248 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2797 kgReference
Dipperstick force1886 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
