Tractor · 2018Unverified

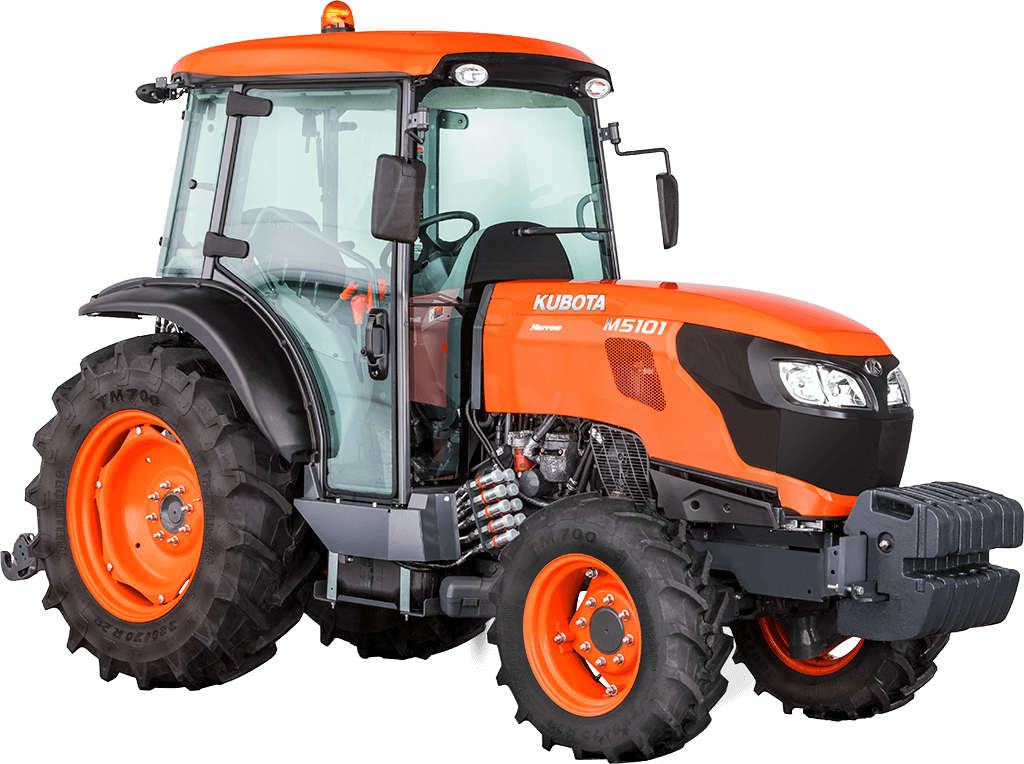

Kubota M5101N

Name: Kubota M5101N
Brand: Kubota

Kubota M5101N — M5001 Series · 103 hp. Reference specifications; pending source verification.

The Kubota M5101N is a tractor with a rated power of 103 hp, positioning it within the mid-range of its class. Built in 2018, it features a 4-cylinder diesel liquid-cooled engine and four-wheel drive, paired with an 18-speed gearbox. The operating weight of the Kubota M5101N falls within a range of 5512 to 5952 pounds. It is suitable for operations spanning an area of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

103 hp

Weight

5512 to 5952 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

103 hp

Recorded weight

2500 kg

Transmissions

18-speed

Production years

2018-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Orchard/Vineyard tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post mid-mount folding ROPS. Cab optional.Reference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank76.1 LReference

Engine (gross)76.8 kWReference

Kubota V3800Reference

dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

ROPS Rated Power (gross)76.8 kWReference

Cab Rated Power (gross)78.3 kWReference

ROPS Rated RPM2400Reference

Cab Rated RPM2600Reference

Torque341.7 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

18-speedReference

36-speedReference

Gears18 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Gears36 forward and reverseReference

PTO & Hydraulics

Valves2 to 5Reference

ROPS Pump flow62.8 lpmReference

Cab Pump flow68.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)2300 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type1000Reference

Dimensions

Wheelbase213 cmReference

Weight5512 to 5952 poundsReference

Front tire280/70R18Reference

Rear tire440/65R28Reference

Standard tires (ag)Front: 280/70R18. Rear: 440/65R28Reference

Length394 cmReference

Width124 cmReference

Height (steering wheel)141 cmReference

Height (cab)235 cmReference

ROPS Weight2500 kgReference

Cab Weight2699 kgReference

Front tread103 to 132 cmReference

Rear tread93 to 146 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
