Tractor · 2010Unverified

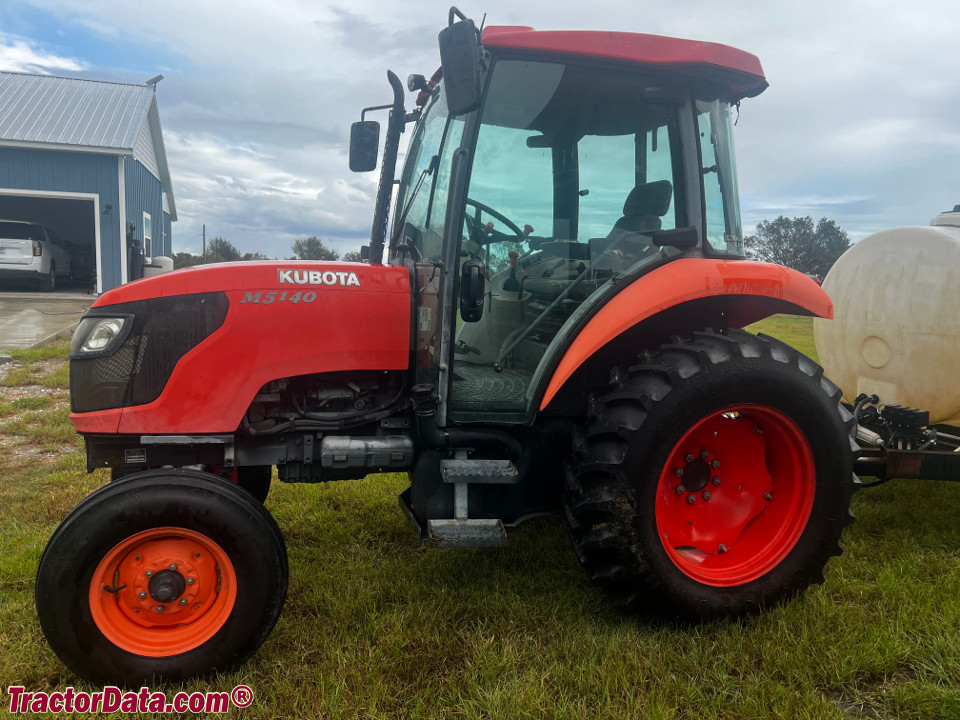

Kubota M5140

Name: Kubota M5140
Brand: Kubota

Kubota M5140 — M40 Series · 52 hp. Reference specifications; pending source verification.

The Kubota M5140 is a compact tractor with a rating of 52 hp. Manufactured from 2010 to 2013, it features a 4-cylinder turbocharged diesel liquid-cooled engine. This engine drives through a mechanical front-wheel drive system with a hydrostatic transmission. The M5140 has a listed weight of 4240 to 5160 pounds and is suited for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Max power

52 hp

Weight

4240 to 5160 pounds

Catalogue coverage

Variants represented

Richest spec table

128 rows

Recorded power

52 hp

Transmissions

8-speed partially synchronized

Production years

2010-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Original price$21,432 (2011)Reference

Drive4x2 2WDReference

Drive4X4 MFWD 4WDReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioningReference

Variants

M5140F2WD ROPS sync-shuttleReference

M5140FC2WD cab sync-shuttleReference

M5140DT4WD ROPS sync-shuttleReference

M5140HD4WD ROPS hyd-shuttleReference

M5140DTC4WD cab sync-shuttleReference

M5140HDC4WD cab hyd-shuttleReference

Engine

Kubota 2.4L 4-cyl dieselReference

Engine (net)38.8 kWReference

Kubota V2403-DI-TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

EmissionsInterim Tier IVReference

Emission controlEGRReference

Power (net)38.8 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity8.0 LReference

Coolant capacity6.2 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Emissions complianceInterim Tier IV | EGRReference

Cooling systemliquid-cooledReference

Transmission

8-speed partially synchronizedReference

8-speed power shuttleReference

TransmissionSynchro-ShuttleReference

Typepartially synchronizedReference

Gears8 forward and reverseReference

Clutchdry plateReference

Oil capacity40.1 LReference

Four gears with high and low ranges. Gears and forward-reverse shuttle shifting are synchronized.Reference

TransmissionHydraulic-ShuttleReference

Typepower shuttleReference

Clutchwet discsReference

Four gears with high and low ranges. Clutchless power shuttle shifting between forward and reverse. Gears (1-4) are synchronized.Reference

Transmission TypeSync ShuttleReference

forward and reverse optionssemi synchronized -8F and 8R | power shuttle - 8F and 8RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)34.3 kWReference

Hydraulic system40.1 LReference

Typeopen centerReference

Capacity40.1 LReference

Valves1 to 3Reference

Pump flow41.6 lpmReference

Total flow65.1 lpmReference

Steering flow23.1 lpmReference

Rear TypeII/IReference

Rear lift (at ends)1905 kgReference

Rear lift (at 24"/610mm)1500 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2295Reference

Capacities

Fuel70.0 LReference

Fuel90.1 LReference

Front axle8.0 LReference

Fuel tank90.1 LReference

Crankcase oil volume8.5 qtsReference

Dimensions

Weight4240 to 5160 poundsReference

Front tire6.50-15Reference

Rear tire14.9-28 (2WD)Reference

Standard tires (ag)Front: 6.50-15. Rear: 14.9-28 (2WD)Reference

Standard tires (ag)Front: 9.5-24. Rear: 14.9-28 (4WD)Reference

Optional tires (ag)Front: 7.50-16. Rear: 16.9-28 (2WD)Reference

Optional tires (ag)Front: 9.5L-15. Rear: 14.9-28 (2WD)Reference

Optional tires (ag)Front: 9.5L-15. Rear: 16.9-28 (2WD)Reference

Lawn/turf front29x12.5-15Reference

Lawn/turf front305R343Reference

Lawn/turf front27x9.5-15Reference

Lawn/turf rear21.5L-16.1Reference

Lawn/turf rear570-648Reference

Lawn/turf rear16.9-24Reference

Length344 cmReference

Length350 cmReference

Length356 cmReference

Length362 cmReference

Height (ROPS)208 cmReference

Height (cab)214 cmReference

Front tread141 to 182 cmReference

Front tread141 to 151 cmReference

Rear tread132 to 171 cmReference

1923 kgReference

2063 kgReference

2199 kgReference

2340 kgReference

Kubota M5140 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45 (ROPS)Reference

Charging amps60 (cab)Reference

Battery volts12Reference

Attachment overview

Kubota LA1153 Height Position loaderReference

Kubota LA1153 Power Position loaderReference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPS with optional canopyReference

Power

Max Power52 hpReference

PTO

PTO Power46 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,295 RPMReference

Steering & brakes

BrakesMechanical wet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)17.2 gpmReference

Hydraulics Typeopen centerReference

Remote Valves1 to 3 ValvesReference

Steering & Implements flow6.1 gpm (11 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity1,905.1 kgReference

Dimensions & weight

Height Over Cab214.4 cmReference

Height Over ROPS208.5 cmReference

Overall Length362.5 cmReference

Overall weight1,923.2 kgReference

Wheels & tyres

Rear Wheel Type14.9-28Reference

Rear wheel tread range52 to 67.7 inchesReference

Front Wheel Type6.50-15Reference

Front Wheel tread range55.9 to 71.7 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
