Tractor · 1984Unverified

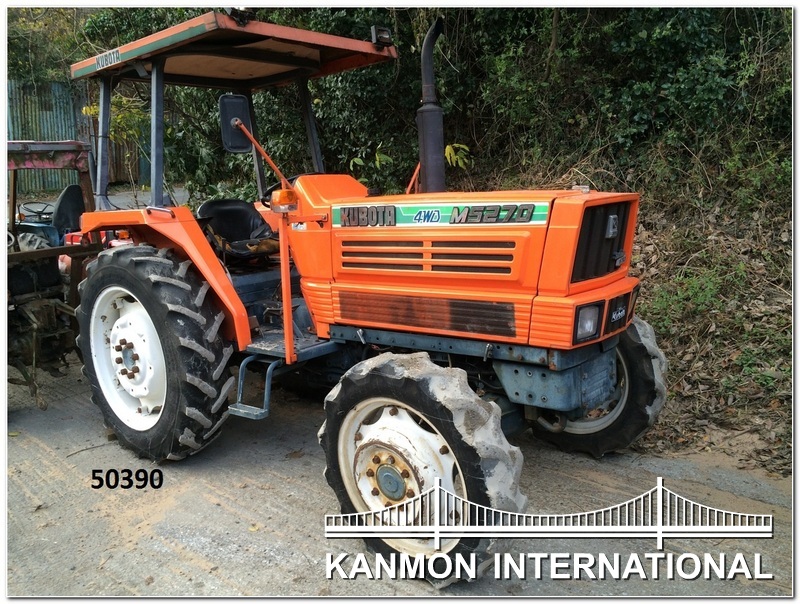

Kubota M5270

Name: Kubota M5270
Brand: Kubota

Kubota M5270 — M70 Series · 50 hp. Reference specifications; pending source verification.

The Kubota M5270 is a tractor model with a rated output of 50 hp, classifying it as one of the more compact options in its class. It was manufactured between 1984 and 1988. The tractor is powered by a 3-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a 16-speed gearbox. Its listed weight range is 5049 to 5688 pounds, with an intended application of around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Weight

5049 to 5688 pounds

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

50 hp

Recorded weight

2290 kg

Transmissions

16-speed

Production years

1984-1988

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Two- or four-wheel driveReference

Engine

Kubota 3.0L 3-cyl dieselReference

Fuel tank70.0 LReference

Engine39.1 kWReference

Kubota D3000Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.0 LReference

Bore/Stroke105 x 115 mmReference

Power39.1 kWReference

Rated RPM2400Reference

Torque192.6 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Oil capacity9.8 LReference

Coolant capacity11.6 LReference

Transmission

16-speedReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)36.9 kWReference

Pump flow35.0 lpmReference

Rear TypeJISII/IReference

Rear lift1900 kgReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2194Reference

Engine RPM1000@2530Reference

Dimensions

2WD Wheelbase210 cmReference

4WD Wheelbase211 cmReference

Weight5049 to 5688 poundsReference

Front tire6.00-16Reference

2WD Rear tire12.4-32Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4-32Reference

4WD Standard tires (ag)Front: 8.3-24. Rear: 12.4-32Reference

Length364 cmReference

2WD Width164 cmReference

4WD Width181 cmReference

2WD Weight2290 kgReference

4WD Weight2580 kgReference

Ground clearance36 cmReference

2WD Front tread121 to 182 cmReference

4WD Front tread141/151 cmReference

4WD Front tread133 to 162 cmReference

Rear tread121 to 192 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Kubota M5270 Height

2WD ROPS241 cmReference

4WD ROPS242 cmReference

Exhaust227 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
