Tractor · 1995Unverified

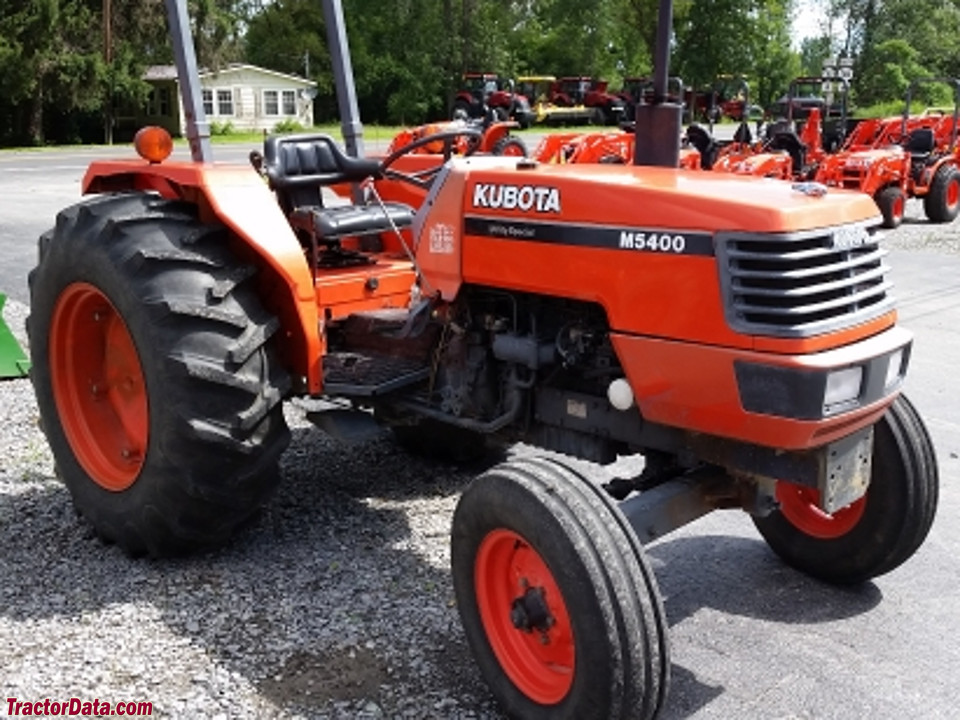

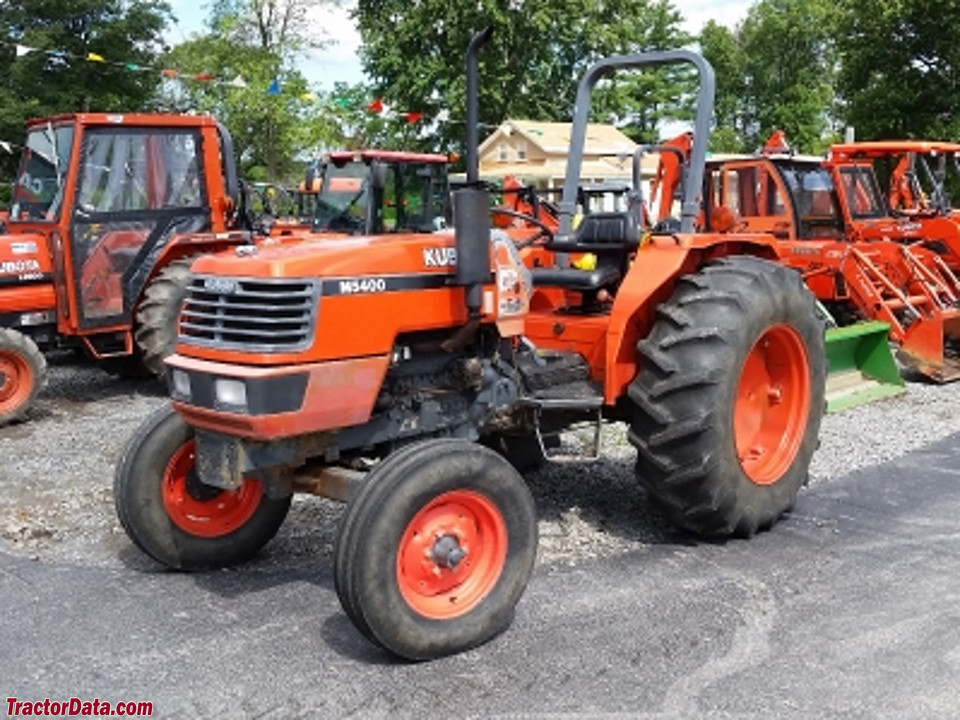

Kubota M5400

Name: Kubota M5400
Brand: Kubota

Kubota M5400 — M Series · 58 hp. Reference specifications; pending source verification.

The Kubota M5400 is a tractor with a rated power output of 58 hp, positioning it at the lighter end of its class. It was manufactured from 1995 to 1999. It features a 5-cylinder diesel liquid-cooled engine paired with four-wheel drive and an 8-speed gearbox. The tractor's operating weight is listed as 3858 to 4078 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

58 hp

Weight

3858 to 4078 pounds

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

58 hp

Recorded weight

1749 kg

Transmissions

8-speed partially synchronized

Production years

1995-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPSReference

Variants

M5400DT-Nnarrow profileReference

Engine

Kubota 2.7L 5-cyl dieselReference

Fuel tank65.1 LReference

Engine (gross)43.3 kWReference

Engine (net)40.3 kWReference

Kubota F2803Reference

dieselReference

5-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke87 x 92 mmReference

Power (net)40.3 kWReference

Power (gross)43.3 kWReference

Rated RPM2700Reference

Torque174.9 NmReference

Torque RPM1600Reference

Starter volts12Reference

Coolant capacity8.0 LReference

Oil capacity8.0 LReference

Oil change100 hReference

Fuel TypeDieselReference

No of Cylinders5-cylinderReference

Rated engine speed2,700Reference

Engine torque at rated speed58.5 kgReference

Bore and stroke3.43x3.64 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed partially synchronizedReference

12-speed creeperReference

Typepartially synchronizedReference

Gears8 forward and 4 reverseReference

Clutchdry discReference

Oil capacity40.0 LReference

Oil typeKubota Super UDTReference

Four gears (1-4) in two ranges (low/high) plus reverse range. Synchronized shifting between gears 3 and 4.Reference

TypecreeperReference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)37.3 kWReference

Typeopen centerReference

Valves1Reference

Pump flow41.6 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift (at ends)1905 kgReference

Rear lift (at 24"/610mm)1500 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2295Reference

Dimensions

Wheelbase199 cmReference

Weight3858 to 4078 poundsReference

Front tire7.5-16Reference

2WD Rear tire16.9-28Reference

2WD Standard tires (ag)Front: 7.5-16. Rear: 16.9-28Reference

4WD Standard tires (ag)Front: 9.5-22. Rear: 16.9-28Reference

Length349 cmReference

DT-N Length341 cmReference

Width184 cmReference

DT-N Width121 cmReference

Height (ROPS)238 cmReference

2WD Weight1749 kgReference

4WD Weight1849 kgReference

Ground clearance45 cmReference

DT-N Ground clearance35 cmReference

Kubota M5400 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery CCA615Reference

Battery volts12Reference

Total cold cranking amps615Reference

Speeds

With 16.9-28 rear tires.Reference

General

Make & ModelKubotaReference

Country of manufacturerUtility tractorReference

Capacities

Capacity167.6 ciReference

Crankcase oil volume8.5 qtsReference

Power

Rated Power54 hpReference

PTO

Rear PTO PowerAvailableReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1Reference

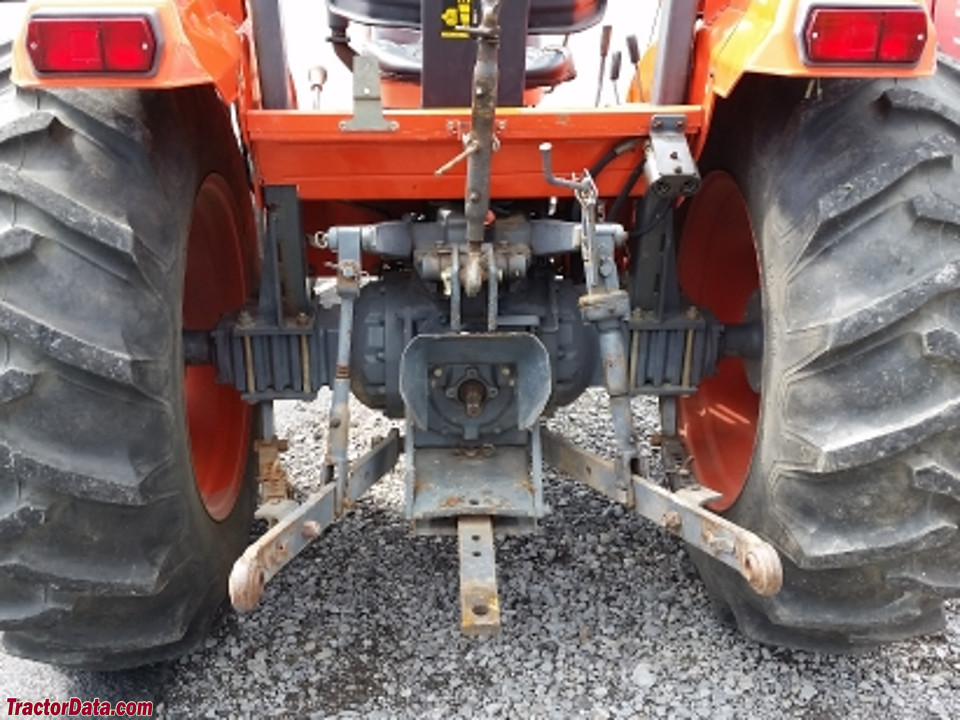

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity1,905.1 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Height238.8 cmReference

Overall Length349.5 cmReference

Overall Width184.9 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialTwo-post ROPSReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
