Tractor · 2009Unverified

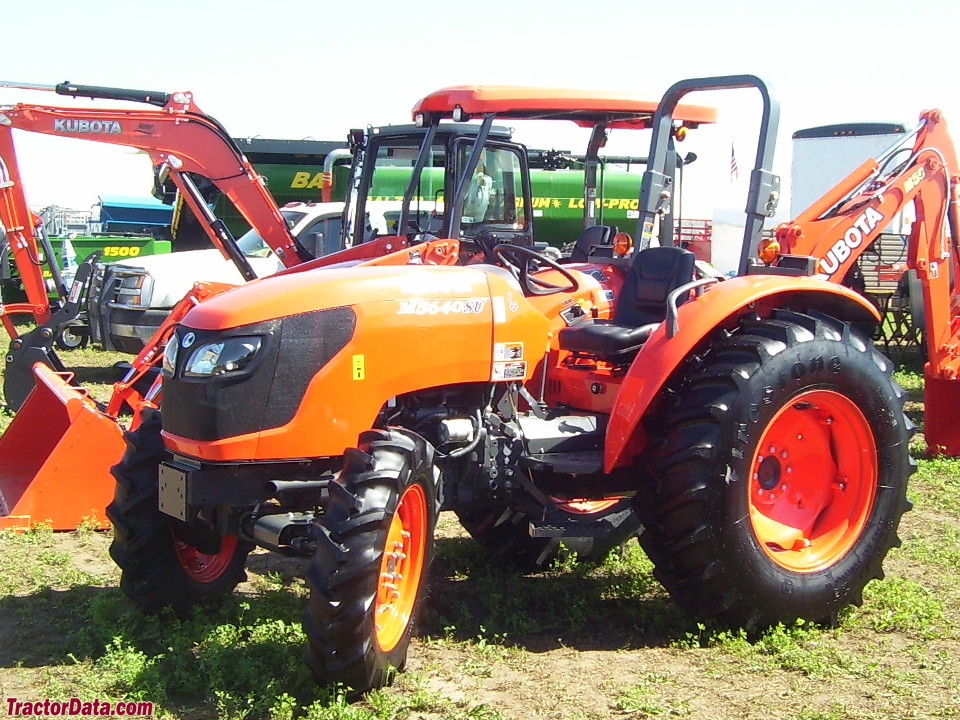

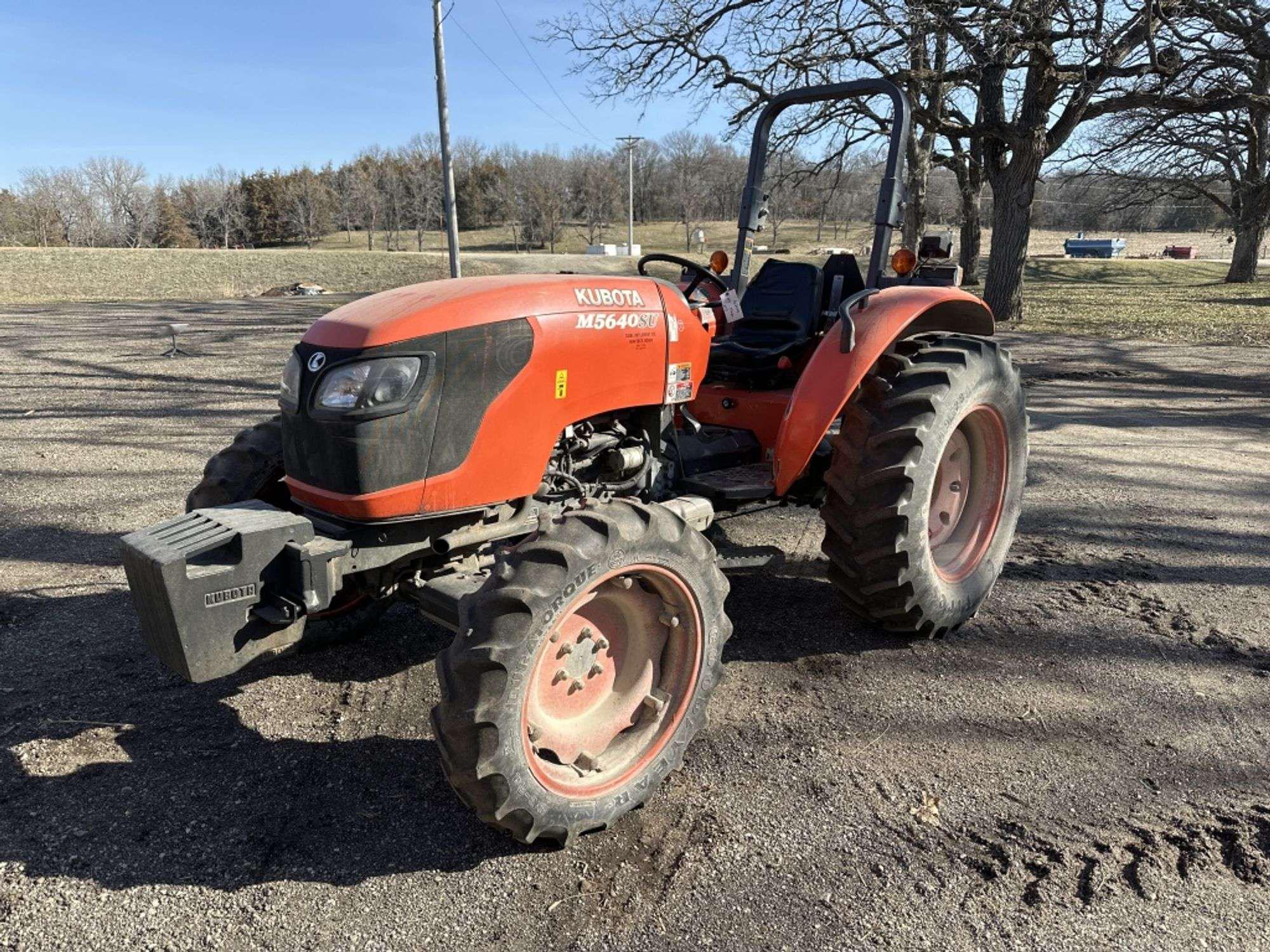

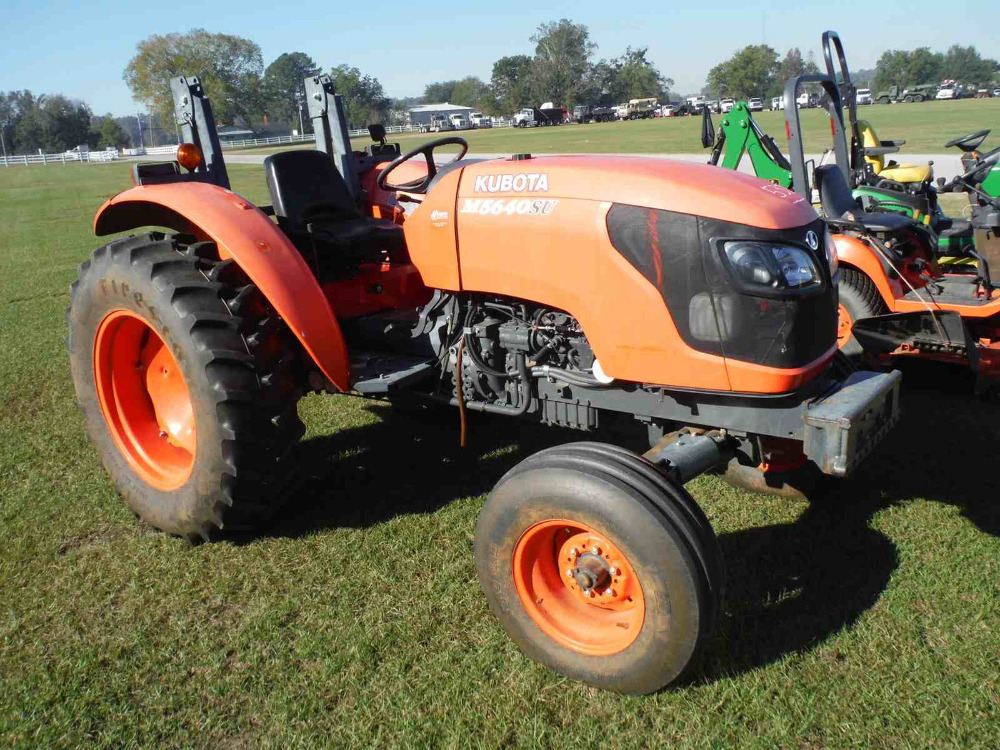

Kubota M5640SU

Name: Kubota M5640SU
Brand: Kubota

Kubota M5640SU — Utility tractor · 56 hp. Reference specifications; pending source verification.

The Kubota M5640SU is a compact tractor with a rated output of 56 hp. It was manufactured in 2009. The M5640SU features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a mechanical front-wheel drive system and hydrostatic transmission. Its weight falls within the range of 3747 to 3858 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

56 hp

Max power

56 hp

Weight

3747 to 3858 pounds

Catalogue coverage

Variants represented

Richest spec table

133 rows

Recorded power

56 hp

Recorded weight

1699 kg

Transmissions

8-speed partially synchronized

Production years

2009-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Original price$19,540 (2011)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post foldable ROPS. Optional canopy.Reference

Variants

M5640SU2WDReference

M5640SUD4WDReference

Engine

Kubota 2.4L 4-cyl dieselReference

Engine (net)41.8 kWReference

Kubota V2403-TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

EmissionsInterim Tier IVReference

Power (net)41.8 kWReference

Air cleanerdual dry elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Oil capacity7.2 LReference

Coolant capacity7.0 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,700 RPMReference

Emissions complianceInterim Tier IVReference

Cooling systemliquid-cooledReference

Transmission

8-speed partially synchronizedReference

Typepartially synchronizedReference

Gears8 forward and 4 reverseReference

Clutch275mm dry discReference

Oil capacity40.1 LReference

Four gears in high, low, and reverse ranges. Synchronized forward-reverse shuttle shifting in low range, and synchronized shifting between gears 3 and 4.Reference

Transmission TypeSync ShuttleReference

forward and reverse optionssemi synchronized - 8F and 4RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)37.3 kWReference

Hydraulic system40.1 LReference

Typeopen centerReference

Capacity40.1 LReference

Valves0 to 2Reference

Pump flow41.6 lpmReference

Total flow64.7 lpmReference

Steering flow23.1 lpmReference

Rear TypeII/IReference

Rear lift (at ends)1905 kgReference

Rear lift (at 24"/610mm)1500 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@2295Reference

Capacities

Fuel49.6 LReference

Front axle8.0 LReference

Fuel tank49.6 LReference

Crankcase oil volume7.6 qtsReference

Dimensions

Wheelbase199 cmReference

Weight3747 to 3858 poundsReference

Front tire6.50-16Reference

Rear tire14.9-28 (2WD)Reference

Standard tires (ag)Front: 6.50-16. Rear: 14.9-28 (2WD)Reference

Standard tires (ag)Front: 8.3-24. Rear: 14.9-28 (4WD)Reference

Optional tires (ag)Front: 7.50-16. Rear: 16.9-28 (2WD)Reference

Optional tires (ag)Front: 9.5L-15. Rear: 14.9-28 (2WD)Reference

Optional tires (ag)Front: 9.5L-15. Rear: 16.9-28 (2WD)Reference

Optional tires (ag)Front: 9.5-16. Rear: 18.4-16.1 (4WD)Reference

Optional tires (ag)Front: 9.5-22. Rear: 14.9-28 (4WD)Reference

Optional tires (ag)Front: 9.5-22. Rear: 16.9-28 (4WD)Reference

Lawn/turf front9.00-10 (2WD)Reference

Lawn/turf front305R343 (2WD)Reference

Lawn/turf front29x12.5-15Reference

Lawn/turf rear16.9-24 (2WD)Reference

Lawn/turf rear570-648 (2WD)Reference

Lawn/turf rear21.5L-16Reference

Industrial front12.5/80-18 (4WD)Reference

Industrial rear16.9-24 (4WD)Reference

Length345 cmReference

Length334 cmReference

Width170 cmReference

Height (ROPS)235 cmReference

Weight1699 kgReference

Weight1749 kgReference

Clearance (front axle)45 cmReference

Front tread141 to 151 cmReference

Front tread133 to 143 cmReference

Rear tread131 to 171 cmReference

Kubota M5640SU attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA582Reference

Battery volts12Reference

Total cold cranking amps582 CCAReference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width76 cmReference

Digging depth276 cmReference

Reach from pivot372 cmReference

Loading height242 cmReference

Bucket force1755 kgReference

Dipperstick force1176 kgReference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post foldable ROPS. Optional canopy.Reference

Power

Max Power56 hpReference

PTO

PTO Power50 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,295 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)17.1 gpmReference

Hydraulics Typeopen centerReference

Remote Valves0 to 2 ValvesReference

Steering & Implements flow6.1 gpm (11 gpm)Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity1,905.1 kgReference

Dimensions & weight

Height Over ROPS236 cmReference

Overall Length345.4 cmReference

Overall Width170.9 cmReference

Front axle clearance45.5 cmReference

Overall weight1,699.6 kgReference

Wheels & tyres

Rear Wheel Type14.9-28Reference

Rear wheel tread range51.9 to 67.7 inchesReference

Front Wheel Type6.50-16Reference

Front Wheel tread range55.9 to 59.8 inchesReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
