Tractor · 2015Unverified
Kubota M5660SU
Kubota M5660SU — Utility tractor · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
4189 to 4387 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post foldable ROPS.Reference
Variants
M5660SUH2WDReference
M5660SUHD4WDReference
Engine
Kubota 2.4L 4-cyl dieselReference
Fuel tank67.0 LReference
Engine (gross)43.2 kWReference
Engine (net)41.8 kWReference
Kubota V2403-CR-TE4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
EmissionsTier 4Reference
Emission controldiesel particulate filter (DPF)Reference
Power (net)41.8 kWReference
Rated Power (gross)43.2 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutchwet discReference
Four synchronized gears in two ranges with hydraulic shuttle.Reference

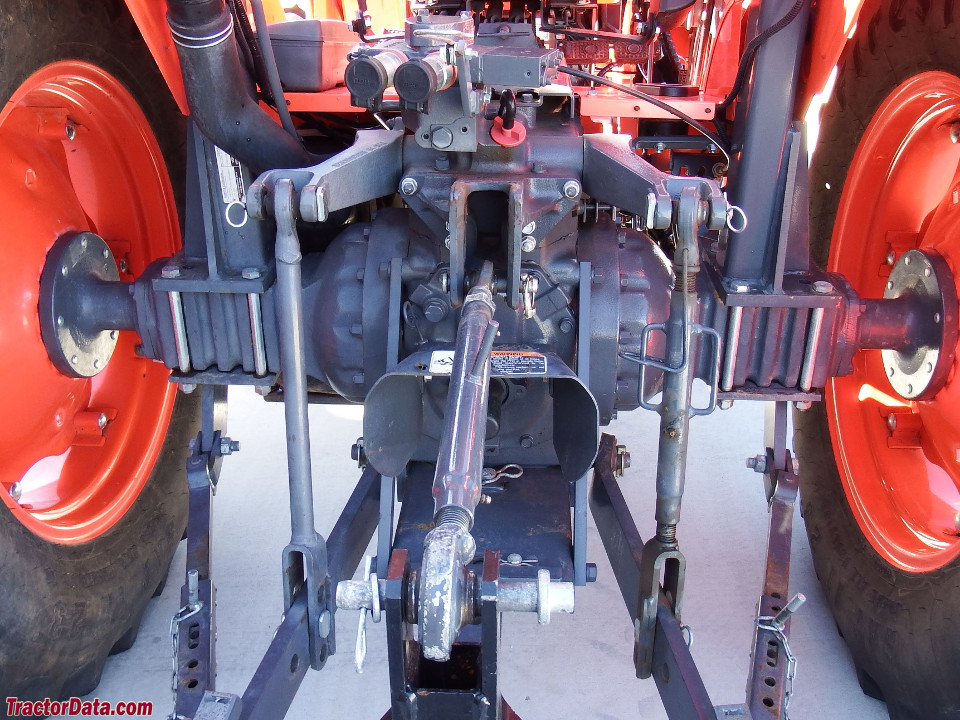

PTO & Hydraulics
PTO (claimed)37.3 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow40.1 lpmReference
Rear TypeII/IReference
Controlposition controlReference
Rear lift (at 24"/610mm)1500 kgReference
Rear Armstelescoping lower linksReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/540E (1.375)Reference
Dimensions
2WD Wheelbase208 cmReference
4WD Wheelbase204 cmReference
Weight4189 to 4387 poundsReference
Front tire6.5-16Reference
2WD Rear tire14.9-28Reference
2WD Standard tires (ag)Front: 6.5-16. Rear: 14.9-28Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 14.9-28Reference
2WD Length352 cmReference
4WD Length345 cmReference
Width185 cmReference
Height (ROPS)242 cmReference
2WD Weight1900 kgReference
4WD Weight1989 kgReference
Ground clearance41 cmReference
2WD Front tread141/182 cmReference
4WD Front tread130/139 cmReference
Rear tread132/171 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
