Tractor · 2001Unverified

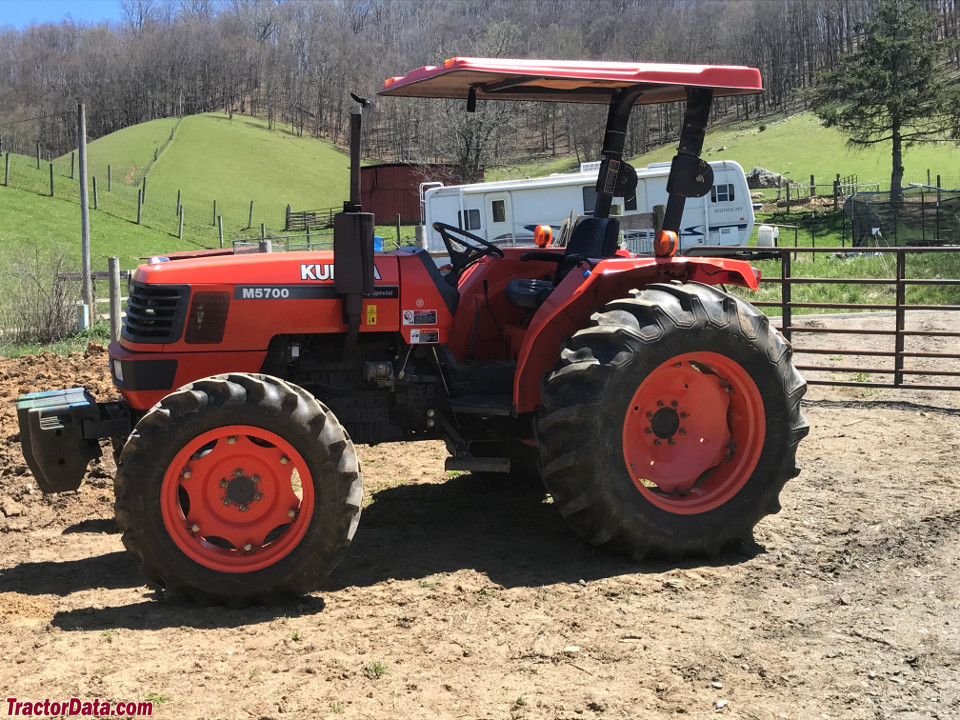

Kubota M5700
Kubota M5700 — M Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Max power
35.9 kW
Weight
3858 to 4608 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 2.7L 5-cyl dieselReference
Engine45.9 kWReference
Drawbar (tested)35.9 kWReference
Kubota F2803Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke87 x 92 mmReference
Power45.9 kWReference
Fuel systemindirect injectionReference
Air cleanertwo paper elementsReference
Compression23:1Reference
Rated RPM2800Reference
Starter volts12Reference
Oil capacity8.0 LReference
Coolant capacity8.0 LReference
Power at rated engine speed39.2 kWReference
Max power35.9 kWReference
Transmission
8-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Four synchronized gears in two range with synchronized shuttle.Reference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
PTO (tested)39.2 kWReference
Hydraulic system51.9 LReference
Typeopen centerReference
Capacity51.9 LReference
Valves1 to 3Reference
Pump flow41.6 lpmReference
Rear TypeII/IReference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)1288 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed37.6 kWReference
Capacities
ROPS Fuel65.1 LReference
Cab Fuel95.0 LReference
Dimensions
ROPS Wheelbase199 cmReference
Cab Wheelbase207 cmReference
Weight3858 to 4608 poundsReference
Front tire7.50-16Reference
Rear tire16.9-28Reference
Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
Standard tires (ag)Front: 9.5-22. Rear: 16.9-28 (4WD)Reference
2WD ROPS Length349 cmReference
4WD ROPS Length340 cmReference
2WD Cab Length357 cmReference
4WD Cab Length347 cmReference
Width184 cmReference
Height (ROPS)237 cmReference
Height (cab)251 cmReference
2WD Front tread141 to 182 cmReference
4WD Front tread132 to 143 cmReference
Rear tread141 to 171 cmReference
2WD ROPS Shipping1749 kgReference
4WD ROPS Shipping1849 kgReference
2WD Cab Shipping2019 kgReference
4WD Cab Shipping2090 kgReference
Ballasted3206 kgReference
Kubota M5700 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDFebruary 2000 - March 2000, Link: OCED Tractor Test 1907 fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use12.9 l/hourReference
Drawbar performanceReference
Max pull3014 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
