Tractor · 1983Unverified

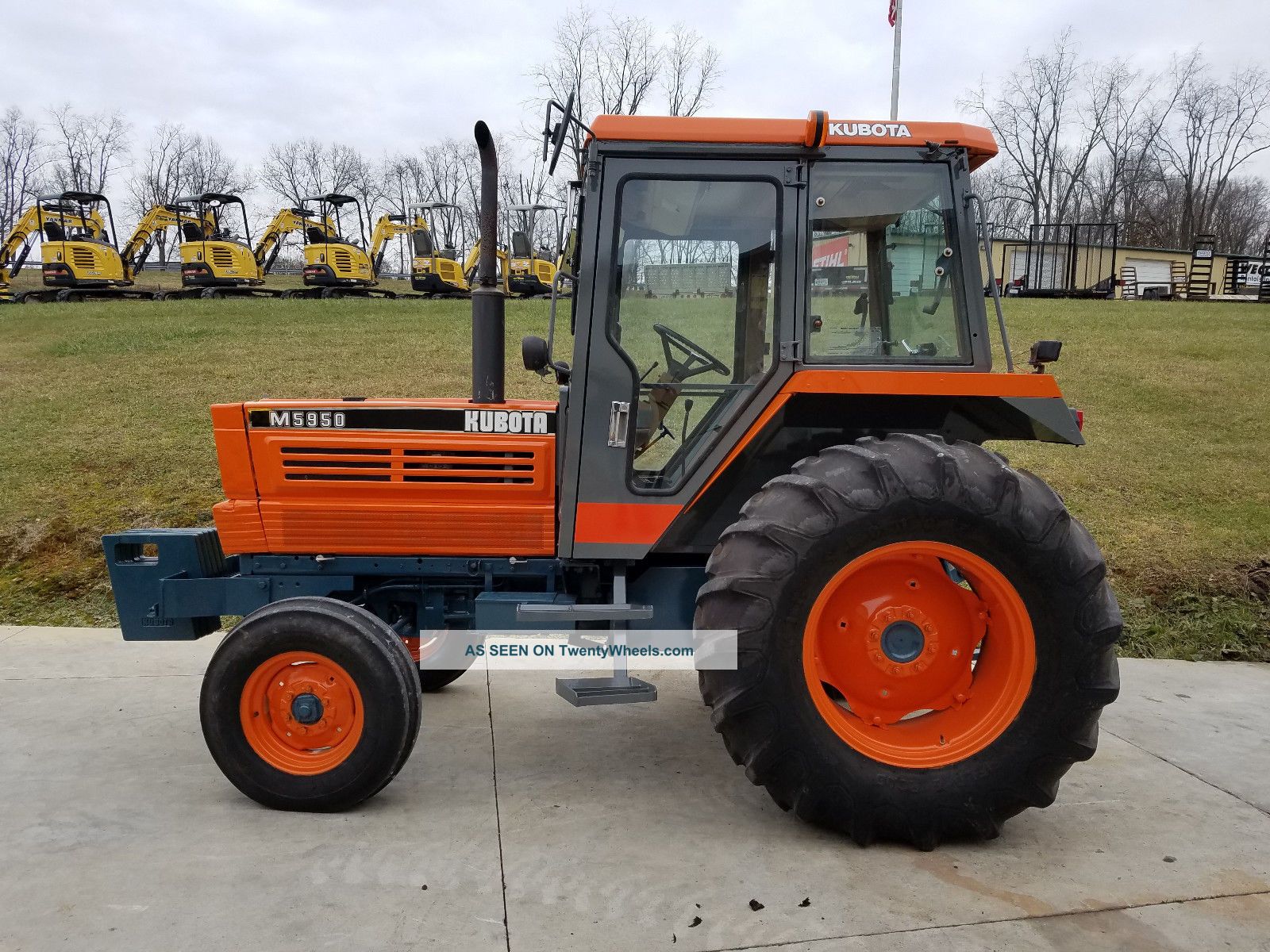

Kubota M5950
Kubota M5950 — M50 Series · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Max power
35.4 kW
Weight
4989 to 5673 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical wet disc brakesReference
Four-post ROPS. Cab optional with air-conditioning.Reference
Variants
M5950F2WDReference
M5950DT4WDReference
Engine
Kubota 3.2L 3-cyl dieselReference
Engine (net)45.5 kWReference
Drawbar (tested)35.4 kWReference
Kubota D3200-AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke109 x 115 mmReference
Power (net)45.5 kWReference
Air cleanerdry dual stageReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity9.8 LReference
Coolant capacity11.6 LReference
Power at rated engine speed43.3 kWReference
Max power35.4 kWReference
Transmission
12-speed synchronizedReference
TypesynchronizedReference
Gears12 forward and 4 reverseReference
Clutchdry dual 11.2-inch plateReference
Oil capacity48.1 LReference
Three gears (1-3) plus reverse in four ranges (A-D). Shifts between gears are synchronized.Reference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
PTO (tested)43.3 kWReference
Hydraulic system48.1 LReference
Typeopen centerReference
Capacity48.1 LReference
Pressure181.3 barReference
Valves1 or 2Reference
Total flow35.2 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1799 kgReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2016Reference
Power at rated PTO speed39.4 kWReference
Capacities
Fuel70.0 LReference
Dimensions
2WD Wheelbase210 cmReference
4WD Wheelbase211 cmReference
Weight4989 to 5673 poundsReference
Front tire6.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 16.9-28Reference
Length366 cmReference
Width185 cmReference
2WD Shipping weight2263 kgReference
4WD Shipping weight2573 kgReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)37 cmReference
2WD Front tread141 to 201 cmReference
4WD Front tread141 to 162 cmReference
Rear tread141 to 201 cmReference
2WD Steering wheel165 cmReference
4WD Steering wheel167 cmReference
Kubota M5950 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps65 (with cab)Reference
Battery volts12Reference
Battery AH300Reference
Kubota M5950 Height
2WD Exhaust228 cmReference
4WD Exhaust229 cmReference
Test results
Diesel 12-speed 4WDSeptember 26 - October 11, 1983Link: Nebraska Tractor Test 1497 fileReference
PTO performanceReference
Fuel use13.6 l/hourReference
Fuel use11.7 l/hourReference
Drawbar performanceReference
Fuel use13.2 l/hourReference
Max pull3787 kgReference
Speeds
With 16.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
