Tractor · 2018Unverified

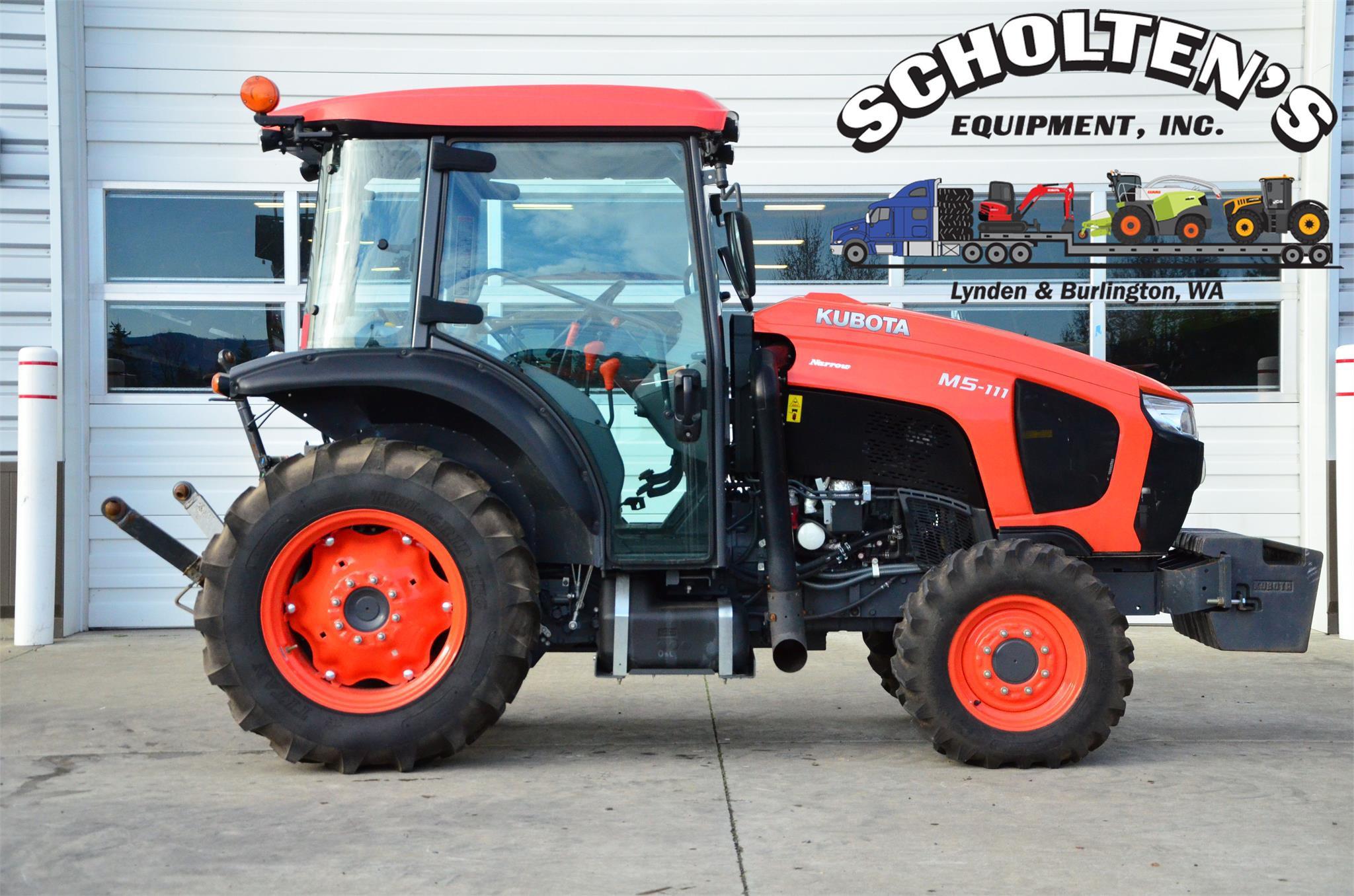

Kubota M5N-111

Kubota M5N-111 — Orchard/Vineyard tractor · 106 hp. Reference specifications; pending source verification.

The Kubota M5N-111 is a tractor with a rating of 106 horsepower, positioning it in the middle of its class for power output. Manufactured in 2018, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives through a four-wheel drive system with a powershift transmission. The tractor's listed weight ranges from 5357 to 5622 pounds. It is suitable for tasks covering approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
106 hp
Weight
5357 to 5622 pounds

Catalogue coverage

Variants represented
2
Richest spec table
63 rows
Recorded power
106 hp
Recorded weight
2429 kg
Transmissions
12-speed shuttle
Production years
2018-2018
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference
Orchard/Vineyard tractorReference
Original price$76,482 (2023 12-speed ROPS )Reference
Original price$89,878 (2023 24-speed Cab )Reference
Four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount folding ROPS. Cab available with air-conditioning.Reference

Engine

Kubota 3.8L 4-cyl dieselReference
Fuel tank76.1 LReference
Exhaust fluid (DEF)12.1 LReference
Engine (gross)78.8 kWReference
Kubota V3800-CRReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
EmissionsTier IVReference
Emission controlDPF, DOC and SCRReference
Rated Power (gross)78.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference

Transmission

12-speed shuttleReference
24-speed two-speed power shiftReference
TypeshuttleReference
Gears12 forward and reverseReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference

PTO & Hydraulics

PTO (claimed)67.9 kWReference
Typeopen centerReference
Valves2 to 5Reference
Pump flow63.2 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E (1.375)Reference
Engine RPM540@2385Reference
Engine RPM540E@1735Reference

Dimensions

Wheelbase213 cmReference
Weight5357 to 5622 poundsReference
Front tire8-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-24Reference
Length394 cmReference
Width135 cmReference
Height (hood)151 cmReference
Height (cab)229 cmReference
ROPS Weight2429 kgReference
Cab Weight2550 kgReference
Ground clearance28 cmReference
Clearance (front axle)31 cmReference
Front tread109 cmReference
Rear tread94 to 138 cmReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Charging amps130Reference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
