Tractor · 2015Unverified

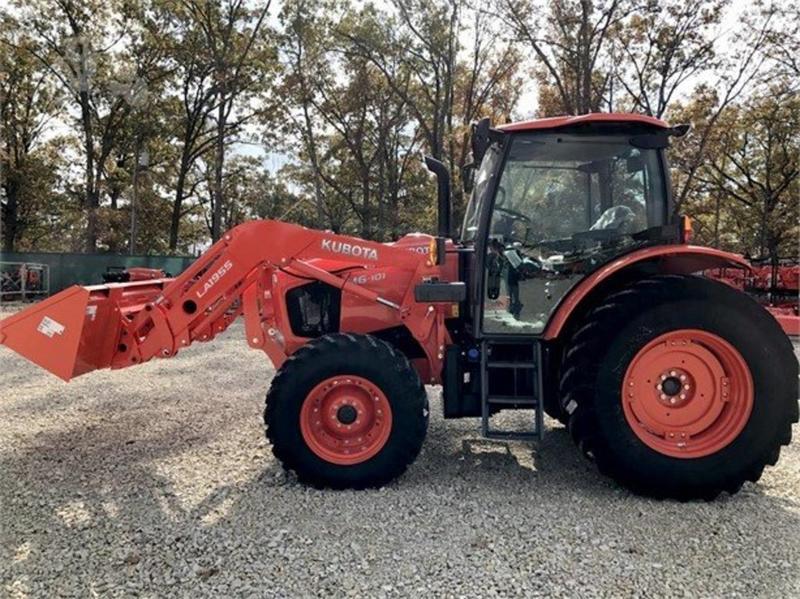

Kubota M6-101
Kubota M6-101 — M6 Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4355 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Grand X Cab standard with air-condiitoning.Reference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank190.0 LReference
Exhaust fluid (DEF)20.1 LReference
Engine (gross)77.9 kWReference
Engine (net)72.4 kWReference
Kubota V3800-TI-CRSReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
EmissionsTier IVReference
Rated Power (net)72.4 kWReference
Rated Power (gross)77.9 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed partial power shiftReference
32-speed partial power shiftReference
TransmissionIntelli-ShiftReference
Typepartial power shiftReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Eight power shift gears in three ranges, with electro-hydraulic shuttle.Reference
TransmissionIntelli-Shift CreeperReference
Gears32 forward and reverseReference
PTO & Hydraulics
PTO (claimed)61.1 kWReference
Valves2 to 4Reference
Pump flow70.8 lpmReference
Steering flow60.6 lpmReference
Rear TypeIIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)3099 kgReference
Rear lift (at 24"/610mm)4285 kgReference
Rear Armstelescopic lower link ends and stabilizersReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase243 cmReference
Weight4355 kgReference
Front tire12.4R24Reference
Rear tire18.4R30Reference
Standard tires (ag)Front: 12.4R24. Rear: 18.4R30Reference
Length420 cmReference
Width210 cmReference
Height (cab)278 cmReference
Ground clearance44 cmReference
Front tread157 to 167 cmReference
Rear tread151 to 205 cmReference
Kubota M6-101 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
