Tractor · 1986Unverified

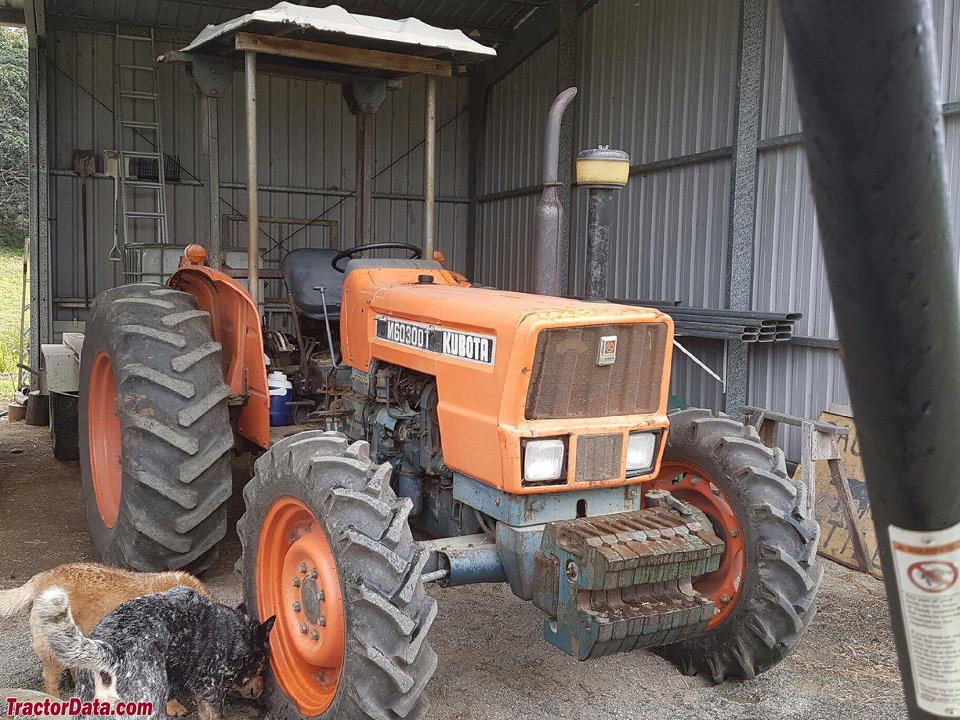

Kubota M6030
Kubota M6030 — M30 Series · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Max power
36.0 kW
Weight
4409 to 5269 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockstandardReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post ROPS.Reference
Variants
M6030DT4WDReference
Engine
Kubota 3.2L 3-cyl dieselReference
Engine45.5 kWReference
Drawbar (claimed)35.9 kWReference
Drawbar (tested)36.0 kWReference
Kubota D3200Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke109 x 115 mmReference
Power45.5 kWReference
Air cleanerdual dry elementReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
2WD Oil capacity9.8 LReference
4WD Oil capacity11.5 LReference
Coolant capacity11.6 LReference
Power at rated engine speed43.1 kWReference
Max power36.0 kWReference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
2WD Oil capacity48.0 LReference
4WD Oil capacity56.5 LReference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
PTO (tested)43.1 kWReference
2WD Hydraulic system48.1 LReference
4WD Hydraulic system56.4 LReference
Typeopen centerReference
2WD Capacity48.1 LReference
4WD Capacity56.4 LReference
Pressure181.3 barReference
Valves1Reference
Total flow41.6 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1799 kgReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed39.9 kWReference
Capacities
Fuel64.0 LReference
Dimensions
Wheelbase201 cmReference
Weight4409 to 5269 poundsReference
Front tire6.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 9.5-22. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 6.50-16. Rear: 14.9-24 (2WD Low Profile)Reference
4WD Standard tires (ag)Front: 9.5-16. Rear: 13.6-24 (4WD Low Profile)Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 9.5-24. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 8.00-16. Rear: 18.4-16 (2WD Low Profile)Reference
Ag front6.50-16Reference
Ag rear16.9-28Reference
2WD Length342 cmReference
4WD Length350 cmReference
Width200 cmReference
Width190 cmReference
2WD Weight1999 kgReference
4WD Weight2390 kgReference
2WD Ground clearance49 cmReference
4WD Ground clearance43 cmReference
4WD Ground clearance40 cmReference
4WD Ground clearance36 cmReference
2WD Front tread139 to 199 cmReference
4WD Front tread133 to 151 cmReference
Rear tread159 to 192 cmReference
Kubota M6030 attachments
front-end loaderReference
Attachment overview
Kubota M1000 loaderReference
Kubota M1870A loaderReference
Kubota M6030 Height
Hood142 cmReference
Hood135 cmReference
Exhaust224 cmReference
Test results
Diesel 16-speed 4WDMay 14 - 28, 1986Link: Nebraska Tractor Test 1596 fileReference
PTO performanceReference
Fuel use13.6 l/hourReference
Fuel use12.1 l/hourReference
Drawbar performanceReference
Max pull3198 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
