Tractor · 2007Unverified

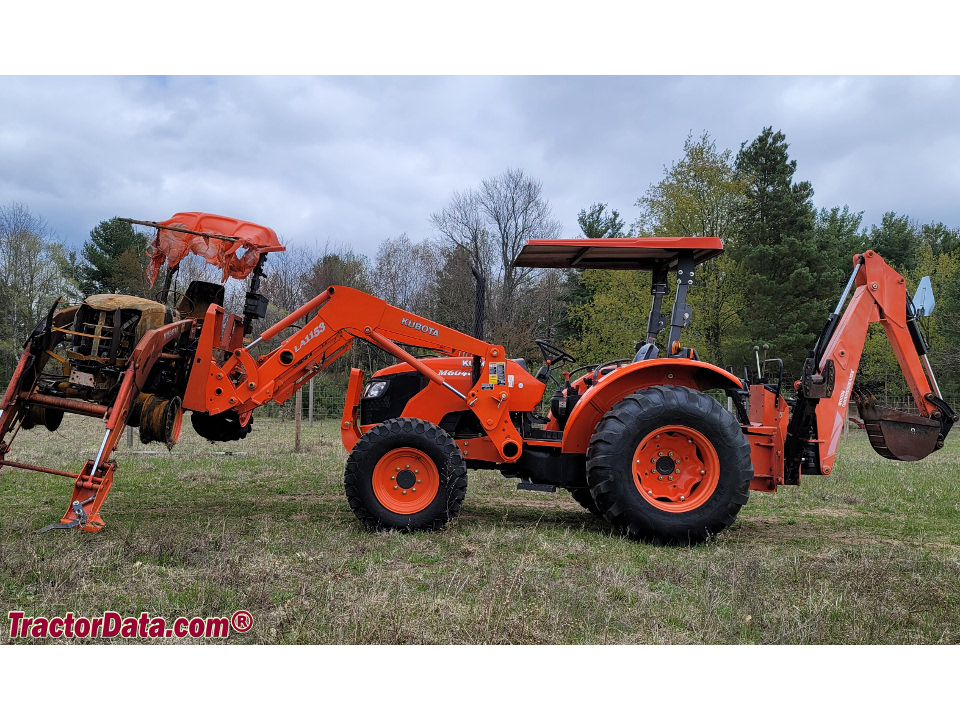

Kubota M6040
Kubota M6040 — M40 Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
4650 to 5445 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Original price was $23,623 in 2011Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post foldable ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioningReference
Variants
M6040HDNnarrow chassisReference
M6040F2WD ROPS sync-shuttleReference
M6040FC2WD cab sync-shuttleReference
M6040DT4WD ROPS sync-shuttleReference
M6040HD4WD ROPS hyd-shuttleReference
M6040DTC4WD cab sync-shuttleReference
M6040HDC4WD cab hyd-shuttleReference
Engine
Kubota 3.3L 4-cyl dieselReference
Engine (net)47.4 kWReference
Kubota V3307-DIReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke94 x 119 mmReference
EmissionsTier IIReference
Power (net)46.2 kWReference
Air cleanerdual element dryReference
Rated RPM2600Reference
Starter volts12Reference
Kubota V3307-DI-TReference
turbocharged dieselReference
liquid-cooledReference
EmissionsTier IIIReference
Emission controlEGRReference
Power (net)47.4 kWReference
Oil capacity11.4 LReference
Coolant capacity6.2 LReference
Transmission
8-speed partially synchronizedReference
8-speed power shuttleReference
TransmissionSynchro-ShuttleReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
Clutchdry plateReference
Oil capacity40.1 LReference
Four gears with high and low ranges. Gears and forward-reverse shuttle shifting are synchronized.Reference
TransmissionHydraulic-ShuttleReference
Typepower shuttleReference
Clutchwet discsReference
Four gears with high and low ranges. Clutchless power shuttle shifting between forward and reverse. Gears (1-4) are synchronized.Reference
PTO & Hydraulics
PTO (claimed)41.8 kWReference
PTO (claimed)41.0 kWReference
Hydraulic system56.8 LReference
Typeopen centerReference
Capacity56.8 LReference
Pressure191.0 barReference
Valves1 to 3Reference
Pump flow41.6 lpmReference
Total flow64.3 lpmReference
Steering flow23.1 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1905 kgReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2295Reference
Capacities
ROPS Fuel70.0 LReference
Cab Fuel90.1 LReference
Front axle8.0 LReference
Dimensions
Wheelbase204 cmReference
Wheelbase208 cmReference
Wheelbase211 cmReference
Wheelbase214 cmReference
Weight4650 to 5445 poundsReference
Front tire7.50-16Reference
Rear tire16.9-28 (2WD)Reference
Weight895 kgReference
Standard tires (ag)Front: 7.50-16. Rear: 16.9-28 (2WD)Reference
Standard tires (ag)Front: 9.5-24. Rear: 16.9-28 (4WD)Reference
Optional tires (ag)Front: 6.50-16. Rear: 14.9-28 (2WD)Reference
Optional tires (ag)Front: 9.5L-15. Rear: 14.9-28 (2WD)Reference
Optional tires (ag)Front: 9.5L-15. Rear: 16.9-28 (2WD)Reference
Optional tires (ag)Front: 9.5-24. Rear: 14.9-28 (4WD)Reference
Lawn/turf front29x12.5-15 (2WD)Reference
Lawn/turf front27x9.5-15 (2WD)Reference
Lawn/turf front305R343Reference
Lawn/turf rear21.5L-16.1 (2WD)Reference
Lawn/turf rear16.9-24 (2WD)Reference
Lawn/turf rear570-648Reference
Industrial front12.5/80-18 (4WD)Reference
Industrial rear16.9-24 (4WD)Reference
Length362 cmReference
Length356 cmReference
Length352 cmReference
Length344 cmReference
Width185 cmReference
Height (ROPS)246 cmReference
Height (cab)255 cmReference
Ground clearance41 cmReference
2WD Front tread141 to 182 cmReference
4WD Front tread141 to 151 cmReference
Rear tread132 to 171 cmReference
2WD ROPS2109 kgReference
4WD ROPS2170 kgReference
2WD cab2410 kgReference
4WD cab2469 kgReference
Kubota M6040 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Battery CCA900Reference
Battery volts12Reference
Attachment overview
Kubota LA1153 Height Position loaderReference
Kubota LA1153 Power Position loaderReference
BackhoeReference
Kubota M4011 Backhoe
Backhoe typeKubota M4011 BackhoeReference
Transport height275 cmReference
Digging depth338 cmReference
Reach from pivot439 cmReference
Loading height248 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2797 kgReference
Dipperstick force1886 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
