Tractor · 2007Unverified

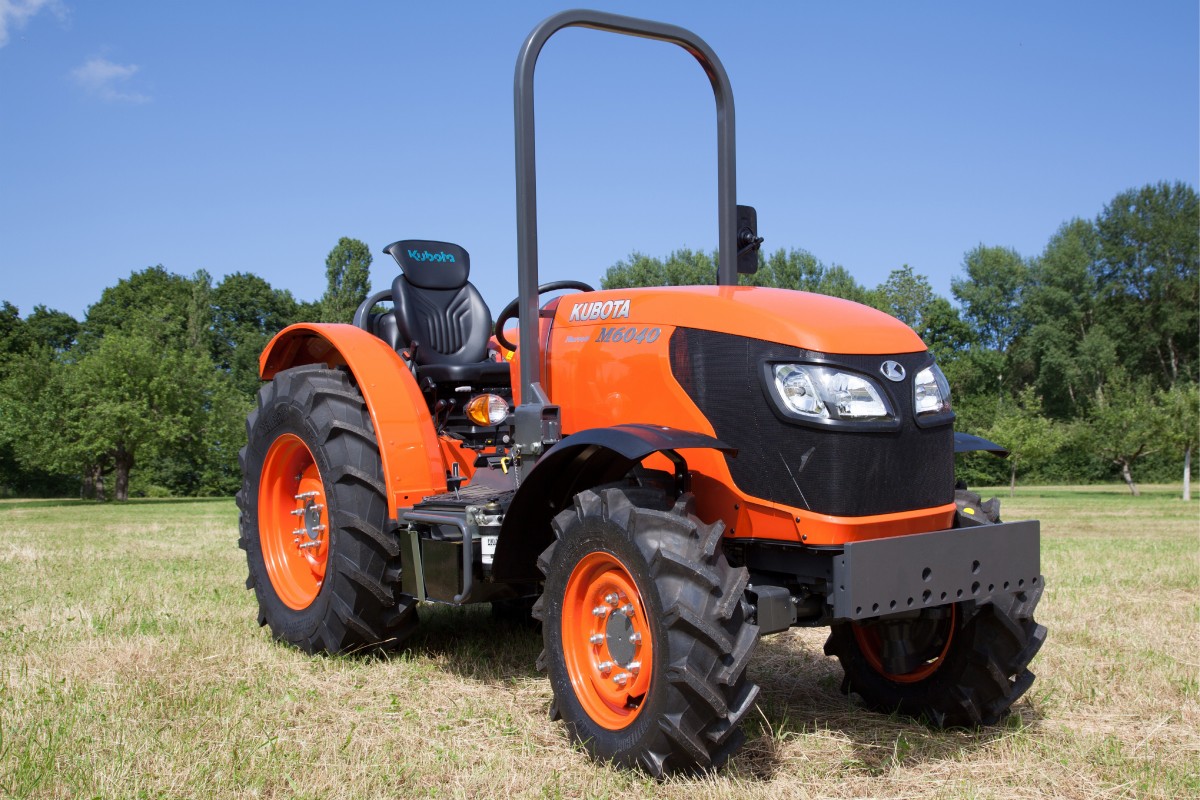

Kubota M6040HDN
Kubota M6040HDN — Orchard/Vineyard tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
1900 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Orchard/Vineyard tractorReference
Original price$32,606 (2011)Reference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post foldable center ROPS.Reference
Variants
M6040utility chassisReference
M6040HDNnarrow chassisReference
Engine
Kubota 3.3L 4-cyl dieselReference
Engine (net)46.2 kWReference
Kubota V3307-DIReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
EmissionsTier IIIReference
Power (net)46.2 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.0 LReference
Coolant capacity6.2 LReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
Clutchwet discReference
Oil capacity40.1 LReference
Four synchronized gears in two ranges.Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system40.1 LReference
Typeopen centerReference
Capacity40.1 LReference
Pressure191.0 barReference
Valves1 to 3Reference
Pump flow41.6 lpmReference
Total flow64.7 lpmReference
Steering flow23.1 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1905 kgReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Capacities
Fuel60.2 LReference
Front axle8.0 LReference
Dimensions
Wheelbase204 cmReference
Weight1900 kgReference
Front tire8.00-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 8.00-16. Rear: 12.4-24Reference
Optional tires (ag)Front: 8.00-16. Rear: 12.4R24Reference
Optional tires (ag)Front: 8.00-16. Rear: 18.4-16.1Reference
Optional tires (ag)Front: 27x8.50-15. Rear: 320/85R20Reference
Optional tires (ag)Front: 9.5-16. Rear: 380/85R24Reference
Length346 cmReference
Width121 cmReference
Height (hood)116 cmReference
Clearance (front axle)37 cmReference
Front tread103 cmReference
Rear tread89 to 138 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA700Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
