Tractor · 2013Unverified

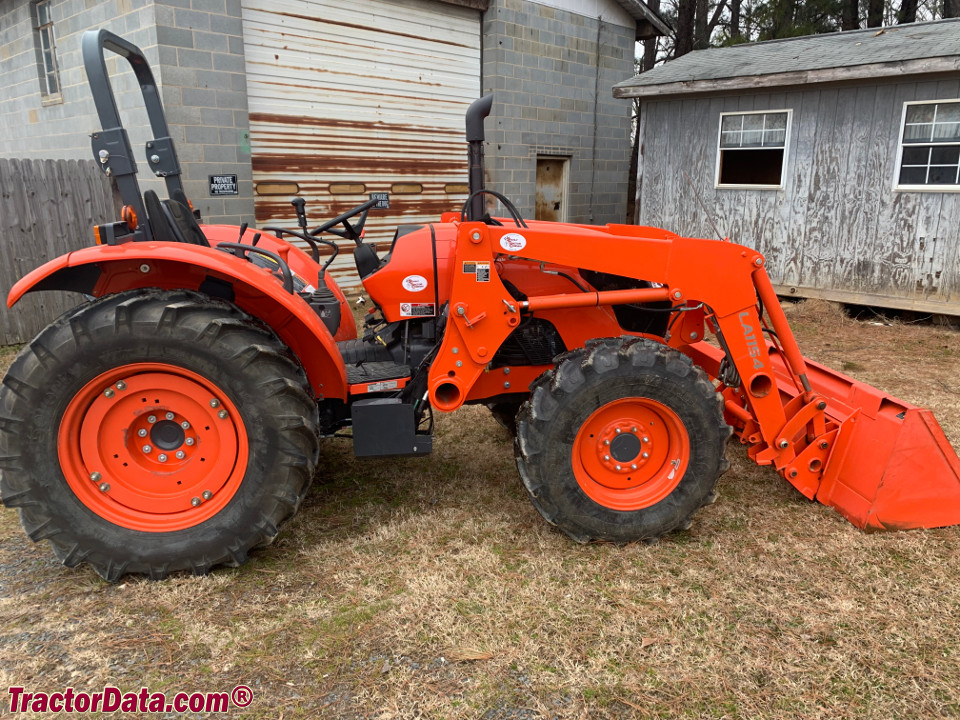

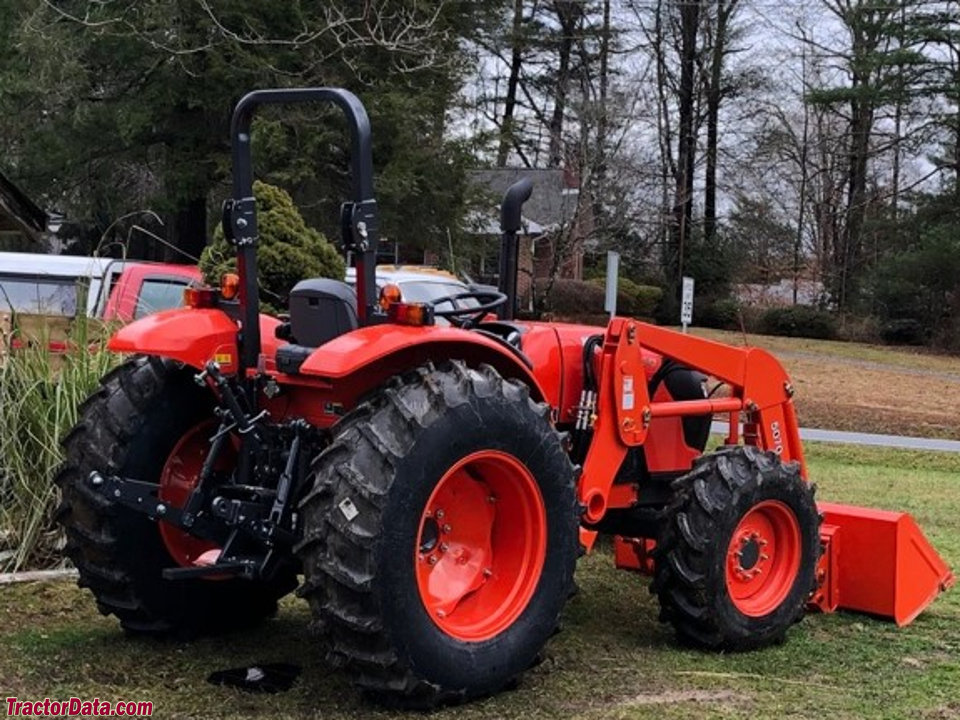

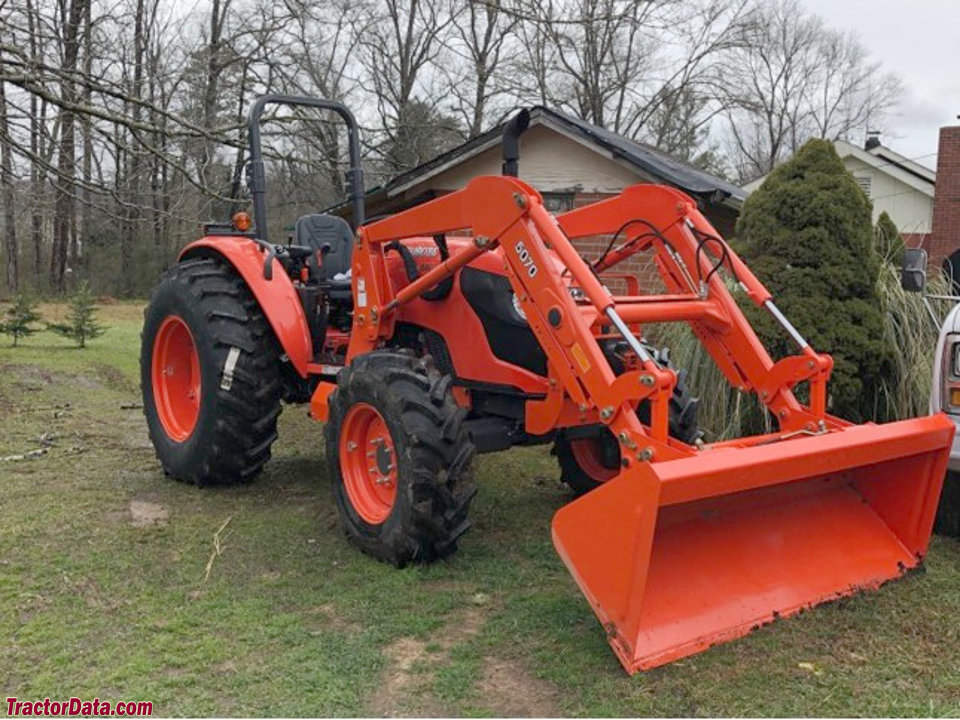

Kubota M6060

Name: Kubota M6060
Brand: Kubota

Kubota M6060 — M60 Series · 64 hp. Reference specifications; pending source verification.

The Kubota M6060 is a tractor with a rated power output of 64 hp, positioning it at the lower end of its class. It was manufactured in 2013. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. It has an operating weight of 5005 to 5358 pounds and is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

64 hp

Max power

66.4 hp

Weight

5005 to 5358 pounds

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

64 hp

Transmissions

8-speed power shuttle

Production years

2013-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS. Optional Ultra Grand Cab with air-conditioning. Optional air-ride seat and AM/FM/CD/MP3 sound system.Reference

Variants

M6060HF2WD ROPSReference

M6060HFC2WD CabReference

M6060HD4WD ROPSReference

M6060HDC4WD CabReference

Engine

Kubota 3.3L 4-cyl dieselReference

ROPS Fuel tank70.0 LReference

Cab Fuel tank90.1 LReference

Engine (net)47.4 kWReference

Kubota V3307-CF-TE4Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement3.3 LReference

Bore/Stroke94 x 119 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation (EGR)Reference

Power (net)47.4 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,400 rpmReference

AspirationturbochargedReference

Transmission

8-speed power shuttleReference

Typepower shuttleReference

Gears8 forward and reverseReference

Clutchwet discReference

Four synchronized gears (1-4) in two ranges (low/high).Reference

Transmission TypePower ShuttleReference

forward and reverse optionsF8 x R8Reference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)41.8 kWReference

Valves1 to 3Reference

Pump flow41.6 lpmReference

Rear TypeII/IReference

Controlposition control and top-link draft sensingReference

Rear lift (at 24"/610mm)1500 kgReference

Rear Armstelescopic lower link endsReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375Reference

Rear PTO Type540/540E (1.375)Reference

Dimensions

2WD Wheelbase214 cmReference

4WD Wheelbase211 cmReference

Weight5005 to 5358 poundsReference

Front tire7.5-16Reference

Rear tire16.9-28 (2WD)Reference

Standard tires (ag)Front: 7.5-16. Rear: 16.9-28 (2WD)Reference

Standard tires (ag)Front: 9.5-24. Rear: 16.9-28 (4WD)Reference

2WD Length362 cmReference

4WD Length350 cmReference

Width185 cmReference

Height (ROPS)246 cmReference

Height (cab)255 cmReference

Clearance (front axle)45 cmReference

Flange rear axleReference

Front tread141 to 182 cmReference

Front tread141/151 cmReference

Rear tread141 to 171 cmReference

2270 kgReference

2370 kgReference

2430 kgReference

Kubota M6060 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps60Reference

Optional Charging amps100Reference

Battery volts12Reference

Alternator size100 ampReference

Attachment overview

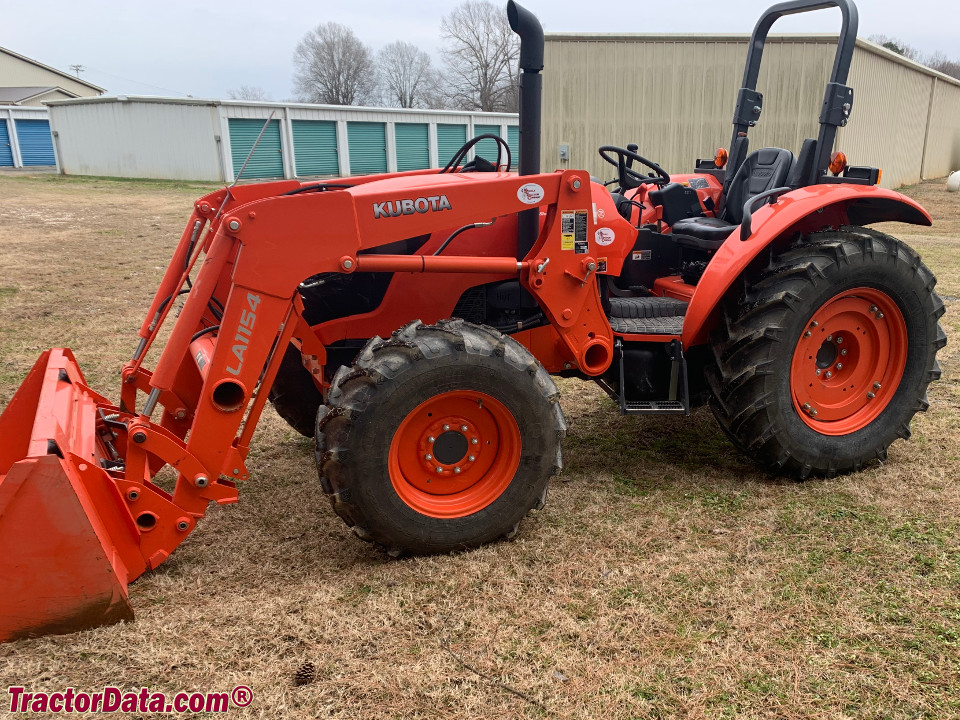

Kubota LA1154 loaderReference

Speeds

With 16.9-30 rear tires.Reference

General

Make & ModelKUBOTAReference

SCV controlJoystickReference

Capacities

Capacity203 cu. inReference

Fuel tank90.5 LReference

Power

Max Power66.4 hpReference

PTO

PTO Power56 hpReference

Rear PTO RPM540 rpmReference

Hydraulics

Pump Rated Output (total)41.6 l/minReference

Remote Valves4Reference

Rear Hitch category (SAE designation)Category I/IIReference

Rear Hitch Sensing TypeTelescopic lower link ends, Telescopic StabilizersReference

Dimensions & weight

Wheelbase214.4 cmReference

Height Over Cab256.5 cmReference

Height Over ROPS246.9 cmReference

Overall Height255.5 cmReference

Overall Length350.5 cmReference

Overall Width185.4 cmReference

Front axle clearance46 cmReference

Turning radius30 cmReference

Overall weight2,430.3 kgReference

Operator station

Cab AvailabilityOptionalReference

Seat SuspensionAvailableReference

Steering & brakes

Steering typeHydrostatic power steeringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
