Tractor · 2020Unverified

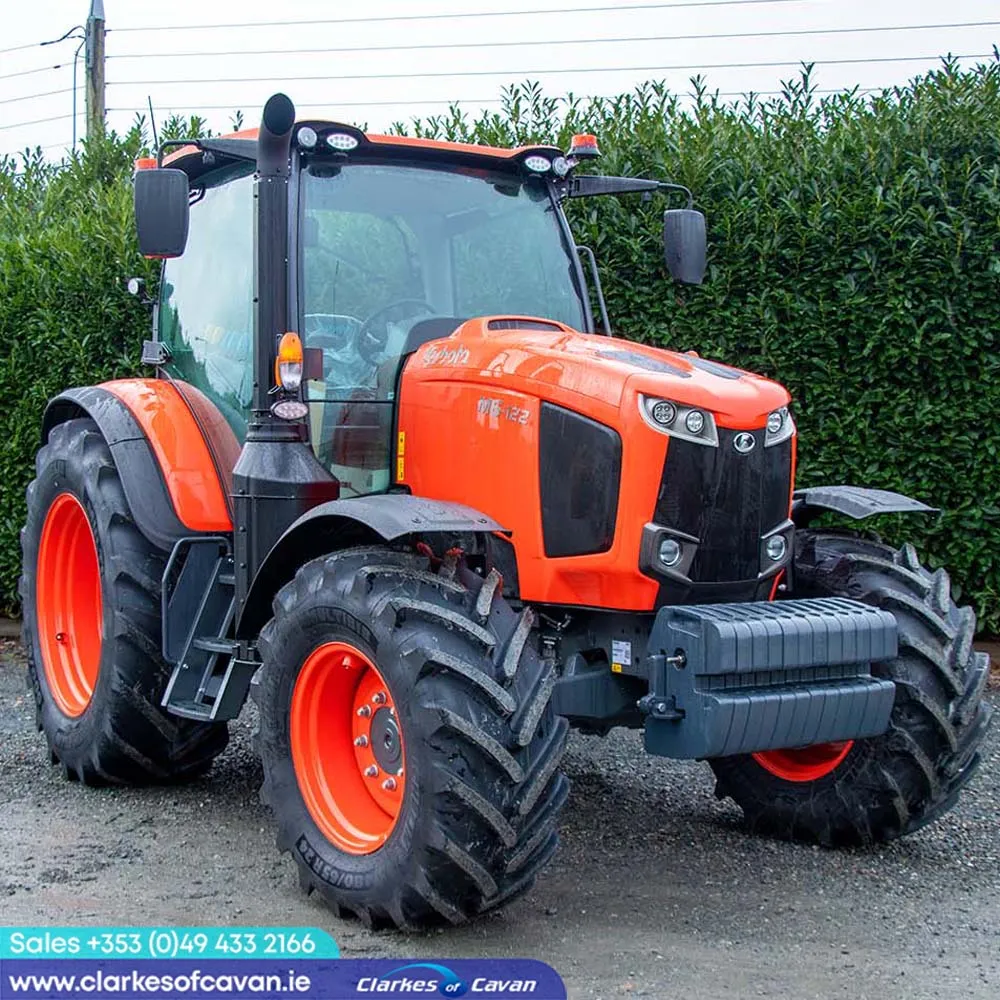

Kubota M6122

Name: Kubota M6122
Brand: Kubota

Kubota M6122 — M6002 Series · 122 hp. Reference specifications; pending source verification.

The Kubota M6122 is a tractor model with a rated power of 122 hp, placing it at the higher end of its class. It was manufactured in 2020. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. It has an operating weight of 6000 kg, making it suitable for operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

122 hp

Weight

6000 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

122 hp

Recorded weight

6000 kg

Transmissions

24-speed eight-speed power shift

Production years

2020-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Cab standard with air-conditioning.Reference

Engine

Kubota 6.1L 4-cyl dieselReference

Fuel tank230.1 LReference

Exhaust fluid (DEF)20.1 LReference

Engine (gross)91.0 kWReference

Engine (max)105.1 kWReference

Kubota V6108Reference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke118 x 140 mmReference

Rated Power (gross)91.0 kWReference

Maximum Power (gross)105.1 kWReference

Rated RPM1900Reference

Torque549.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed eight-speed power shiftReference

32-speed creeperReference

Typeeight-speed power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight power shift gears in three ranges with power shuttle.Reference

TypecreeperReference

Gears32 forward and reverseReference

PTO & Hydraulics

Typeclosed-center load-sensingReference

Valves3 or 4Reference

Pump flow115.1 lpmReference

Rear TypeIIIReference

Controllower-link draft sensingReference

Rear lift6999 kgReference

Front lift2318 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000/1000EReference

Front PTO Type1000Reference

Dimensions

Wheelbase268 cmReference

Weight6000 kgReference

Front tire420/70R24Reference

Rear tire520/70R38Reference

Standard tires (ag)Front: 420/70R24. Rear: 520/70R38Reference

Length462 cmReference

Width211 cmReference

Height (cab)289 cmReference

Shipping weight6000 kgReference

Ground clearance57 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Battery CCA1000Reference

Battery volts12Reference

Battery AH170Reference

Speeds

H8 is an overdrive gear, maximum speed at 1640 RPM.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
