Tractor · 1997Unverified

Kubota M6800

Name: Kubota M6800
Brand: Kubota

Kubota M6800 — M Series · 62 hp. Reference specifications; pending source verification.

The Kubota M6800 is a tractor with a rated power of 62 hp, categorising it at the lighter end of its class. Manufactured from 1997 to 2005, it features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and an 8-speed gearbox. The tractor has an operating weight of 5055 to 5712 pounds and is suitable for operations of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

62 hp

Max power

47.2 kW

Weight

5055 to 5712 pounds

Catalogue coverage

Variants represented

Richest spec table

107 rows

Recorded power

62 hp

Transmissions

8-speed synchronized shuttle

Production years

1997-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Built in JapanReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Variants

M6800F2WDReference

M6800DT4WDReference

Engine

Kubota 3.3L 4-cyl dieselReference

ROPS Fuel tank65.1 LReference

Cab Fuel tank95.0 LReference

Engine52.9 kWReference

Drawbar (tested)42.5 kWReference

Kubota V3300Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

Power52.9 kWReference

Air cleanerdual dry elementReference

Compression22.6:1Reference

Rated RPM2600Reference

Starter volts12Reference

Coolant capacity8.5 LReference

Max power47.2 kWReference

Power at rated engine speed46.3 kWReference

Max power42.5 kWReference

Fuel TypeDieselReference

No of Cylinders4-cylinderReference

Rated engine speed2,600Reference

Bore and stroke3.86x4.33 inchesReference

Compression ratio22.6:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speed synchronized shuttleReference

8-speed power shuttleReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutch274.3mm cerametallic dry discReference

Four synchronized gears in two range with synchronized shuttle.Reference

Typepower shuttleReference

Clutchhydraulic wet discReference

Four synchronized gears in two range with hydraulic shuttle.Reference

Transmission TypePower ShuttleReference

forward and reverse options8 forward and reverseReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

PTO (tested)47.2 kWReference

Typeopen centerReference

Valves1Reference

Pump flow41.6 lpmReference

Rear TypeII/IReference

Controlposition control and top-link draft sensingReference

Rear lift (at 24"/610mm)1501 kgReference

Rear Armstelescopic stabilizers and link endsReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540Reference

Engine RPM540@2300Reference

Power at rated PTO speed46.9 kWReference

Dimensions

ROPS Wheelbase204 cmReference

Cab Wheelbase212 cmReference

Weight5055 to 5712 poundsReference

Rear tire7.50-16Reference

Ag rear7.50-16Reference

Ag rear9.5-24 (4WD)Reference

2WD Length353 cmReference

4WD Length341 cmReference

Width185 cmReference

Height (ROPS)245 cmReference

Height (cab)249 cmReference

2WD Front tread141 to 182 cmReference

4WD Front tread141 to 151 cmReference

Rear tread141 to 171 cmReference

2WD ROPS Shipping2292 kgReference

4WD ROPS Shipping2351 kgReference

2WD Cab Shipping2530 kgReference

4WD Cab Shipping2590 kgReference

4WD ROPS Operating2438 kgReference

Ballasted3891 kgReference

Kubota M6800 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps60Reference

Battery volts12Reference

Attachment overview

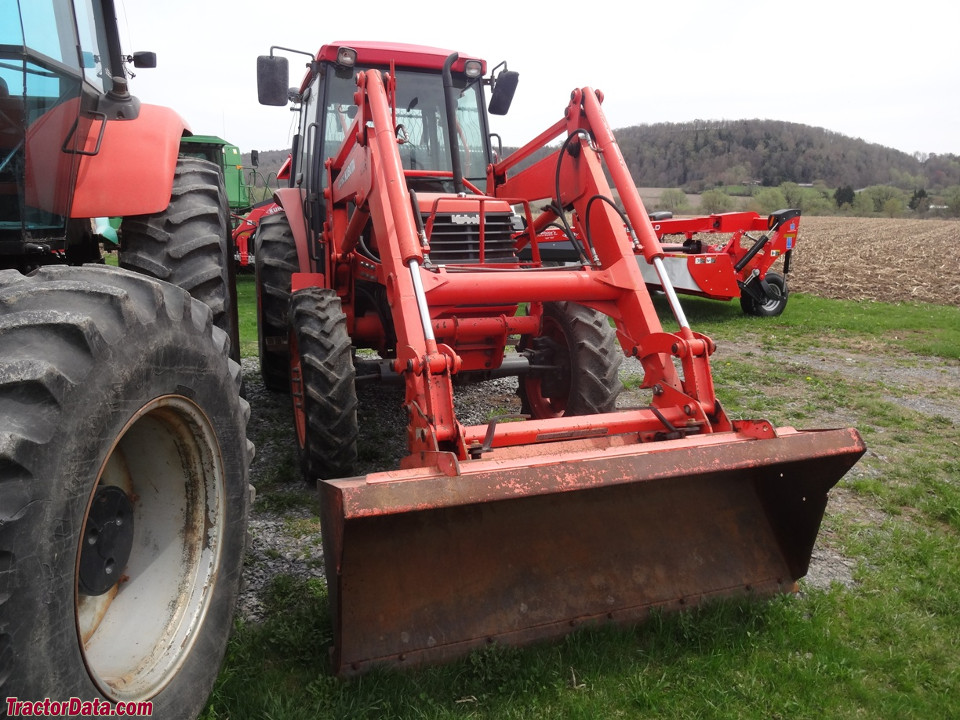

Kubota LA1002 loaderReference

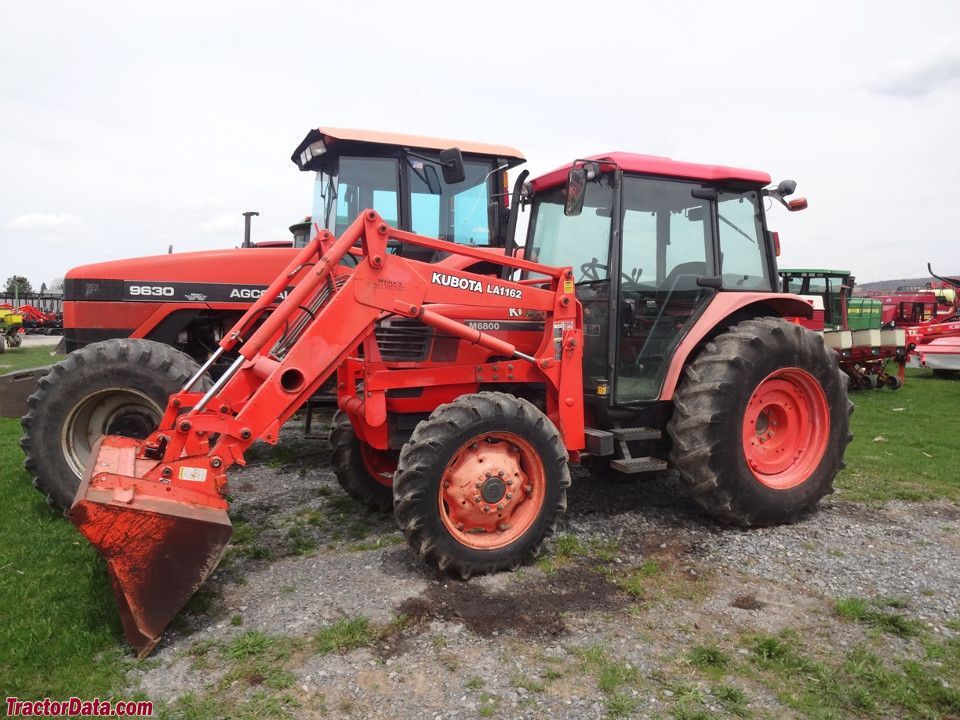

Kubota LA1162 loaderReference

Test results

Diesel 8-speed 4WDLink: OCED Tractor Test 1803 fileReference

PTO performanceReference

Fuel use15.5 l/hourReference

Fuel use15.9 l/hourReference

Fuel use15.1 l/hourReference

Drawbar performanceReference

Fuel use16.3 l/hourReference

Max pull3281 kgReference

General

Make & ModelKubotaReference

Capacities

Capacity202 ciReference

Power

Rated Power70.9 hpReference

PTO

Rear PTO PowerAvailableReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1Reference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch Sensing Typeposition control and top-link draft sensingReference

Dimensions & weight

Overall Height245.1 cmReference

Overall Width185.9 cmReference

Wheels & tyres

Rear wheel tread range7.50-16, 9.5-24 (4WD) inchReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
