Tractor · 2015Unverified

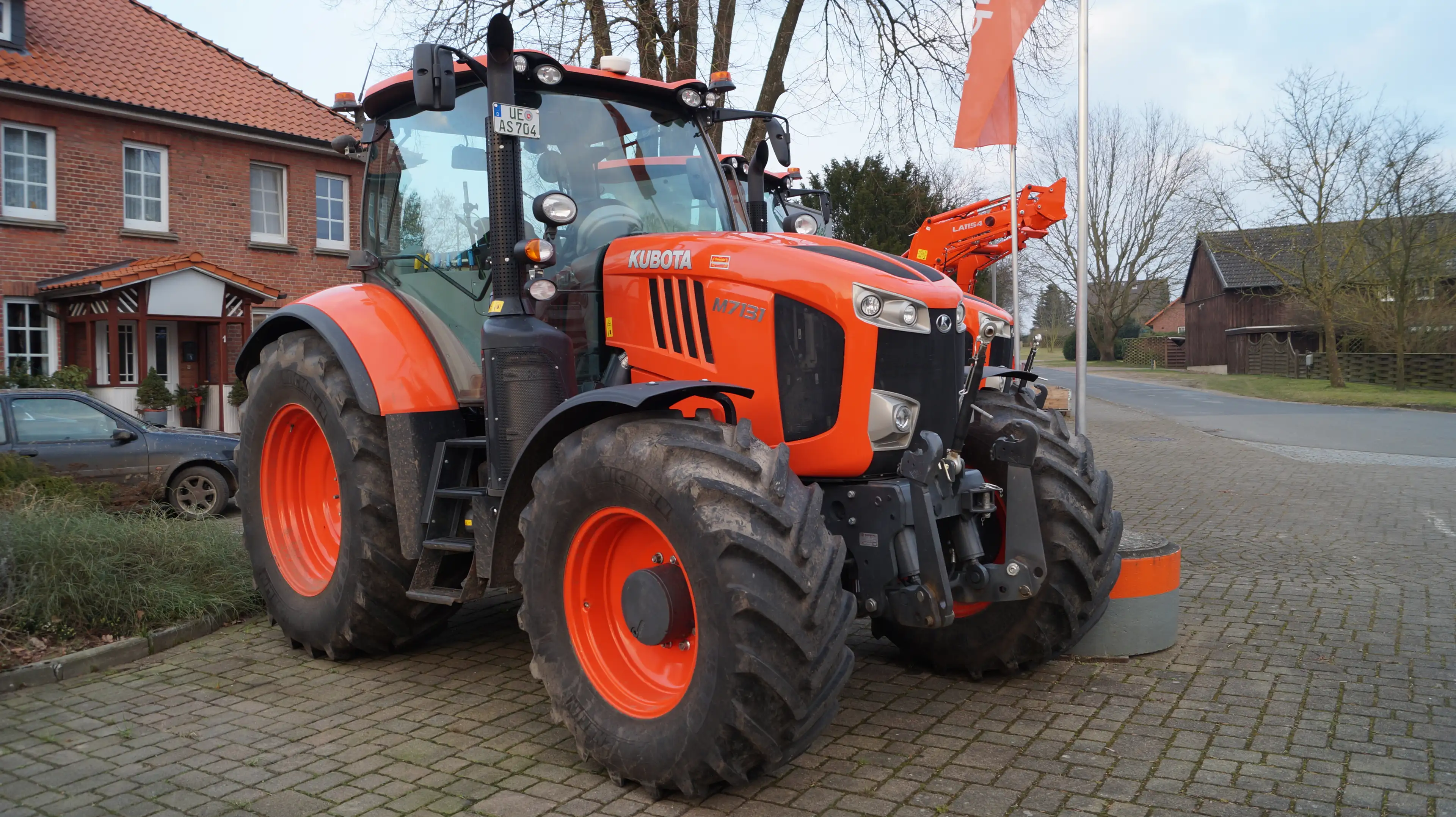

Kubota M7-131
Kubota M7-131 — M7-1 Series · 128 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
128 hp
Max power
76.7 kW
Weight
6847 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Row-Crop tractorReference
Built in Bierne, FranceReference
Four-wheel driveReference
Power steeringReference
Cab standard.Reference
Engine
Kubota 6.1L 4-cyl dieselReference
Fuel tank329.3 LReference
Exhaust fluid (DEF)37.9 LReference
Engine (gross)95.4 kWReference
Engine (max)110.4 kWReference
Drawbar (tested)76.7 kWReference
Kubota V6108Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke118 x 140 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Rated Power (gross)95.4 kWReference
Maximum Power (gross)110.4 kWReference
Fuel systemdirect injectionReference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed94.1 kWReference
Max power76.7 kWReference
Transmission
24-speed partial power shiftReference
continuously variable transmissionReference
TransmissionZFReference
Typepartial power shiftReference
Gears24 forward and reverseReference
Clutchhydraulic wet discReference
ManufacturerZFReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
PTO (tested)94.1 kWReference
Typeopen centerReference
Typeclosed center load sensingReference
Pump flow79.5 lpmReference
Pump flow109.8 lpmReference
Rear TypeIIIReference
Controllower-link electronic draft sensingReference
Rear lift (at ends)6699 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed92.7 kWReference
Dimensions
Wheelbase271 cmReference
Weight6847 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Length477 cmReference
Width249 cmReference
Width279 cmReference
Height302 cmReference
Shipping weight6847 kgReference
Flange rear axleReference
Bar rear axle2794 mmReference
Kubota M7-131 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200Reference
Battery volts12Reference
Test results
Diesel 24-speed 4WDMay 11 - 19, 2017Link: OCED Tractor Test 2176 fileReference
PTO performanceReference
Fuel use31.4 l/hourReference
Fuel use29.1 l/hourReference
Drawbar performanceReference
Fuel use28.4 l/hourReference
Max pull7075 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
