Tractor · 2018Unverified

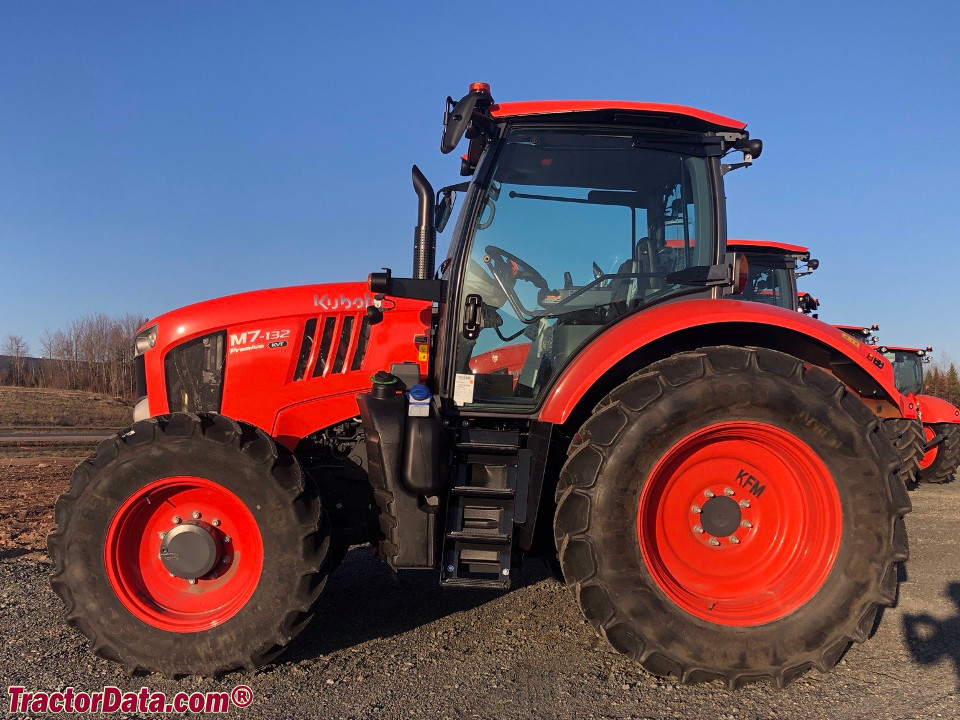

Kubota M7-132
Kubota M7-132 — M7-2 Series · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Max power
91.3 kW
Weight
6300 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Row-Crop tractorReference
Built in Bierne, FranceReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 6.1L 4-cyl dieselReference
Fuel tank330.1 LReference
Exhaust fluid (DEF)37.9 LReference
Engine (gross)96.9 kWReference
Engine (max)111.9 kWReference
Drawbar (tested)63.0 kWReference
Kubota V6108-CRReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke118 x 140 mmReference
EmissionsStage IVReference
Rated Power (gross)96.9 kWReference
Maximum Power (gross)111.9 kWReference
Rated RPM1900Reference
Torque600.7 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Max power91.3 kWReference
Power at rated engine speed78.1 kWReference
Max power63.0 kWReference
Transmission
30-speed 6-speed power shiftReference
infinitely variable transmissionReference
54-speed creeperReference
Type6-speed power shiftReference
Gears30 forward and 15 reverseReference
Clutchelectro-hydraulic wet discReference
Six power shift gears in five synchronized ranges with shuttle.Reference
TransmissionKVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
TypecreeperReference
Gears54 forward and 27 reverseReference
PTO & Hydraulics
PTO (tested)91.3 kWReference
Typeopen centerReference
Typeclosed centerReference
Pump flow79.9 lpmReference
Pump flow109.8 lpmReference
Rear TypeIIIReference
Controllower-link draft sensingReference
Rear lift (at ends)9399 kgReference
Front lift3900 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540E@1608Reference
Engine RPM540@2005Reference
Engine RPM1000E@1600Reference
Engine RPM1000@1995Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed88.9 kWReference
Dimensions
Wheelbase272 cmReference
Weight6300 kgReference
Front tire540/65R28Reference
Rear tire650/65R38Reference
Standard tires (ag)Front: 540/65R28. Rear: 650/65R38Reference
Length477 cmReference
Width249 cmReference
Height303 cmReference
Shipping weight6300 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel Power shift 4WDOctober 29 - November 7, 2019Link: OCED Tractor Test 2214 fileReference
PTO performanceReference
Fuel use28.0 l/hourReference
Fuel use26.5 l/hourReference
Fuel use28.4 l/hourReference
Drawbar performanceReference
Fuel use23.1 l/hourReference
Max pull6630 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
