Tractor · 2023Unverified
Kubota M7-134
Kubota M7-134 — M7-4 Series · 128 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
128 hp
Weight
6598 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Available mechanical or pneumatic cab suspension.Reference
Engine
Kubota 6.1L 4-cyl dieselReference
Fuel tank329.3 LReference
Exhaust fluid (DEF)37.9 LReference
Engine (max)95.4 kWReference
Kubota V6108Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement6.1 LReference
Bore/Stroke118 x 140 mmReference
EmissionsTier IVReference
Maximum Power (gross)95.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed six-speed power shiftReference
continuously-variable transmissionReference
54-speed creeperReference
Typesix-speed power shiftReference
Gears30 forward and 15 reverseReference
Clutchhydraulic wet discReference
Six power shift gears in five synchronized ranges with power shuttle.Reference
TransmissionKVTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
TypecreeperReference
Gears54 forward and 27 reverseReference
Optional additional creeper range transmission for the power shift.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Typeclosed center load-sensingReference
Rear valves4 or 5Reference
Pump flow109.8 lpmReference
Rear TypeIII/IIINReference
Controlelectronic lower-link draft sensingReference
Rear lift (at ends)9399 kgReference
Rear lift (at 24"/610mm)5351 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase271 cmReference
Weight6598 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Length299 cmReference
Width279 cmReference
Height309 cmReference
Shipping weight6598 kgReference
Front axle0 mmReference
Front axle2794 mmReference

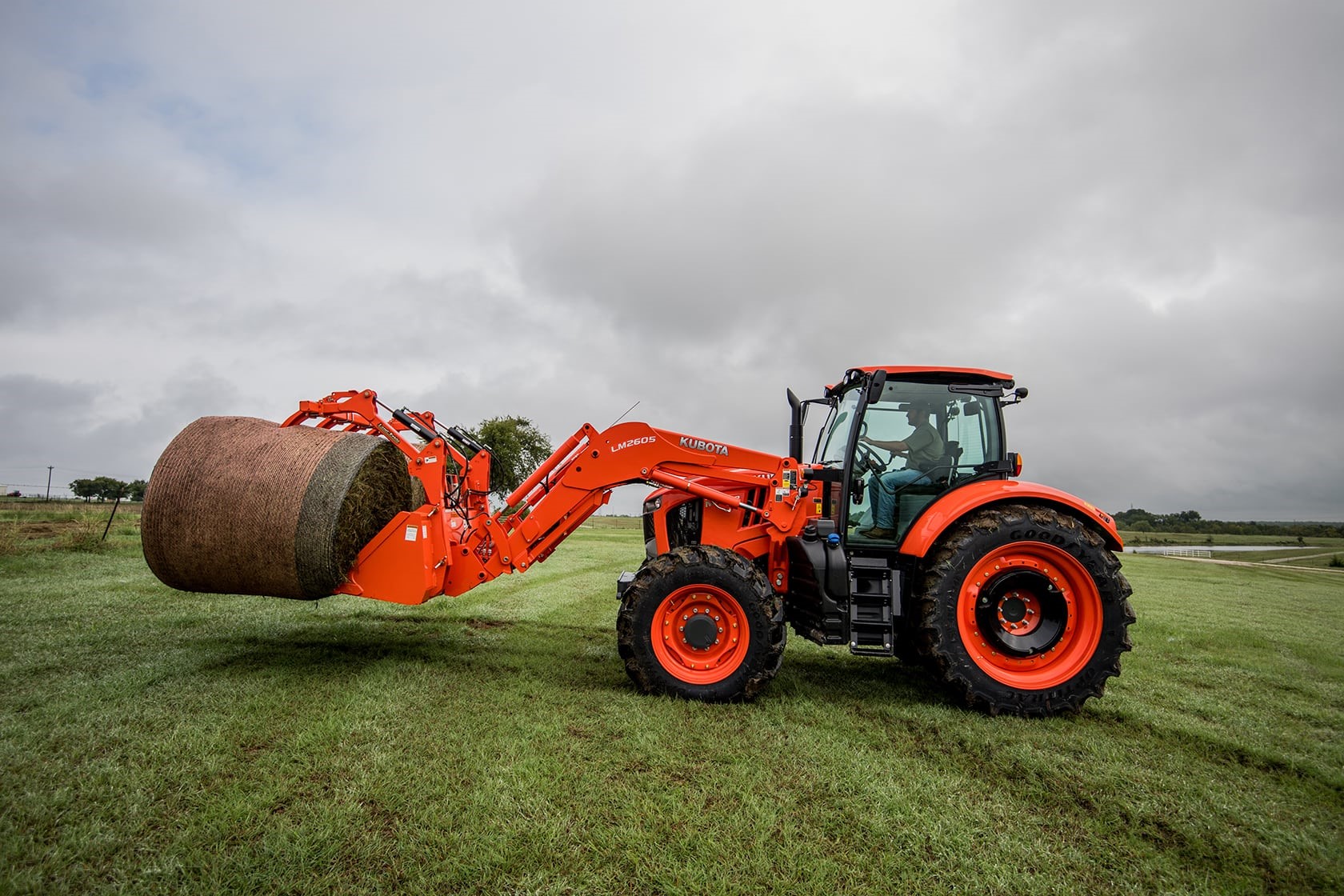

Kubota M7-134 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Battery CCA1400Reference
Battery volts12Reference
Battery AH174Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
