Tractor · 2018Unverified

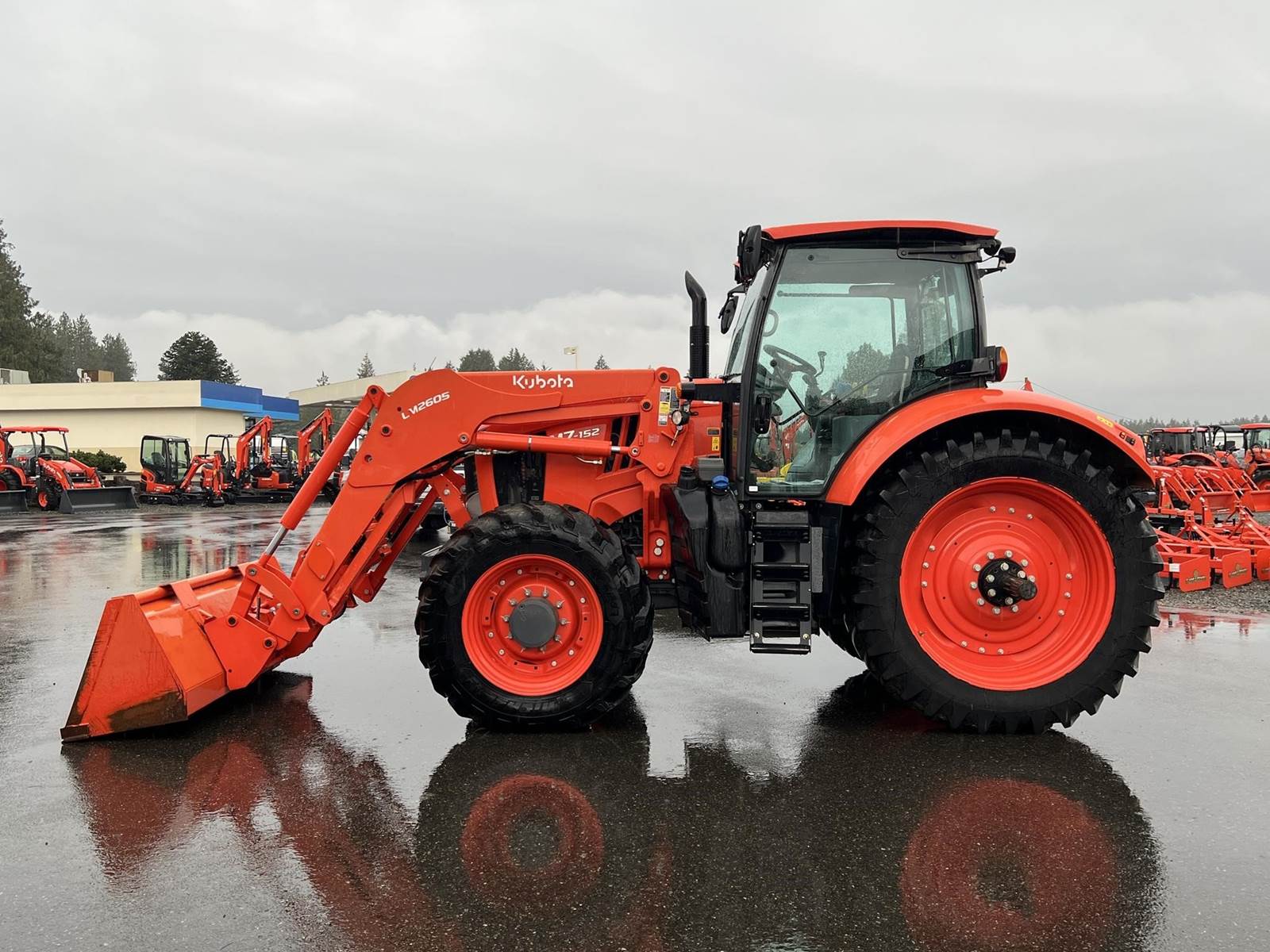

Kubota M7-152

Name: Kubota M7-152
Brand: Kubota

Kubota M7-152 — M7-2 Series · 150 hp. Reference specifications; pending source verification.

The Kubota M7-152 is a tractor with a power rating of 150 hp, categorising it among the higher-powered machines in its class. Manufactured from 2018 to 2020, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives four-wheel drive through a powershift transmission. The listed weight is 6300 kg, with an operating capacity of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

150 hp

Max power

106.3 kW

Weight

6300 kg

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

150 hp

Recorded weight

6300 kg

Transmissions

30-speed 6-speed power shift

Production years

2018-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Row-Crop tractorReference

Built in Bierne, FranceReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Kubota 6.1L 4-cyl dieselReference

Fuel tank330.1 LReference

Exhaust fluid (DEF)37.9 LReference

Engine (gross)111.9 kWReference

Engine (max)126.8 kWReference

Drawbar (tested)80.8 kWReference

Kubota V6108-CRReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke118 x 140 mmReference

EmissionsStage IVReference

Rated Power (gross)111.9 kWReference

Maximum Power (gross)126.8 kWReference

Rated RPM1900Reference

Torque688.8 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Max power106.3 kWReference

Power at rated engine speed93.4 kWReference

Max power80.8 kWReference

Transmission

30-speed 6-speed power shiftReference

infinitely variable transmissionReference

54-speed creeperReference

Type6-speed power shiftReference

Gears30 forward and 15 reverseReference

Clutchelectro-hydraulic wet discReference

Six power shift gears in five synchronized ranges with shuttle.Reference

TransmissionKVTReference

Typeinfinitely variable transmissionReference

Gearsinfinite forward and reverseReference

TypecreeperReference

Gears54 forward and 27 reverseReference

PTO & Hydraulics

PTO (tested)106.3 kWReference

Typeopen centerReference

Typeclosed centerReference

Pump flow79.9 lpmReference

Pump flow109.8 lpmReference

Rear TypeIIIReference

Controllower-link draft sensingReference

Rear lift (at ends)9399 kgReference

Front lift3900 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540E@1608Reference

Engine RPM540@2005Reference

Engine RPM1000E@1600Reference

Engine RPM1000@1995Reference

Front PTOindependentReference

Front PTO Type1000Reference

Power at rated PTO speed104.9 kWReference

Dimensions

Wheelbase272 cmReference

Weight6300 kgReference

Front tire540/65R28Reference

Rear tire650/65R38Reference

Standard tires (ag)Front: 540/65R28. Rear: 650/65R38Reference

Length477 cmReference

Width249 cmReference

Height303 cmReference

Shipping weight6300 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Test results

Diesel Power shift 4WDOctober 30 - November 7, 2019Link: OCED Tractor Test 2215 fileReference

PTO performanceReference

Fuel use31.8 l/hourReference

Fuel use30.7 l/hourReference

Fuel use32.6 l/hourReference

Drawbar performanceReference

Fuel use27.6 l/hourReference

Max pull6655 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
