Tractor · 2023Unverified

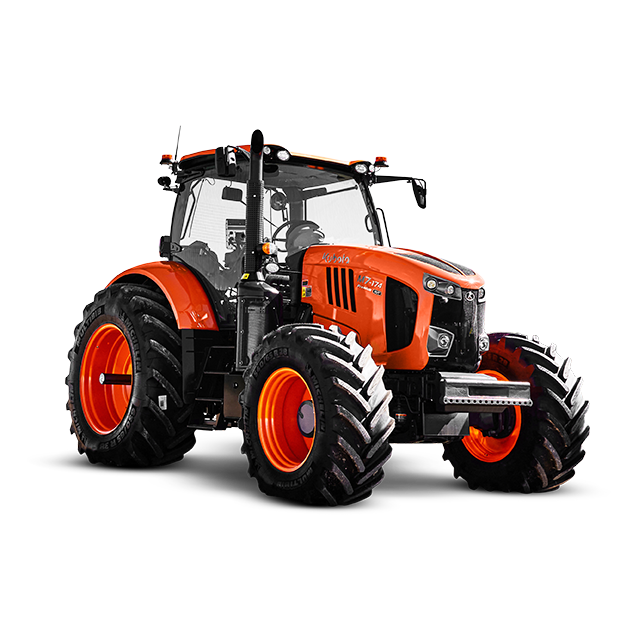

Kubota M7-174

Name: Kubota M7-174
Brand: Kubota

Kubota M7-174 — M7-4 Series · 168 hp. Reference specifications; pending source verification.

The Kubota M7-174 is a tractor model with a rated output of 168 horsepower, positioning it among the higher-powered machines in its class. Manufactured in 2023, it features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives four-wheel drive through a powershift transmission. The listed weight of the tractor is 6598 kilograms, and it is designed for applications involving around 600-1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

168 hp

Max power

168 hp (1,900 rpm)

Weight

6598 kg

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

168 hp

Recorded weight

6598 kg

Transmissions

30-speed six-speed power shift

Production years

2023-2023

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning. Available mechanical or pneumatic cab suspension.Reference

Engine

Kubota 6.1L 4-cyl dieselReference

Fuel tank329.3 LReference

Exhaust fluid (DEF)37.9 LReference

Engine (max)125.3 kWReference

Kubota V6108Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement6.1 LReference

Bore/Stroke118 x 140 mmReference

EmissionsTier IVReference

Maximum Power (gross)125.3 kWReference

Fuel systemdirect injectionReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,100 rpmReference

Bore and stroke118 × 140 mmReference

Cooling systemwater-cooledReference

Transmission

30-speed six-speed power shiftReference

continuously-variable transmissionReference

54-speed creeperReference

Typesix-speed power shiftReference

Gears30 forward and 15 reverseReference

Clutchhydraulic wet discReference

Six power shift gears in five synchronized ranges with power shuttle.Reference

TransmissionKVTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

TypecreeperReference

Gears54 forward and 27 reverseReference

Optional additional creeper range transmission for the power shift.Reference

Transmission TypeCVTReference

forward speed rangemax: 50 km/hReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)104.4 kWReference

Typeclosed center load-sensingReference

Rear valves4 or 5Reference

Pump flow109.8 lpmReference

Rear TypeIII/IIINReference

Controlelectronic lower-link draft sensingReference

Rear lift (at ends)9399 kgReference

Rear lift (at 24"/610mm)5351 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTO Type1000Reference

Dimensions

Wheelbase271 cmReference

Weight6598 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

Length299 cmReference

Width279 cmReference

Height309 cmReference

Shipping weight6598 kgReference

Front axle0 mmReference

Front axle2794 mmReference

Kubota M7-174 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Battery CCA1400Reference

Battery volts12Reference

Battery AH174Reference

Alternator size200 Amp/174 Ah (20 hr) / 1,400AReference

Capacities

Capacity6,124 CCReference

Diesel exhaust fluid (DEF) tank38 LReference

Power

Max Power168 hp (1,900 rpm)Reference

PTO

PTO Power140 hpReference

Rear PTO PowerYesReference

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

General

Cruise controltrueReference

SCV controlJoystick: AvailableReference

Hydraulics

Pump Rated Output (total)110 l/minReference

Hydraulics TypeClosed center, load sensingReference

Remote Valves5Reference

Rear Hitch category (SAE designation)Category 3 / 3NReference

Rear Hitch maximum lift capacity9,399.8 kgReference

Rear Hitch Sensing TypeElectronic draft control / Lower link sensingReference

Dimensions & weight

Overall Height3,091 mmReference

Overall Length4,770 mmReference

Overall Width2,794 mmReference

Overall weight6,597.9 kgReference

Wheels & tyres

Rear Wheel Type18.4R38Reference

Front Wheel Type14.9R28Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
