Tractor · 1986Unverified
Kubota M7030
Kubota M7030 — M30 Series · 69 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
69 hp
Max power
42.4 kW
Weight
4982 to 6040 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post ROPS.Reference
Variants
M7030F2WDReference
M7030DT4WDReference
M7030LPLow-profileReference
M7030SUshort wheelbaseReference
Engine
Kubota 4.0L 4-cyl dieselReference
Engine52.9 kWReference
Drawbar (claimed)43.6 kWReference
Drawbar (tested)42.4 kWReference
Kubota V4000Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power52.9 kWReference
Air cleanerdual dry elementReference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity13.6 LReference
Power at rated engine speed51.4 kWReference
Max power42.4 kWReference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
Clutchdry plateReference
Oil capacity50.0 LReference
Oil capacity61.2 LReference
PTO & Hydraulics
PTO (claimed)50.7 kWReference
PTO (tested)51.4 kWReference
2WD Hydraulic system50.0 LReference
4WD Hydraulic system61.3 LReference
Typeopen centerReference
2WD Capacity50.0 LReference
4WD Capacity61.3 LReference
Pressure181.3 barReference
Valves1Reference
Total flow41.6 lpmReference
Rear TypeIIReference
Rear lift (at ends)2199 kgReference
Rear lift (at 24"/610mm)2029 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2035Reference
Power at rated PTO speed48.0 kWReference
Capacities
Fuel64.0 LReference
Dimensions
Wheelbase221 cmReference
Wheelbase226 cmReference
SU Wheelbase211 cmReference
Weight4982 to 6040 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30 (2WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 16.9-30 (2WD)Reference
Standard tires (ag)Front: 9.5-24. Rear: 16.9-30 (4WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 16.9-24 (Low-profile 2WD)Reference
Standard tires (ag)Front: 9.5-20. Rear: 16.9-24 (Low-profile 4WD)Reference
Optional tires (ag)Front: 7.50-18. Rear: 18.4-30 (2WD)Reference
Optional tires (ag)Front: 11.2-24. Rear: 18.4-30 (4WD)Reference
2WD Length368 cmReference
4WD Length383 cmReference
SU Length357 cmReference
4WD Low-Profile Length377 cmReference
Width194 cmReference
Width194 cmReference
Ground clearance36 cmReference
Ground clearance51 cmReference
Ground clearance42 cmReference
Ground clearance31 cmReference
Front tread144 to 203 cmReference
Front tread147 to 156 cmReference
Rear tread161 to 191 cmReference
2WD Shipping2259 kgReference
4WD Shipping2739 kgReference
Ballasted4266 kgReference

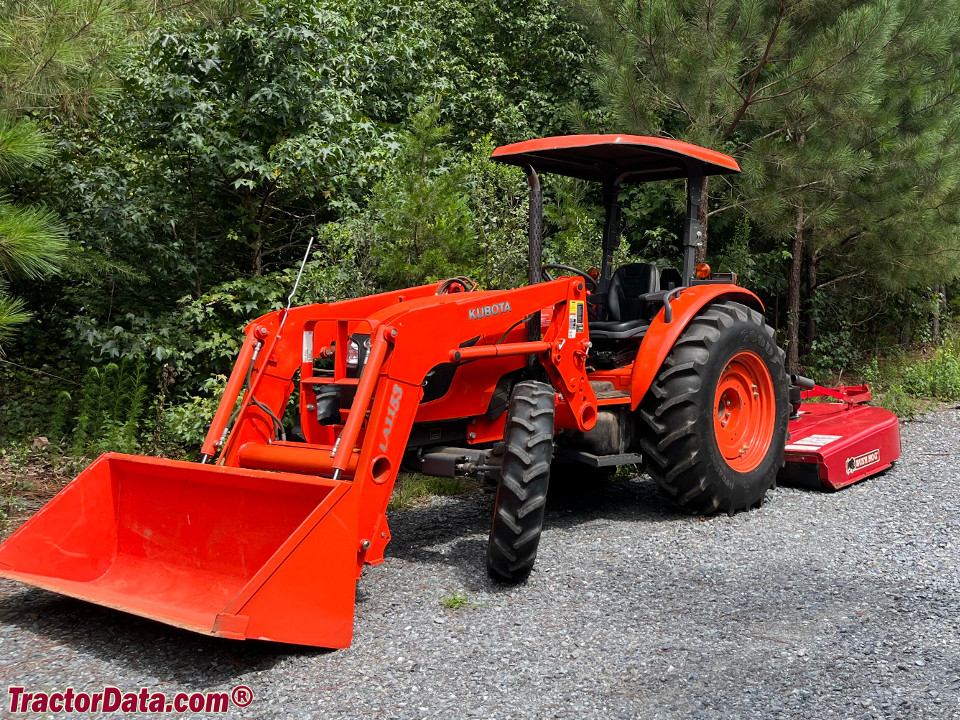

Kubota M7030 attachments
front-end loaderReference
Electrical
Ground145 (2WD)Reference
Ground151 (4WD)Reference
Battery volts12Reference
Attachment overview
Kubota M1250 loaderReference
Kubota M1880A loaderReference
Kubota M7030 Height
Hood148 cmReference
Hood139 cmReference
Hood143 cmReference
Exhaust229 cmReference
Test results
Diesel 16-speed 4WDMay 14 - June 2, 1986Link: Nebraska Tractor Test 1597 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use14.0 l/hourReference
Drawbar performanceReference
Fuel use15.1 l/hourReference
Max pull3367 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
