Tractor · 2013Unverified
Kubota M7060
Kubota M7060 — M60 Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
5027 to 5380 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Brakeswet discReference
Brakeshydraulic wet disc (12-speed)Reference
Two-post foldable ROPS. Optional Ultra Grand Cab with air-conditioning. Optional air-ride seat and AM/FM/CD/MP3 sound system.Reference
Variants
M7060HF2WD ROPS 8-speedReference
M7060HFC2WD Cab 8-speedReference
M7060HD4WD ROPS 8-speedReference
M7060HDC4WD Cab 8-speedReference
M7060HD124WD ROPS 12-speedReference
M7060HDC124WD Cab 12-speedReference
Engine
Kubota 3.3L 4-cyl dieselReference
ROPS Fuel tank70.0 LReference
Cab Fuel tank90.1 LReference
Engine (net)52.9 kWReference
Kubota V3307-CF-TE4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke94 x 119 mmReference
EmissionsTier IVReference
Emission controlexhaust gas recirculation (EGR)Reference
Power (net)52.9 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed power shuttleReference
12-speedReference
Typepower shuttleReference
Gears8 forward and reverseReference
Clutchwet discsReference
Four synchronized gears (1-4) in two ranges (low/high).Reference
Transmissionpower shuttleReference
Gears12 forward and reverseReference
Six synchronized gears (1-6) in two ranges (low/high).Reference
PTO & Hydraulics
PTO (claimed)47.7 kWReference
Valves1 to 3Reference
Pump flow41.6 lpmReference
Pump flow61.3 lpmReference
Rear TypeII/IReference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)1500 kgReference
Rear Armstelescopic lower link endsReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375Reference
Rear PTO Type540/540E (1.375)Reference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase211 cmReference
Weight5027 to 5380 poundsReference
Front tire7.5-16Reference
Rear tire16.9-30 (2WD)Reference
Standard tires (ag)Front: 7.5-16. Rear: 16.9-30 (2WD)Reference
Standard tires (ag)Front: 9.5-24. Rear: 16.9-30 (4WD)Reference
2WD Length362 cmReference
4WD Length350 cmReference
Width185 cmReference
Height (ROPS)246 cmReference
Height (cab)256 cmReference
Clearance (front axle)45 cmReference
Flange rear axleReference
Front tread141 to 182 cmReference
Front tread141/151 cmReference
Rear tread141 to 171 cmReference
2280 kgReference
2380 kgReference
2440 kgReference
Kubota M7060 attachments

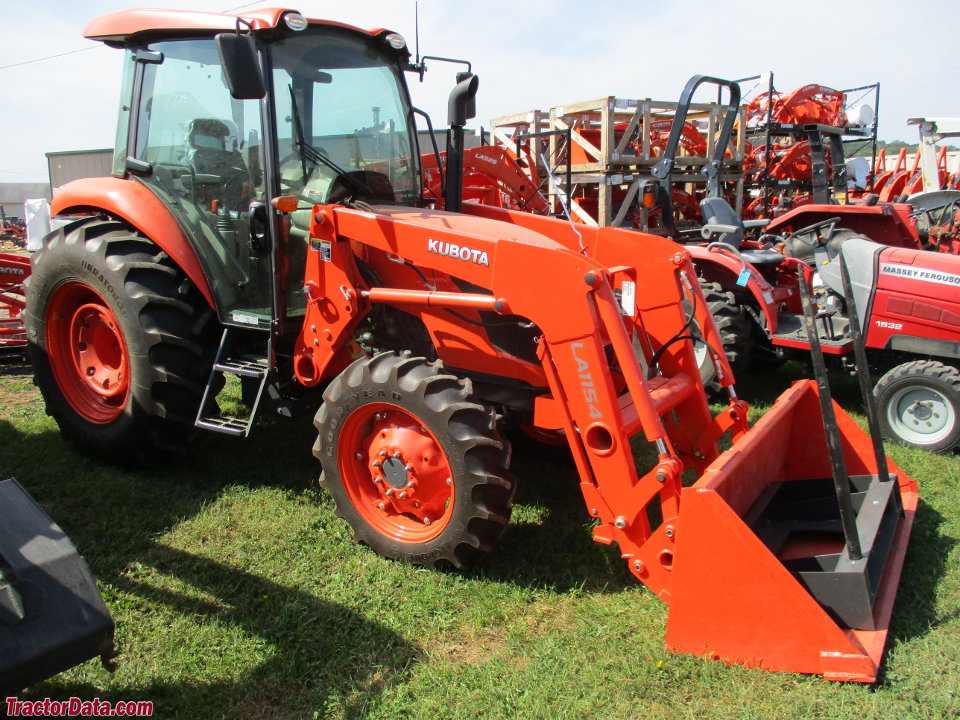

front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Optional Charging amps100Reference
Battery volts12Reference
Attachment overview

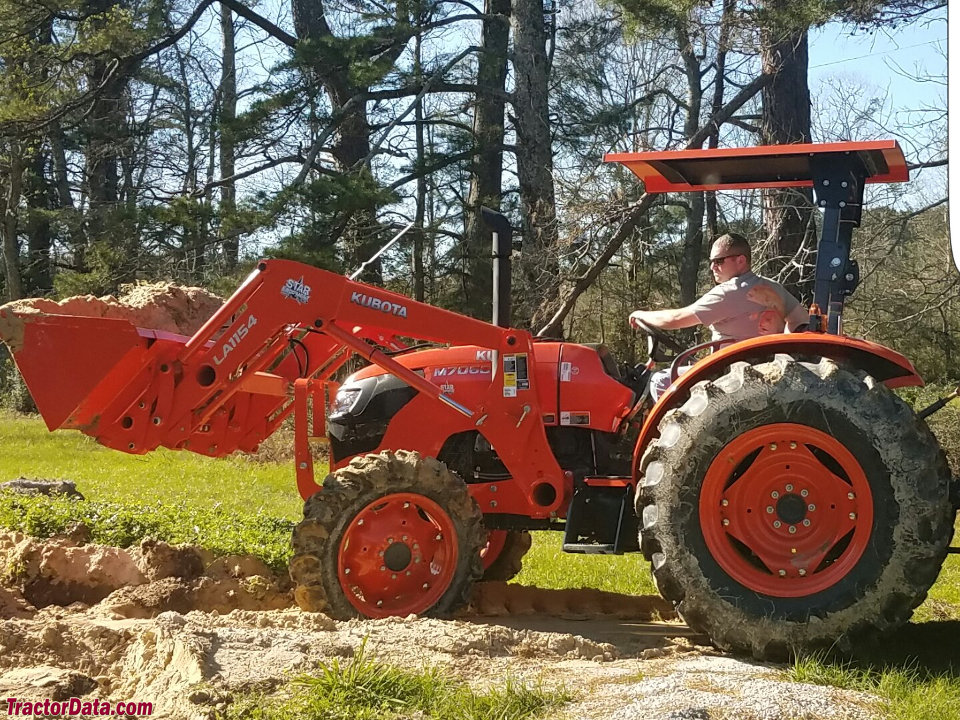

Kubota LA1154 loaderReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
