Tractor · 1979Unverified

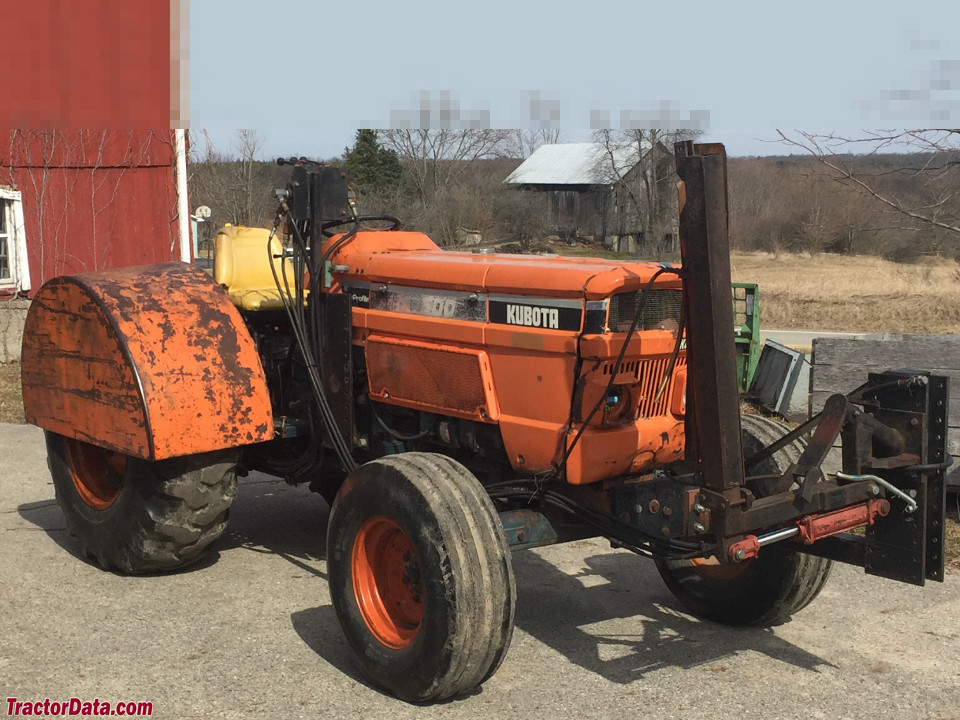

Kubota M7500
Kubota M7500 — Utility tractor · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Max power
44.0 kW
Weight
5082 to 5980 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post ROPS. Optional canopy.Reference
Variants
M7500DT4WDReference
Engine
Kubota 4.0L 4-cyl dieselReference
Fuel tank72.3 LReference
Engine (gross)60.4 kWReference
Drawbar (tested)44.0 kWReference
Kubota V4000 AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power (gross)60.4 kWReference
Air cleanersingle paper elementReference
Compression17.0:1Reference
Rated RPM2400Reference
Starter volts12Reference
Power at rated engine speed53.9 kWReference
Max power44.0 kWReference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
PTO (tested)53.9 kWReference
Typeopen centerReference
Valves1Reference
Total flow35.0 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1696 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Engine RPM540@2016Reference
Power at rated PTO speed49.6 kWReference
Dimensions
2WD Wheelbase215 cmReference
4WD Wheelbase217 cmReference
Weight5082 to 5980 poundsReference
Front tire7.50-16Reference
2WD Rear tire18.4-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 18.4-28Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 18.4-28Reference
2WD Length362 cmReference
4WD Length375 cmReference
2WD Width184 cmReference
4WD Width196 cmReference
2WD Height (exhaust)228 cmReference
4WD Height (exhaust)231 cmReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)37 cmReference
2WD Front tread137 to 197 cmReference
4WD Front tread150 cmReference
Rear tread150 to 191 cmReference
2WD Shipping2305 kgReference
4WD Shipping2544 kgReference
4WD Operating2712 kgReference
Ballasted4313 kgReference
Kubota M7500 attachments
front-end loaderReference
M7500 Serial Numbers
Location:Serial number on the left side of the tractor's clutch housing.Reference
197910001 (M7500C)Reference
198010026 (M7500C)Reference
198110294 (M7500C)Reference
198210577 (M7500C)Reference
197810001 (M7500DT)Reference
197910401 (M7500DT)Reference
198010436 (M7500DT)Reference
198110761 (M7500DT)Reference
198211490 (M7500DT)Reference
198311744 (M7500DT)Reference
198450056 (M7500DT)Reference
198560011 (M7500DT)Reference
198669966 (M7500DT)Reference
FAQ: How to read a serial number table.Reference
Test results
Diesel 16-speed 4WDMay 13 - 27, 1980Link: Nebraska Tractor Test 1349 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Fuel use14.0 l/hourReference
Drawbar performanceReference
Fuel use15.9 l/hourReference
Max pull3547 kgReference
Speeds
With 18.4-26 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
