Tractor · 1991Unverified

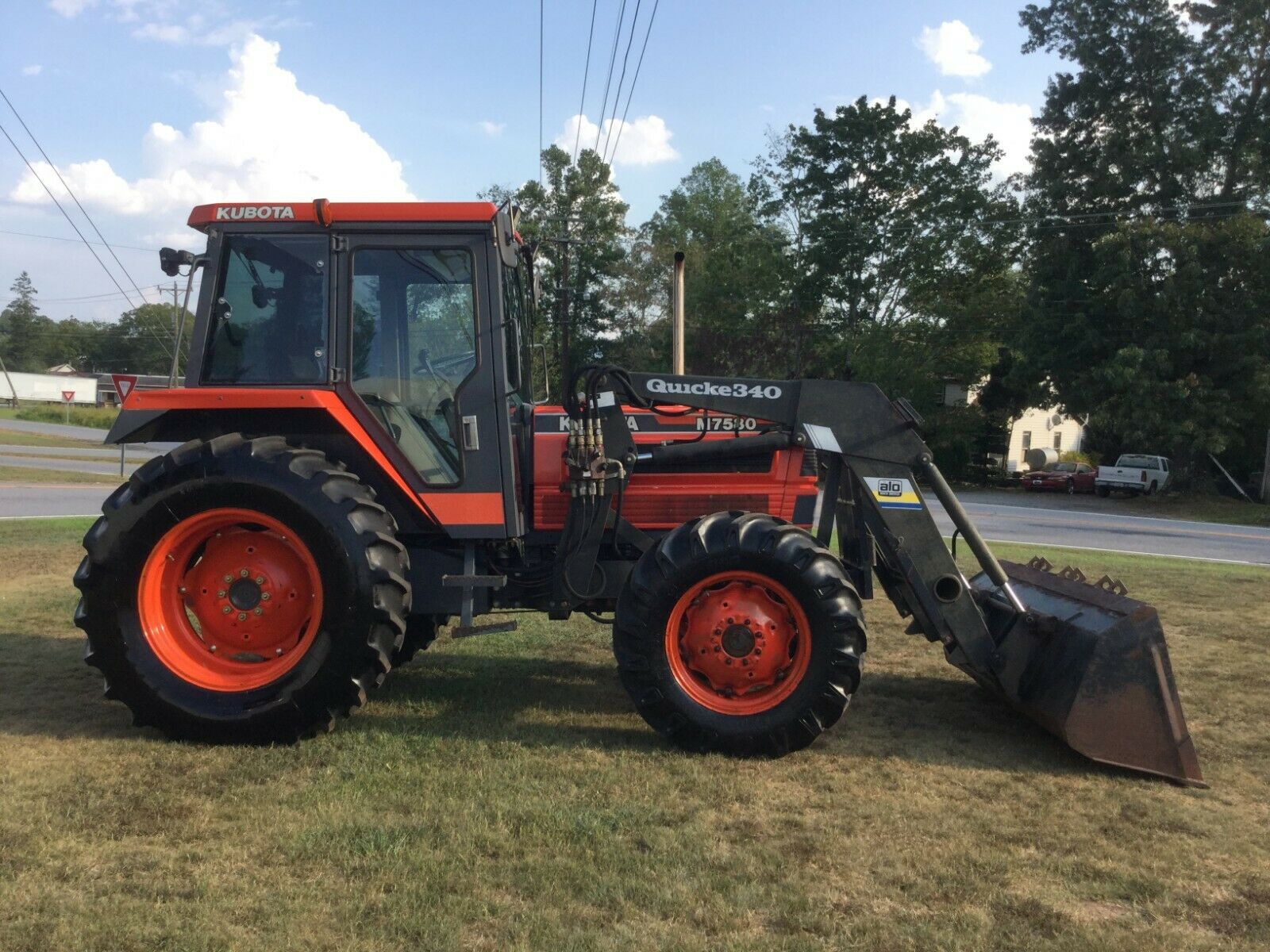

Kubota M7580
Kubota M7580 — M80 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3099 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Kubota 4.3L 4-cyl dieselReference
Fuel tank104.8 LReference
Engine57.4 kWReference
Kubota V4302-AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke105 x 125 mmReference
Power57.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
Coolant capacity14.4 LReference
Transmission
12-speed power shuttleReference
Typepower shuttleReference
Gears12 forward and reverseReference
Six synchronized gears in two ranges with hydraulic shuttle.Reference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow79.9 lpmReference
Total flow112.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)2634 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase230 cmReference
Weight3099 kgReference
Front tire12.4-24Reference
Rear tire18.4-30Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference
Optional tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Optional tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
Optional tires (ag)Front: 12.4-24. Rear: 15.5-38Reference
Lawn/turf front41/14-20Reference
Lawn/turf rear23.1-26Reference
Length392 cmReference
Width200 cmReference
Height (cab)262 cmReference
Ground clearance46 cmReference
Front tread153 to 173 cmReference
Rear tread151 to 201 cmReference
Kubota M7580 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Attachment overview
Kubota M1275 loaderReference
Kubota M1410 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
