Tractor · 1986Unverified

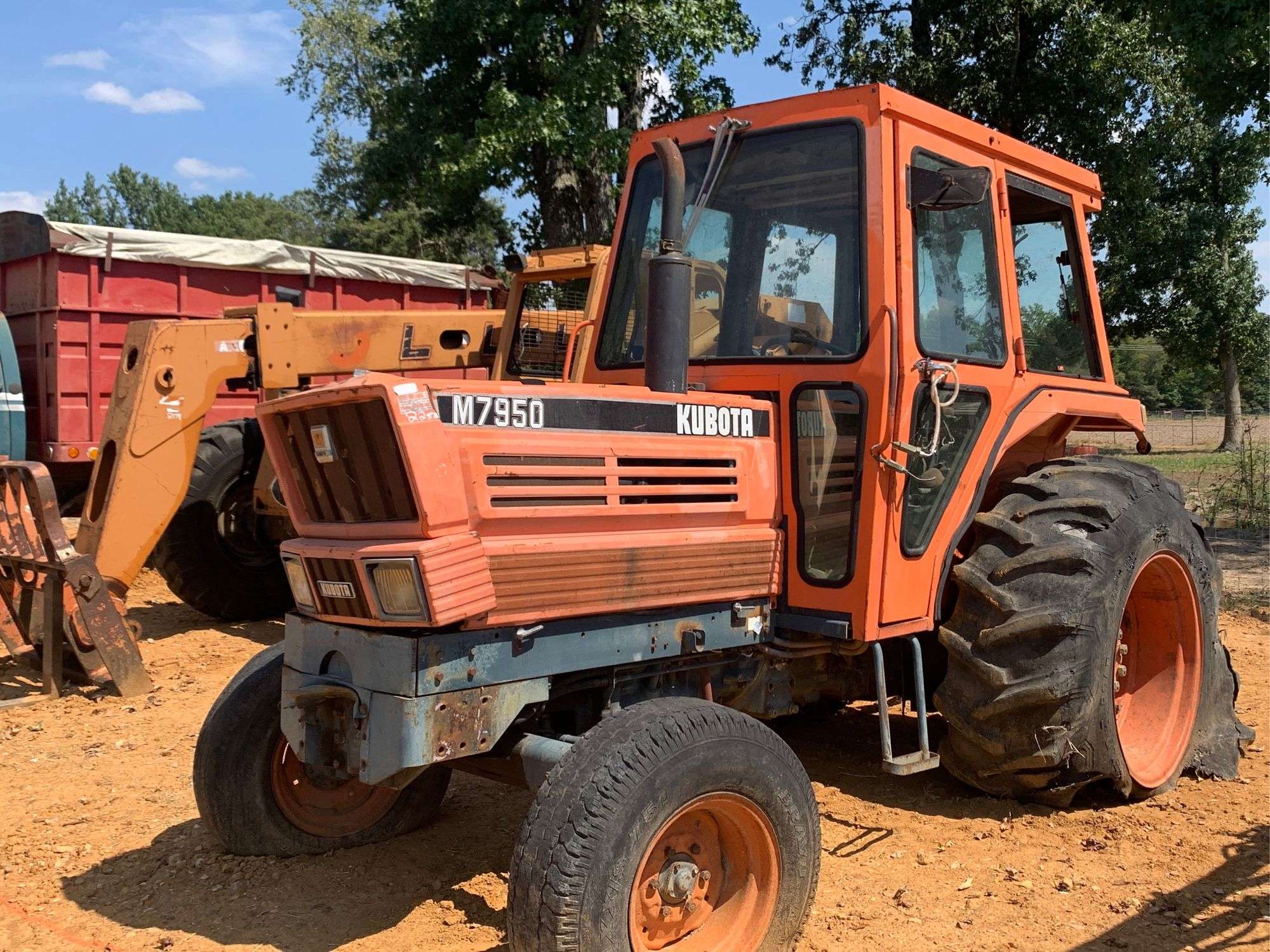

Kubota M7950HC
Kubota M7950HC — High-Clearance tractor · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Hover a source tag to verify
Overview
ManufacturerKubotaReference
High-Clearance tractorReference
Built in JapanReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Four-post ROPS canopy. Cab optional.Reference
Variants
M7950F2WDReference
M7950DT4WDReference
M7950FWwide-treadReference
M7950DTMmudderReference
M7950HChigh-cropReference
Engine
Kubota 4.3L 4-cyl dieselReference
Engine (net)60.4 kWReference
Kubota V4300Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke109 x 115 mmReference
Power (net)60.4 kWReference
Air cleanerdry elementReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity13.6 LReference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)56.3 kWReference
Hydraulic system50.0 LReference
Typeopen centerReference
Capacity50.0 LReference
Pressure181.3 barReference
Valves1 or 2Reference
Total flow41.6 lpmReference
Rear TypeIIReference
Rear lift (at ends)2199 kgReference
Rear lift (at 24"/610mm)2029 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel99.9 LReference
Dimensions
Wheelbase222 cmReference
Front tire7.50-18Reference
Rear tire13.6-46Reference
Ag front7.50-18Reference
Ag rear13.6-46Reference
Ground clearance60 cmReference
Front tread142 to 203 cmReference
Rear tread193 to 203 cmReference
Electrical
Charging systemalternatorReference
Charging amps65 (with cab)Reference
Battery volts12Reference
Battery AH300Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
