Tractor · 1990Unverified

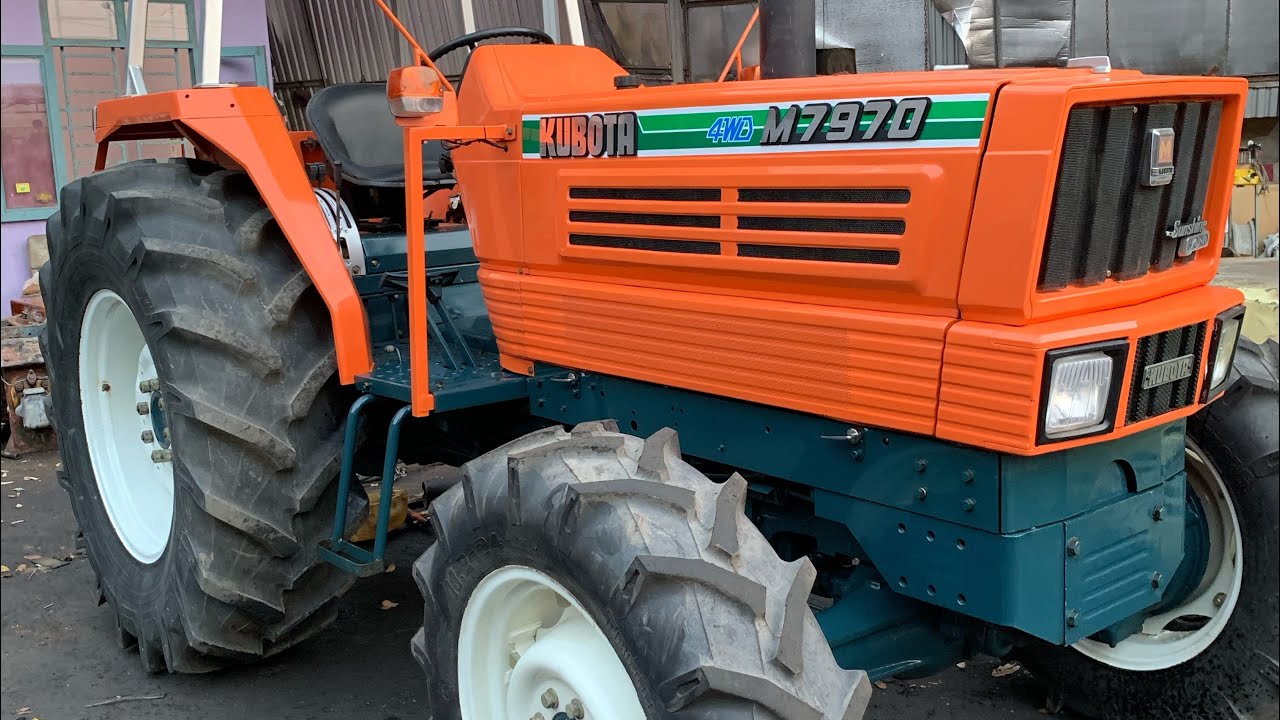

Kubota M7970
Kubota M7970 — Utility tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
3149 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Differential lockstandardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Kubota 4.3L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine (gross)65.6 kWReference
Engine (net)61.1 kWReference
Kubota V4300Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke109 x 115 mmReference
Power (net)61.1 kWReference
Power (gross)65.6 kWReference
Rated RPM2400Reference
Torque284.5 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity13.6 LReference
PTO & Hydraulics
PTO (claimed)56.2 kWReference
Pressure181.3 barReference
Pump flow61.7 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2699 kgReference
Rear lift (at 24"/610mm)2199 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase226 cmReference
Weight3149 kgReference
Front tire11.2-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-34Reference
Length388 cmReference
Width203 cmReference
Height (exhaust)265 cmReference
Ground clearance38 cmReference
Front tread153 to 173 cmReference
Rear tread156 to 197 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH200Reference
Transmission
Clutchdry discReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
