Tractor · 2020Unverified

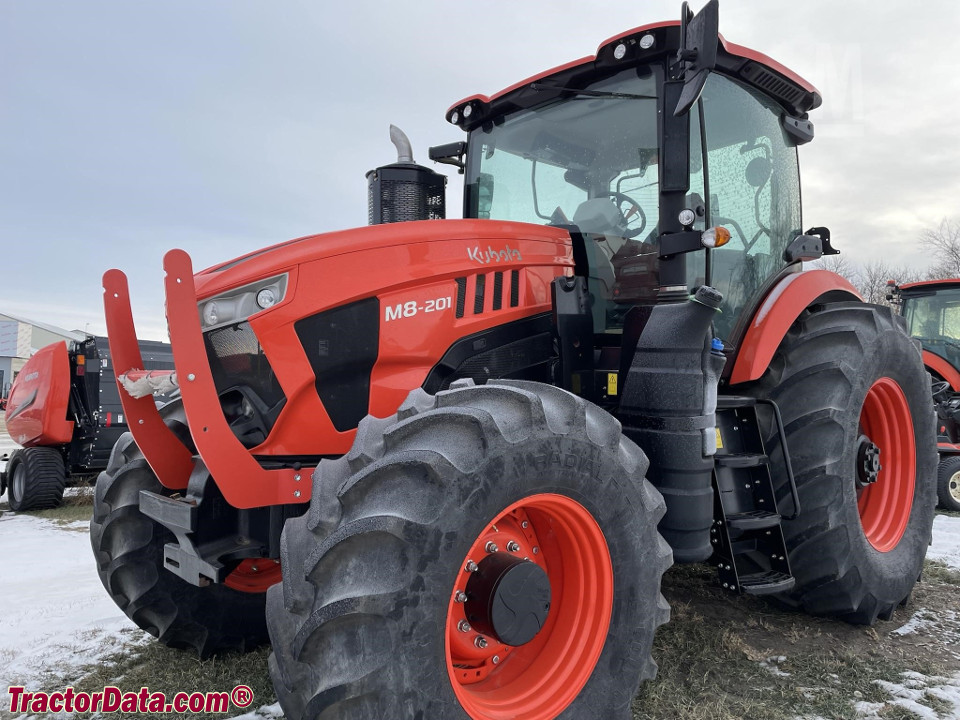

Kubota M8-201
Kubota M8-201 — M8 Series · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Max power
122.7 kW
Weight
8849 kg
Hover a source tag to verify
Overview
DistributorKubotaReference
ManufacturerVersatileReference
Row-Crop tractorReference
Built in Winnigpeg, Manitoba, CanadaReference
Four-wheel driveReference
Power steeringReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
Cummins 6.7L 6-cyl dieselReference
Fuel tank374.7 LReference
Exhaust fluid (DEF)34.1 LReference
Engine149.1 kWReference
Drawbar (tested)122.7 kWReference
Cummins B6.7Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke107 x 124 mmReference
EmissionsTier 4Reference
Power149.1 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed134.1 kWReference
Max power122.7 kWReference
Transmission
30-speed six-speed power shiftReference
continuously-variable transmissionReference
Typesix-speed power shiftReference
Gears30 forward and 15 reverseReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)118.6 kWReference
PTO (tested)134.1 kWReference
Typeclosed-center load sensingReference
Rear valves3 to 5Reference
Pump flow120.0 lpmReference
Pump flow159.7 lpmReference
SCV flow120.0 lpmReference
Steering flow42.0 lpmReference
Rear TypeIII/IIINReference
Rear lift (at 24"/610mm)5660 kgReference
Rear lift (at 24"/610mm)7050 kgReference
Front HitchIIINReference
Front lift3999 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000 (1.375)Reference
Power at rated PTO speed129.7 kWReference
Dimensions
Wheelbase289 cmReference
Weight8849 kgReference
Height325 cmReference
Shipping weight8849 kgReference
Bar rear axle104 by 2489 mmReference
Bar rear axle104 by 2997 mmReference
Kubota M8-201 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 30-speed 4WDJune 10 - July 15, 2020Link: OCED Tractor Test 2218 fileReference
PTO performanceReference
Fuel use39.7 l/hourReference
Fuel use37.5 l/hourReference
Drawbar performanceReference
Fuel use39.4 l/hourReference
Max pull9926 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
