Tractor · 2008Unverified

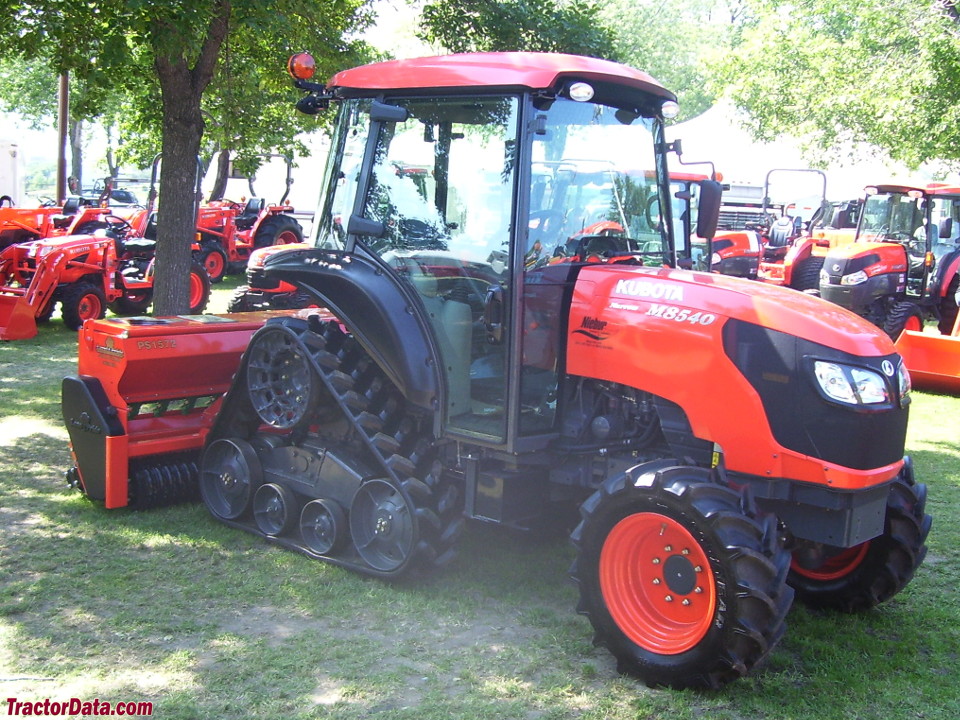

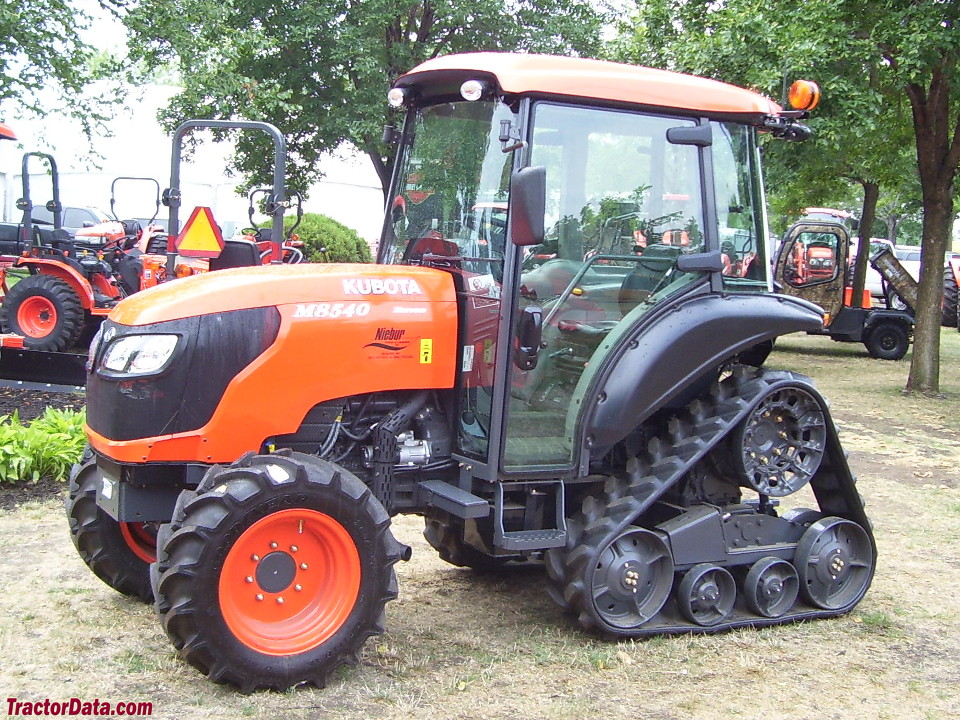

Kubota M8540 Power Krawler
Kubota M8540 Power Krawler — Half-track Crawler tractor · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
2950 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Half-track Crawler tractorReference
Original price$53,523Reference
Drivehalf-trackReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Cab standard with heat and air-conditioning. Optional radio/CD-player.Reference
Variants
M8540wheeled tractorReference
M8540HDNBPCPower Krawler half-trackReference
Engine
Kubota 3.8L 4-cyl dieselReference
Engine (net)63.8 kWReference
front-end loaderReference
Ag front9.5-16Reference
Ag rear300mm tracksReference
Ag front280/70R18Reference
Kubota V3800DI-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
EmissionsTier IIIReference
Emission controlEGRReference
Power (net)63.8 kWReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity10.7 LReference
Coolant capacity9.0 LReference
Transmission
8-speedReference
Transmissionsync shuttleReference
Gears8 forward and reverseReference
Clutchwet discReference
Oil capacity40.1 LReference
PTO & Hydraulics
PTO (claimed)56.7 kWReference
Hydraulic system40.1 LReference
Typeopen centerReference
Capacity40.1 LReference
Pressure191.0 barReference
Valves1 to 3Reference
Pump flow41.6 lpmReference
Total flow64.7 lpmReference
Steering flow23.1 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1905 kgReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Capacities
Fuel70.0 LReference
Front axle8.0 LReference
Dimensions
Wheelbase215 cmReference
Weight2950 kgReference
Front tire9.5-16Reference
Rear tiretracksReference
Length351 cmReference
Width137 cmReference
Height (cab)233 cmReference
Clearance (front axle)39 cmReference
Front tread109 cmReference
Rear tread106 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps60Reference
Charging amps80 (optional)Reference
Battery CCA900Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
