Tractor · 2013Unverified

Kubota M8560

Name: Kubota M8560
Brand: Kubota

Kubota M8560 — M60 Series · 86 hp. Reference specifications; pending source verification.

The Kubota M8560 is a tractor with a rated output of 86 hp, positioning it in the middle power range of its class. Manufactured from 2013 to 2016, it features a 4-cylinder turbocharged diesel liquid-cooled engine. The tractor's power is transmitted through a hydrostatic transmission to all four wheels. Its listed weight ranges from 5400 to 6680 pounds, making it suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Max power

85.5 hp

Weight

5400 to 6680 pounds

Catalogue coverage

Variants represented

Richest spec table

120 rows

Recorded power

86 hp

Transmissions

8-speed power shuttle

Production years

2013-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Optional Ultra Grand Cab with air-conditioning. Optional air-ride seat and AM/FM/CD/MP3 sound system.Reference

Variants

M8560HF2WD ROPS 8-speedReference

M8560HFC2WD Cab 8-speedReference

M8560HD4WD ROPS 8-speedReference

M8560HDC4WD Cab 8-speedReference

M8560HD124WD ROPS 12-speedReference

M8560HDC124WD Cab 12-speedReference

Engine

Kubota 3.8L 4-cyl dieselReference

ROPS Fuel tank90.1 LReference

Cab Fuel tank110.1 LReference

Engine (net)63.8 kWReference

Kubota V3800-CR-TE4Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

EmissionsInterim Tier IVReference

Emission controlexhaust gas recirculation (EGR)Reference

Power (net)63.8 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM2400 (ROPS)Reference

Rated RPM2600 (cab)Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Emissions complianceInterim Tier IV | exhaust gas recirculation (EGR)Reference

Bore and stroke3.94x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed power shuttleReference

12-speedReference

Typepower shuttleReference

Gears8 forward and reverseReference

Clutchwet discsReference

Four synchronized gears (1-4) in two ranges (low/high).Reference

Transmissionpower shuttleReference

Gears12 forward and reverseReference

Six synchronized gears (1-6) in two ranges (low/high).Reference

Transmission TypePower ShuttleReference

forward and reverse optionsPower Shuttle : 8 F and 8 R | Power Shuttle : 12 F and 12 RReference

Wheel Drive2 WD | 4 WDReference

PTO & Hydraulics

PTO (claimed)56.7 kWReference

Valves1 to 3Reference

ROPS Pump flow60.2 lpmReference

Cab Pump flow64.3 lpmReference

Rear TypeIIReference

Controlposition control and top-link draft sensingReference

Rear lift (at 24"/610mm)2100 kgReference

Rear lift (at 24"/610mm)3299 kgReference

Rear Armstelescopic lower link endsReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375Reference

Rear PTO Type540/540E (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

ROPS Wheelbase228 cmReference

Cab Wheelbase225 cmReference

Weight5400 to 6680 poundsReference

Front tire7.50-18Reference

Rear tire16.9-30 (2WD)Reference

Standard tires (ag)Front: 7.50-18. Rear: 16.9-30 (2WD)Reference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-30 (4WD)Reference

2WD Length388 cmReference

4WD Length375 cmReference

Width195 cmReference

Width198 cmReference

Height (ROPS)251 cmReference

Height (cab)254 cmReference

2WD Clearance (front axle)52 cmReference

4WD Clearance (front axle)47 cmReference

Flange rear axleReference

Front tread144 to 203 cmReference

Front tread151 to 162 cmReference

Rear tread151 to 192 cmReference

2449 kgReference

2639 kgReference

2839 kgReference

3030 kgReference

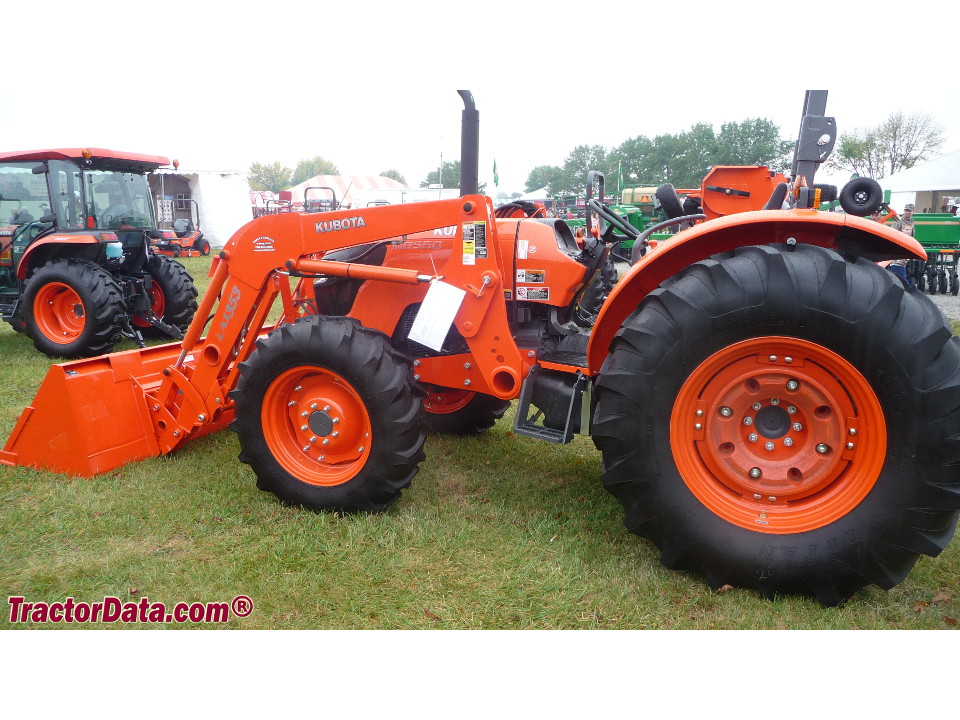

Kubota M8560 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps60Reference

Optional Charging amps100Reference

Battery volts12Reference

Attachment overview

Kubota LA1353A loaderReference

General

Make & ModelKubotaReference

Rear Axle TypeFlangeReference

Rollover protective structureTwo-post foldable ROPSReference

Capacities

Capacity230 ciReference

Fuel tank110.2 LReference

Power

Max Power85.5 hpReference

PTO

PTO Power76 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet disc brakesReference

Steering typeHydrostatic PowerReference

Hydraulics

Remote Valves1 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeposition control and top-link draft sensingReference

Dimensions & weight

Wheelbase228.6 cmReference

Height Over ROPS251.5 cmReference

Height Over Cab254.5 cmReference

Overall Width198.1 cmReference

Front axle clearance47.5 cmReference

Overall weight2,639.9 kgReference

Wheels & tyres

Rear Wheel TypeRear: 16.9-30 (2WD) | Rear: 16.9-30 (4WD)Reference

Rear wheel tread range59.8 to 75.6 inchesReference

Front Wheel TypeFront: 7.50-18. (2WD) | Front: 11.2-24(4WD)Reference

Front Wheel tread range59.8 to 63.8 inchesReference

Operator station

Cab AvailabilityAVAILABLEReference

Cab Air conditioning, temperature differentialOptional Ultra Grand Cab with air-conditioning.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
