Tractor · 1991Unverified

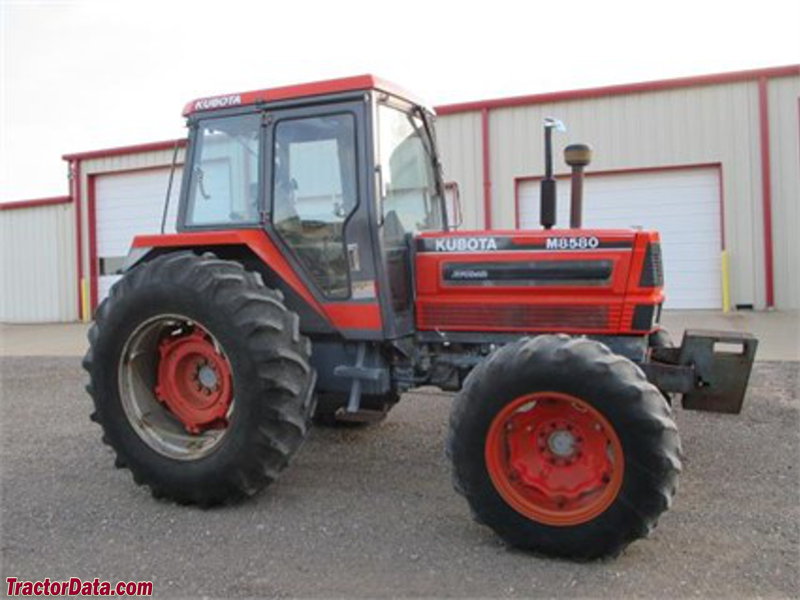

Kubota M8580
Kubota M8580 — M80 Series · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
3799 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Kubota 4.7L 4-cyl dieselReference
Fuel tank104.8 LReference
Engine (net)63.4 kWReference
Kubota V4702-AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke109 x 125 mmReference
Power (net)63.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
12-speed mechanical shuttleReference
Typepower shuttleReference
Gears12 forward and reverseReference
Six synchronized gears in two ranges with hydraulic shuttle. The power shuttle was used on the M8580 with cab.Reference
Typemechanical shuttleReference
Six synchronized gears in two ranges with mechanical shuttle. Clutch required to shift direction. The mechanical shuttle transmission was used on the M8580 when fitted with ROPS.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow79.9 lpmReference
Total flow112.0 lpmReference
Steering flow32.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)2634 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase244 cmReference
Weight3799 kgReference
Front tire13.6-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Optional tires (ag)Front: 12.4-24. Rear: 15.5-38Reference
Optional tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
Length410 cmReference
Width201 cmReference
Height (cab)265 cmReference
Ground clearance61 cmReference
Front tread164 to 173 cmReference
Rear tread150 to 211 cmReference
Kubota M8580 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Kubota M1275 loaderReference
Kubota M1410 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
