Tractor · 2002Unverified

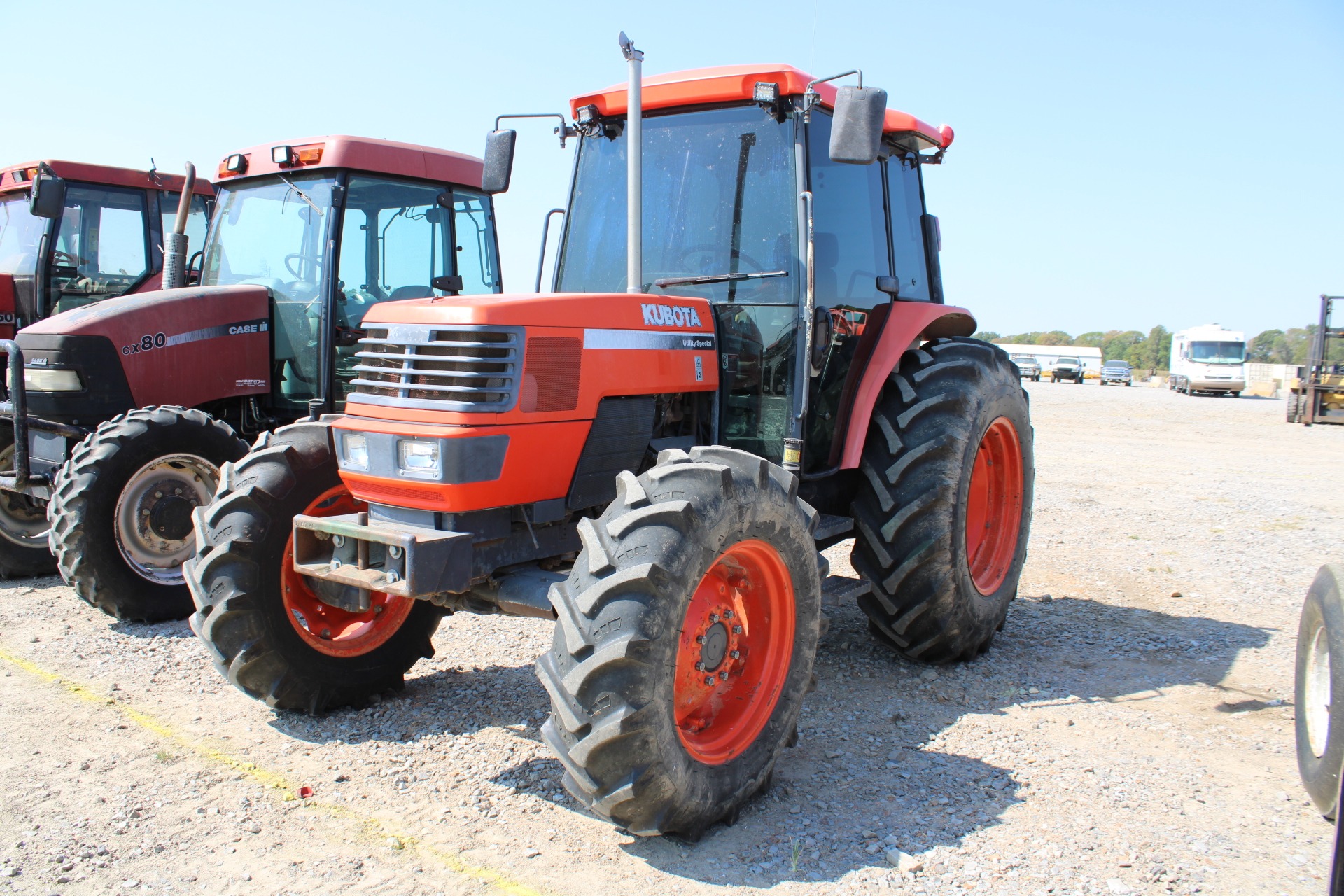

Kubota M90
Kubota M90 — Grandom Series · 89 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
89 hp
Weight
3289 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 4.7L 4-cyl dieselReference
Fuel tank149.9 LReference
Engine66.2 kWReference
Kubota V4702Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke109 x 125 mmReference
Power66.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchromeshReference
16-speed power shiftReference
24-speed creeperReference
TypesynchromeshReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges with additional high/low shift.Reference
Typepower shiftReference
Clutchhydraulic wet discReference
Eight power-shift gears in two ranges with shuttle.Reference
TypecreeperReference
Gears24 forward and reverseReference
1C:2C:3C:4C:5C:6C:7C:8C;:0.12:0.16:0.21:0.26:0.32:0.41:0.51:0.65Reference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear lift2804 kgReference
Rear lift3895 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2211Reference
Dimensions
Wheelbase230 cmReference
Weight3289 kgReference
Front tire9.5-24Reference
Rear tire13.9-36Reference
Standard tires (ag)Front: 9.5-24. Rear: 13.9-36Reference
Length388 cmReference
Width187 cmReference
Height261 cmReference
Ground clearance43 cmReference
Front tread133 to 151 cmReference
Rear tread132 to 192 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
