Tractor · 1997Unverified
Kubota M9000
Kubota M9000 — M Series · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Max power
60.4 kW
Weight
5675 to 6750 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockfront and rear standardReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Variants
M9000F2WDReference
M9000DT4WDReference

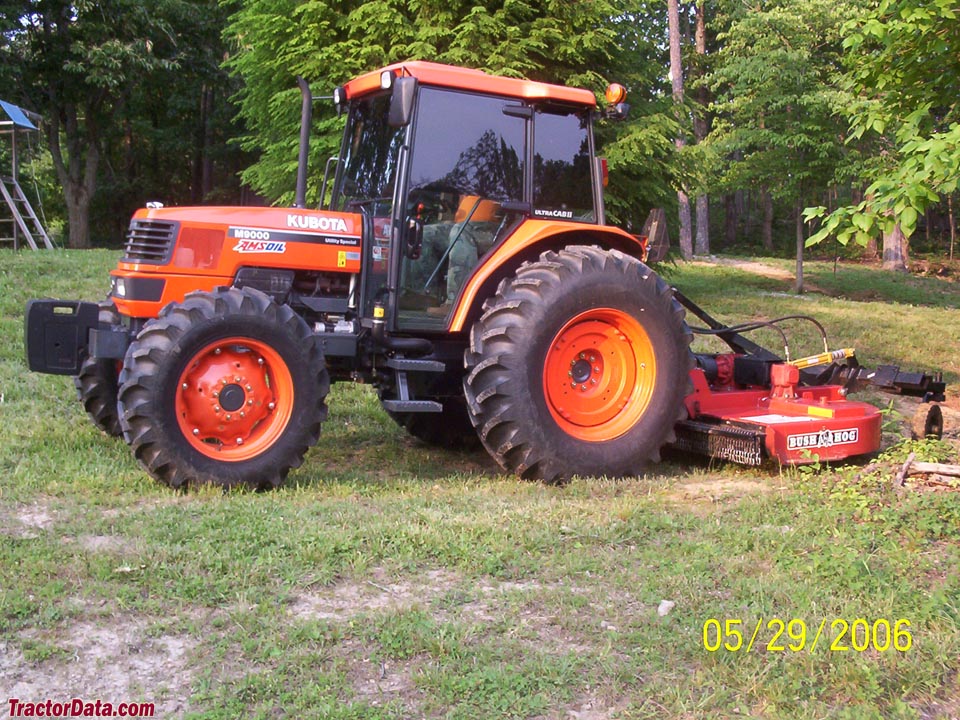

M9000DTC4WD CabReference
M9000DTLlow-profileReference
M9000DTMmudderReference
Engine
Kubota 3.3L 4-cyl dieselReference
Engine (gross)68.7 kWReference
Kubota V3300-TIEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
Power (gross)68.7 kWReference
Air cleanerdual dry elementReference
Compression21.8:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity10.7 LReference
Coolant capacity9.0 LReference
Max power60.4 kWReference
Power at rated engine speed59.9 kWReference
Transmission
8-speed synchronizedReference
8-speed power shuttleReference
TypesynchronizedReference
Gears8 forward and reverseReference
Clutchdry discReference
Oil capacity51.9 LReference
Four gears (1-4) in two ranges. (low/high) with shuttle.Reference
Typepower shuttleReference
Clutchhydraulic wet discReference
The hydraulic power shuttle transmission became available in 2003. A creeper option was also available increasing speeds to 12/12.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)60.4 kWReference
Hydraulic system51.9 LReference
Typeopen centerReference
Capacity51.9 LReference
Valves1 to 3Reference
Pump flow87.4 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift (at ends)2522 kgReference
Rear lift (at 24"/610mm)2100 kgReference
Rear Armstelescopic stabilizers and link endsReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@2205Reference
Power at rated PTO speed59.2 kWReference
Capacities
ROPS Fuel90.1 LReference
Cab Fuel110.1 LReference
Dimensions
Wheelbase225 cmReference
Weight5675 to 6750 poundsReference
Front tire7.50-18Reference
2WD Rear tire12.4-24Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 12.4-24Reference
2WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference
Lawn/turf front9.5L-15 (2WD)Reference
Lawn/turf rear18.4-26 (2WD)Reference
Industrial front27x8.50-15 (4WD)Reference
Industrial rear15-19.5 (4WD)Reference
2WD Length387 cmReference
4WD Length384 cmReference
Width198 cmReference
Height (ROPS)249 cmReference
Height (cab)252 cmReference
Clearance (front axle)50 cmReference
2WD Front tread144 to 203 cmReference
4WD Front tread151 to 162 cmReference
Rear tread151 to 192 cmReference
2WD ROPS2574 kgReference
4WD ROPS2794 kgReference
2WD Cab2839 kgReference
4WD Cab3061 kgReference
Kubota M9000 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Battery CCA1000Reference
Battery volts12Reference
Attachment overview

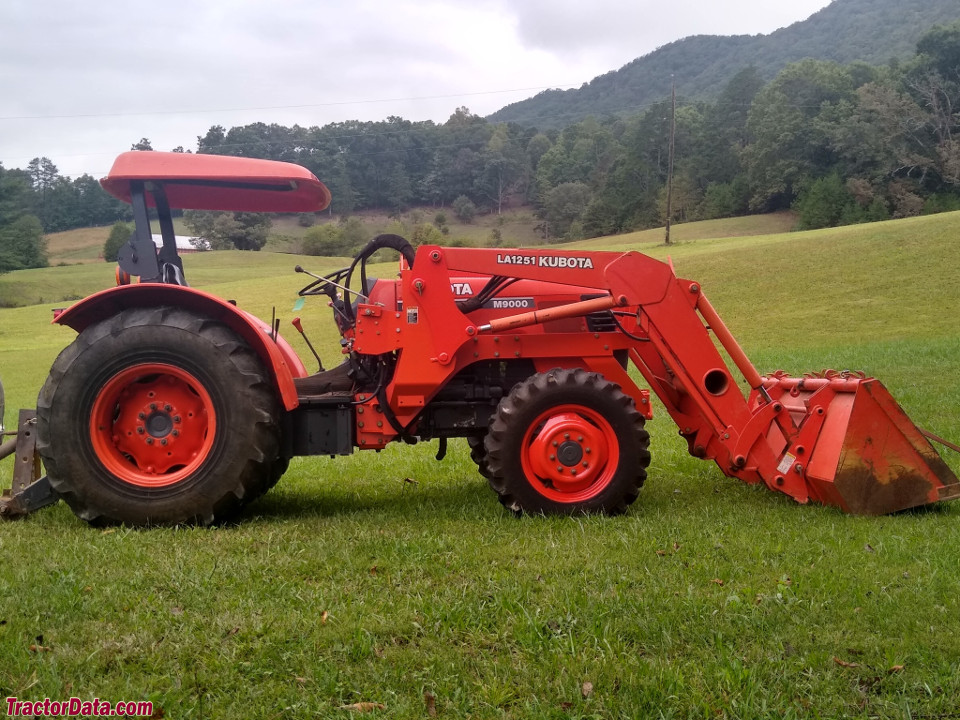

Kubota LA1251 loaderReference
Kubota LA1301 loaderReference
Test results
Diesel 8-speed 4WD10/1998Link: OCED Tractor Test 1805 fileReference
PTO performanceReference
Fuel use20.4 l/hourReference
Fuel use18.5 l/hourReference
Drawbar performanceReference
Max pull4075 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
